L60058B
SKU: L60058B
MPN: L60058B
Key specs
View all- Color
- Green
- Material
- Copper
- Size
- L=4.25 - W=1.71 - OD=1.18 - ID=.925
- Type
- Long Barrel - One Hole - Belled End
- Voltage Rating
- 600 V
Description
Product overview

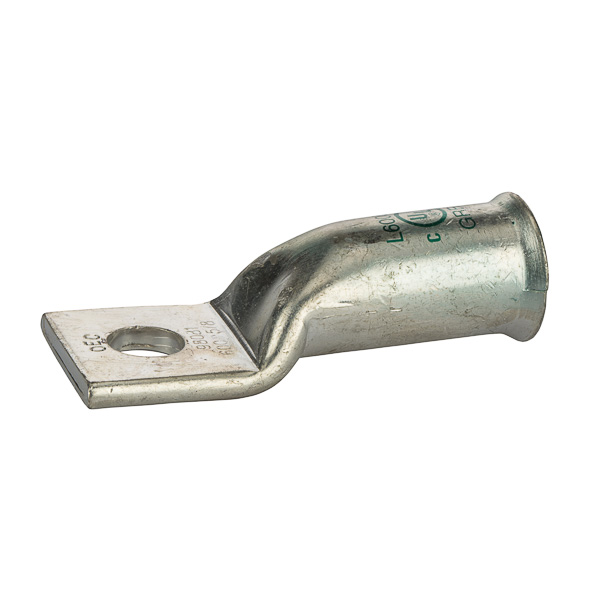

1 Hole Long Barrel Copper Compression Lug for Flexible Copper Cable 600 MCM- 5/8" Bolt Compression lugs for flexible copper cables are connects that have a gentle, continuous flared end to ensure ease of cable insertion of flexible and extra flexible cables such as locomotive, welding, mining cable and more. The flared end also reduces pressure on the cable strands after installation and protects them from chafing and breakage as a result of cable movement. Tin-plated for corrosion resistance. R...
1 Hole Long Barrel Copper Compression Lug for Flexible Copper Cable 600 MCM- 5/8" Bolt Compression lugs for flexible copper cables are connects that have a gentle, continuous flared end to ensure ease of cable insertion of flexible and extra flexible cables such as locomotive, welding, mining cable and more. The flared end also reduces pressure on the cable strands after installation and protects them from chafing and breakage as a result of cable movement. Tin-plated for corrosion resistance. Rated 600 volts for copper cables only. Single mounting hole.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI L60058B CU CMP Lug Long 600 MCM
- Invoice description
- CU CMP Lug Long 600 MCM 5/8 Bolt-Bell
Specifications
- UPC
- 662381337115
- Color
- Green
- Material
- Copper
- Size
- L=4.25 - W=1.71 - OD=1.18 - ID=.925
- Type
- Long Barrel - One Hole - Belled End
- Voltage Rating
- 600 V
- Cable Size
- 600 MCM (STR)
- Color
- Green
- Environmental Conditions
- 90 C
- Material
- Copper
- Mounting
- 5/8 Mounting Hole
- Number Of Holes
- 1
- Size
- L=4.25 - W=1.71 - OD=1.18 - ID=.925
- Standard
- UL486
- Stud Size
- 0.625 in
- Sub Brand
- Copper Compression
- Type
- Long Barrel - One Hole - Belled End
- Voltage Rating
- 600 V
