L6N

SKU: L6N

MPN: L6N

Key specs

View all
Color
Blue
Material
Copper
Size
L=4.09 - W=.870 - OD=.300 - ID=.200
Type
Long Barrel - Two Hole
Voltage Rating
600 V

Description

Product overview

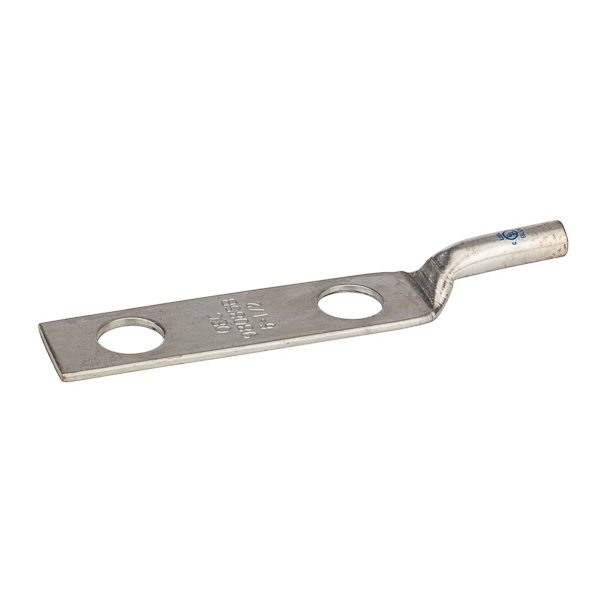

2 Hole Long Barrel Copper Compression Lug 6 AWG - 1/2" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.

2 Hole Long Barrel Copper Compression Lug 6 AWG - 1/2" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.

Manufacturer highlights

Additional manufacturer notes

Feed description
NSI L6N CU CMP Lug Long 6 AWG Nema
Invoice description
CU CMP Lug Long 6 AWG Nema Mtg Spac

Specifications

UPC
662381035011
Color
Blue
Material
Copper
Size
L=4.09 - W=.870 - OD=.300 - ID=.200
Type
Long Barrel - Two Hole
Voltage Rating
600 V
Cable Size
# 6 AWG (STR)
Color
Blue
Environmental Conditions
90 C
Material
Copper
Mounting
1/2 Mounting Holes
Number Of Holes
2
Size
L=4.09 - W=.870 - OD=.300 - ID=.200
Standard
UL486
Stud Size
0.5 in
Sub Brand
Copper Compression
Type
Long Barrel - Two Hole
Voltage Rating
600 V
