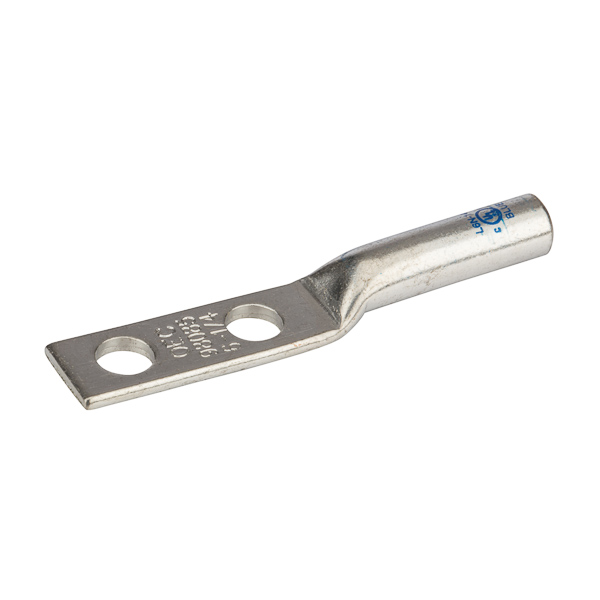

2 Hole Long Barrel Copper Compression Lug 6 AWG - 1/4

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

L6N-143

Manufacturer
Nsi Industries

$1,103.97 / EA

Available to order

Local stock: 0
Lead time: over 7 working days

2 Hole Long Barrel Copper Compression Lug 6 AWG - 1/4" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.

2 Hole Long Barrel Copper Compression Lug 6 AWG - 1/4" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.

150

UPC
662381034984
Color:
Blue
Material:
Copper
Size:
L=2.64 - W=.420 - OD=.300 - ID=.200 IN
Type:
Long Barrel - Two Hole
Voltage Rating:
600 V
Cable Size:
# 6 AWG (STR)
Color:
Blue
Environmental Conditions:
90
Material:
Copper
Mounting:
1/4 Mounting Holes
Number Of Holes:
2
Size:
L=2.64 - W=.420 - OD=.300 - ID=.200 IN
Standard:
UL486
Stud Size:
0.25 in
Sub Brand:
Copper Compression
Type:
Long Barrel - Two Hole
Voltage Rating:
600 V
