$39.56 / EA
Local stock: 0
Lead time:
over 7 working days
1-1/4" Threaded LB Type Rigid Conduit Bodies - Hot Dip Galvanized
1-1/4" Threaded LB Type Rigid Conduit Bodies - Hot Dip Galvanized
Topaz�s high quality line of conduit bodies and covers permit access to conductors for maintenance,...150
Topaz�s high quality line of conduit bodies and covers permit access to conductors for maintenance, make 90� bends in the conduit system and connect and change direction of conduit runs. Ideal for interior or exterior projects of any scope, our conduit bodies and covers are offered in malleable iron, strengthened with our Hot Dip Galvanized finish in trade sizes from 1/2� through 4�.The Topaz Rigid LB Type Conduit Body�s performance and integrity is assured through our Hot Dip Galvanizing process, which provides superior, long lasting protection against corrosion from inclement weather conditions. Designed for use on infrastructure projects including bridges, tunnels and railways; meets project specifications for the Department of Transportation and Mass Transit.Conforms to finish thickness ASTM A123/123M; UL514A & UL514D listed; NEMA FB1 compliant and meets Federal Spec. A-A-50563.
- Hot dip galvanized finish provides superior protection against severe environmental factors
- Hot dip galvanized finish provides superior protection against severe environmental factors
- UPC
- 751338866164
- UNSPSC
- 39131708
- Country of Origin
- MUL
- Material:
- Malleable Iron
- Type:
- LB Type Conduit Body
- Capacity:
- 32.3 CU.IN
- Connection:
- Female Threaded
- Connectors (IN):
- Female Threaded IN
- Finish:
- Hot-Dip Galvanize
- Form:
- LB
- Height:
- 3.49 in
- Height (IN):
- 3.49 IN
- Hub Size:
- 1.25 in
- Label Description:
- RIGID CONDUIT BODY- LB TYPE- HOT DIP GALVANIZED
- Length:
- 8.12 in
- Material:
- Malleable Iron
- Mounting:
- Wall Mount
- Nominal Length Inches:
- 6.28
- Number of Conductors:
- 3
- Size (trade) (IN):
- 1-1/4" IN
- Standard:
- UL E195124 Listed, ASTM A123/123M, UL514A and UL514D, NEMA FB1, Federal Specification A-A-50563
- Type:
- LB Type Conduit Body
- WebShop Width (IN):
- 2.52 IN
- Width:
- 2.52 in
- Wire Size:
- 2 AWG
Recently Viewed
-
LB4MHDG
TOPAZ ELECTRIC
1-1/4" Threaded LB Type Rigid Conduit Bodies - Hot Dip Galvanized
See more details -
HC6W30
BRYANT ELECTRIC

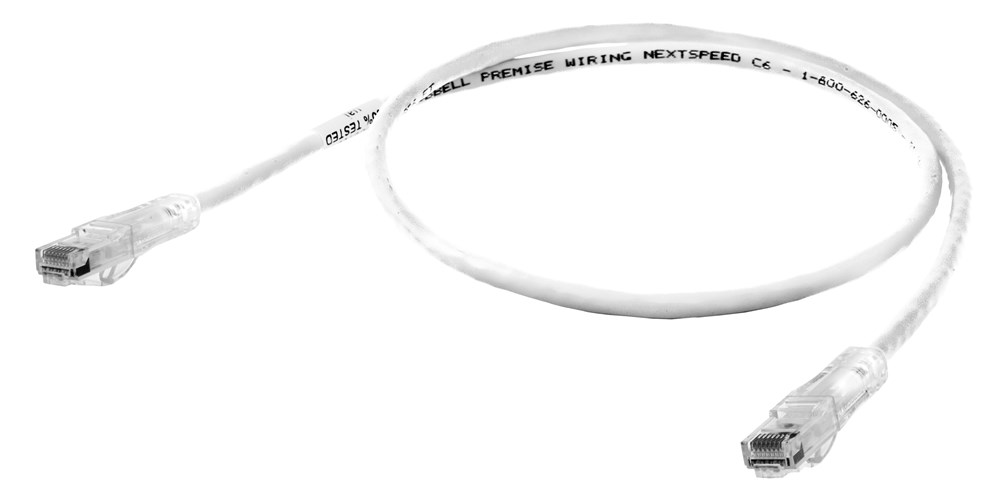

Hubbell Premise Wiring Products, Copper Solutions, Patch Cords,NEXTSPEED, Cat 6, Slim, 30' Length, White
See more details -
MB3X1RW
PECO FASTENERS & ELECTRICAL SUPPLIES

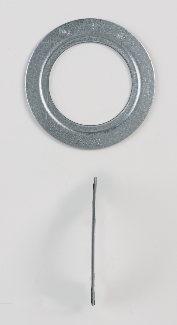

PECO FASTENERS 3 X 1 REDUCE WASHER 10 PER BOX
