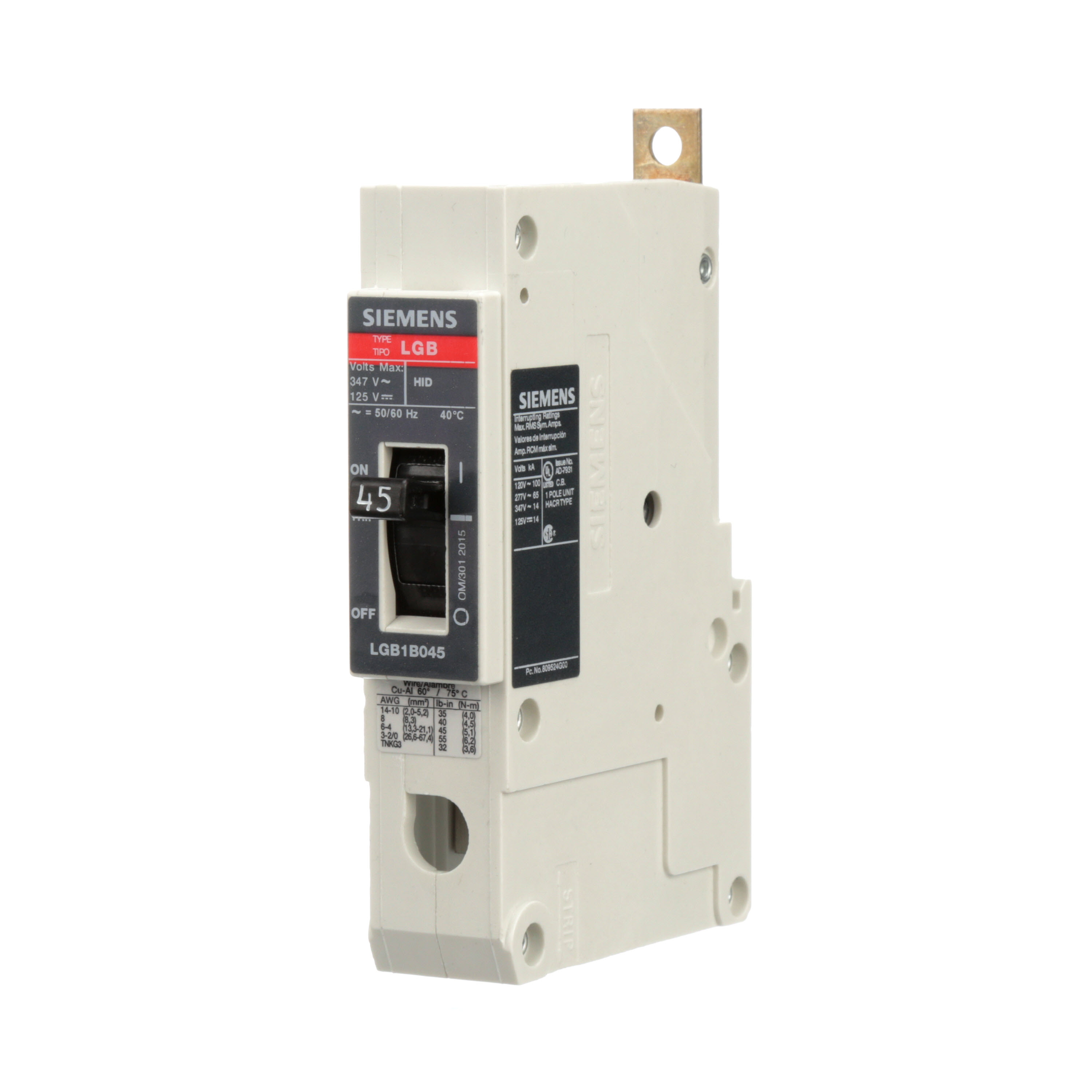

SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED LGB FRAME WITH VERY HIGH BREAKING CAPACITY. 45A 1-POLE (14KAIC AT 347V) (65KAIC AT 277V). SPECIAL FEATURES MOUNTS ON PANELBOARD, LOAD SIDELUGS ONLY (TC1GG20) WIRE RANGE 8 - 1/0 AWS (CU/AL). DIMENSIONS (W x H x D) IN 1x 5.4 x 2.8.

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

LGB1B045B

$983.96 / EA

manufacturer discounts
learn about discounts

  • $882.17 for $1,500.00+
  • $848.24 for $2,500.00+
  • $814.31 for $3,500.00+
Available to order

Local stock: 0
Lead time: over 7 working days

SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED LGB FRAME WITH VERY HIGH BREAKING CAPACITY. 45A 1-POLE (14KAIC AT 347V) (65KAIC AT 277V). SPECIAL FEATURES MOUNTS ON PANELBOARD, LOAD SIDELUGS ONLY (TC1GG20) WIRE RANGE 8 - 1/0 AWS (CU/AL). DIMENSIONS (W x H x D) IN 1x 5.4 x 2.8.

SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED LGB FRAME WITH VERY HIGH BREAKING CAPACITY. 45A 1-POLE (14KAIC AT 347V) (65KAIC AT 277V). SPECIAL FEATURES MOUNTS ON PANELBOARD, LOAD SIDELUGS ONLY (TC1GG20) WIRE RANGE 8 - 1/0 AWS (CU/AL). DIMENSIONS (W x H x D) IN 1x 5.4 x 2.8.

150

UPC
887621219970
UNSPSC
39121601
Country of Origin
MX
Number Of Poles:
1
Continuous current / rated value:
45 A
Depth [in]:
2.8 in
Design of the overload release:
THERMAL-MAGNETIC
Design of the product:
MOLDEDCASECIRCUITBREAKER
Height [in]:
5.4 in
Mounting type:
PANELBOARDBUS
Number Of Poles:
1
Standard:
UL/CSA/IEC/NOM
Suitability for operation:
ELECTRICALDISTRIBUTION
Tripping characteristic class:
VERYHIGH
Voltage / between phase and Ground (GND) / rated value:
347 V
Width [in]:
1 in
