LL1SSCG

Manufacturer
Topaz Electric

$3.46 / EA

In stock (0)
Lead time: over 7 days
may be longer on small orders

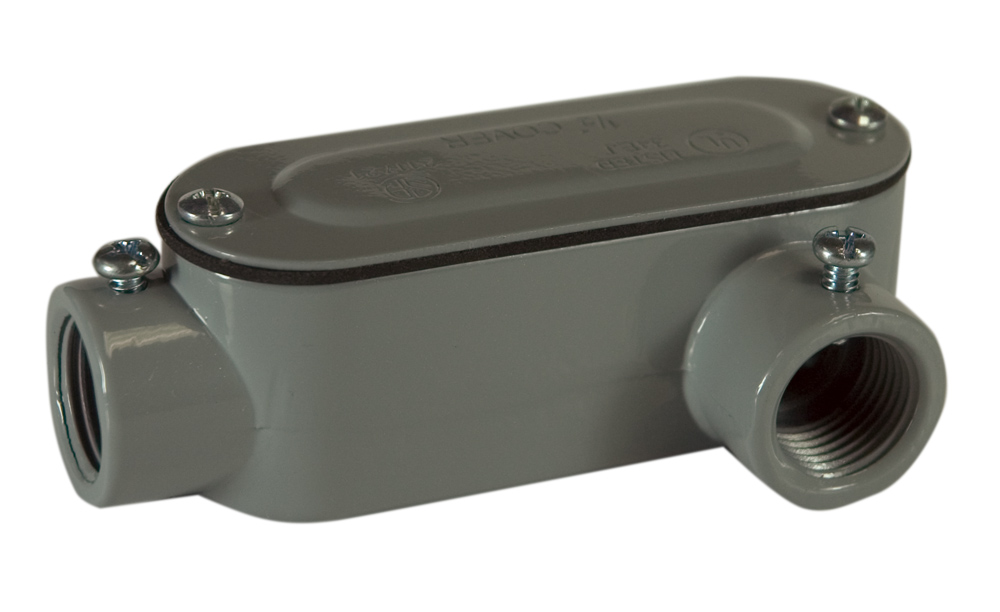

1/2" EMT & Rigid Combo LL Type Aluminum Conduit Bodies with Covers & Gaskets

1/2" EMT & Rigid Combo LL Type Aluminum Conduit Bodies with Covers & Gaskets

Topaz�s EMT and Rigid combo LL type Conduit Body, with Cover and Gasket, is manufactured from corros...150

Topaz�s EMT and Rigid combo LL type Conduit Body, with Cover and Gasket, is manufactured from corrosion resistant aluminum. LL type conduit bodies have a hub on one end and one on the left side, provide easy access for splicing and can correct and change direction of conduit runs. Domed cover allows for additional wiring space; NEMA FB 1 rated for wet locations, use with threaded rigid metal conduit only.Roomy interior allows for maximum wiring space, smooth, rounded integral bushings in hubs offers protection for conductor insulation. Excellent ground continuity and corrosion resistance; lightweight aluminum construction; UL listed; available in sizes from 1/2� to 2�.

  • Combination C type with cover and gasket
  • NPT tapered hubs
  • Suitable for use in concrete
  • NEMA FB 1 rated for wet locations use with threaded rigid metal conduit only
  • Combination C type with cover and gasket
  • NPT tapered hubs
  • Suitable for use in concrete
  • NEMA FB 1 rated for wet locations use with threaded rigid metal conduit only
UPC
751338837744
UNSPSC
39131708
Country of Origin
MUL
Material:
Die-Cast Aluminum
Type:
LL Type Combo Conduit Body
Connection:
1/2 FNPT IN
Connectors (IN):
1/2 FNPT IN
Cover Material:
Stamped Steel
For Use With:
Rigid/EMT/IMC Conduit
Form:
LL
Gasket Material:
Neoprene Rubber
Height:
1.31 in
Height (IN):
1.31 IN
Hub Size:
0.5 in
Label Description:
EMT & RIGID CONDUIT BODY - LL TYPE W/ COVER & GASKET
Length:
4.56 in
Material:
Die-Cast Aluminum
Mounting:
Wall Mount
Nominal Length Inches:
11-3/4
Number of Conductors:
1
Screw Material:
Steel
Size (IN):
1/2" IN
Size (trade) (IN):
1/2" IN
Standard:
UL E170258, CSA Certified, UL 514B, Federal Specification A-A-50552, NEMA/ANSI FB-1, Military Specification Number W-F-406D, W-F-406E, W-F-408D, W-S-610D
Type:
LL Type Combo Conduit Body
WebShop Width (IN):
2.06 IN
Width:
2.06 in
Wire Size:
6 AWG
