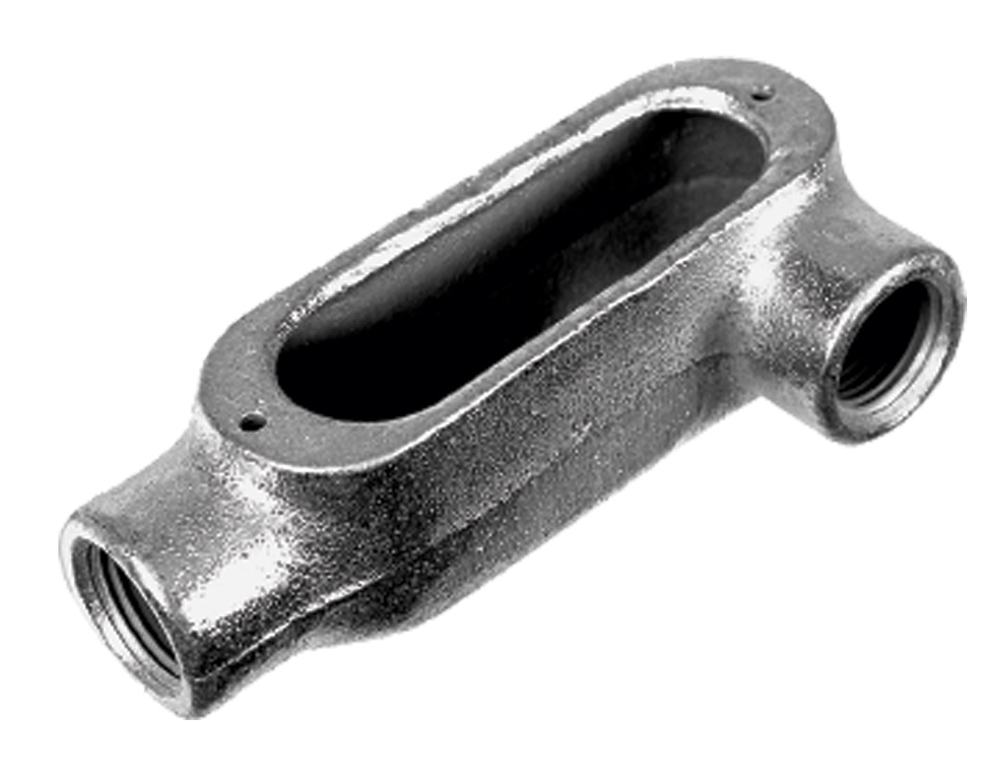

3/4"Malleable Iron Rigid Threaded Type LL Conduit Bodies
3/4"Malleable Iron Rigid Threaded Type LL Conduit Bodies
Topaz�s Malleable Iron Rigid Threaded type LL Conduit Body is constructed to offer unmatched high te...150
Topaz�s Malleable Iron Rigid Threaded type LL Conduit Body is constructed to offer unmatched high tensile strength and ductility. Strong and resilient malleable iron fabrication is resistant to damage from corrosion and impact. LL type conduit bodies permit 90� left bends in conduit systems, provide easy access for splicing and can correct and change direction of conduit runs. Roomy interior allows for maximum wiring space, smooth, rounded integral bushings in hubs offers protection for conductor insulation. Available in 1/2� to 4� sizes; UL listed.
- NPT tapered hubs
- Suitable for use in concrete
- NPT tapered hubs
- Suitable for use in concrete
- UPC
- 751338211506
- UNSPSC
- 39131708
- Country of Origin
- MUL
- Material:
- Malleable Iron
- Type:
- LL Type Conduit Body
- Capacity:
- 7.5 CU.IN
- Connection:
- 3/4 FNPT IN
- Connectors (IN):
- 3/4 FNPT IN
- Finish:
- Zinc Plated
- For Use With:
- Rigid Conduit
- Form:
- LL
- Height:
- 1.62 in
- Height (IN):
- 1.62 IN
- Hub Size:
- 0.75 in
- Label Description:
- RIGID CONDUIT BODY- LL TYPE
- Length:
- 5.31 in
- Material:
- Malleable Iron
- Mounting:
- Wall Mount
- Nominal Length Inches:
- 9.25
- Number of Conductors:
- 3
- Size (IN):
- 3/4" IN
- Size (trade) (IN):
- 3/4" IN
- Standard:
- UL E195124, CSA Certified, UL 514B, Federal Specification A-A-50553, NEMA/ANSI FB-1, Military Specification Number W-F-406D, W-F-406E, W-F-408D, W-S-610D
- Type:
- LL Type Conduit Body
- WebShop Width (IN):
- 2.23 IN
- Width:
- 2.23 in
- Wire Size:
- 3
