$5.34 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

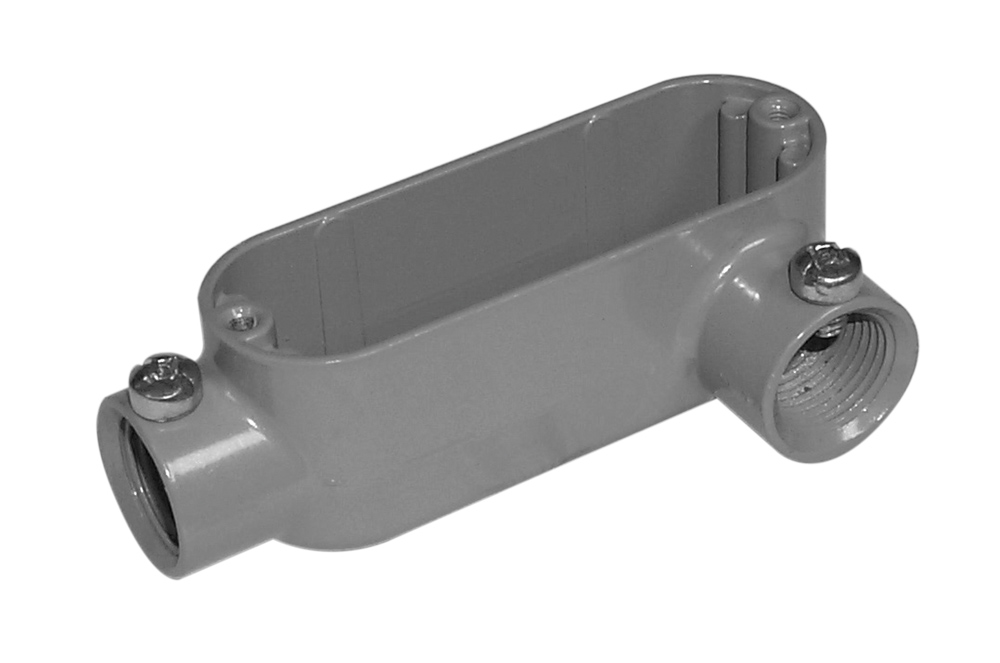

1" EMT & Rigid LL Type Combination Conduit Body
1" EMT & Rigid LL Type Combination Conduit Body
Topaz�s EMT and Rigid combo LL type Conduit Body is constructed from naturally corrosion resistant a...150
Topaz�s EMT and Rigid combo LL type Conduit Body is constructed from naturally corrosion resistant aluminum. LL type conduit bodies have a hub on one end and one on the left side, provide easy access for splicing and can correct and change direction of conduit runs. Roomy interior allows for maximum wiring space, smooth, rounded integral bushings in hubs offers protection for conductor insulation. Excellent ground continuity and corrosion resistance; lightweight aluminum construction; flat back design for easy, flat mounting against surface. UL listed; available in sizes from 1/2� to 2�.
- Combination LL type
- NPT tapered hubs
- Suitable for use in concrete
- NEMA FB 1 rated for wet locations use with threaded rigid metal conduit only
- Combination LL type
- NPT tapered hubs
- Suitable for use in concrete
- NEMA FB 1 rated for wet locations use with threaded rigid metal conduit only
- UPC
- 751338210622
- UNSPSC
- 39131708
- Country of Origin
- MUL
- Material:
- Die-Cast Aluminum
- Type:
- LL Type Combo Conduit Body
- Connection:
- 1 FNPT IN
- Connectors (IN):
- 1 FNPT IN
- For Use With:
- Rigid/EMT/IMC Conduit
- Form:
- LL
- Height:
- 1.88 in
- Height (IN):
- 1.88 IN
- Hub Size:
- 1 in
- Label Description:
- EMT & RIGID CONDUIT BODY - LL TYPE
- Length:
- 6.25 in
- Material:
- Die-Cast Aluminum
- Mounting:
- Wall Mount
- Nominal Length Inches:
- 5.31
- Number of Conductors:
- 3
- Size (IN):
- 1" IN
- Size (trade) (IN):
- 1" IN
- Standard:
- UL E170258, CSA Certified, UL 514B, Federal Specification A-A-50563, NEMA/ANSI FB-1, Military Specification Number W-F-406D, W-F-406E, W-F-408D, W-S-610D
- Threaded hub (IN):
- 1 IN
- Type:
- LL Type Combo Conduit Body
- WebShop Width (IN):
- 2.50 IN
- Width:
- 2.5 in
- Wire Size:
- 6 AWG
APPLB107
$354.05 /ea
FM7 UNILETS Type LB Conduit Outlet Body, Hub Size: 4 IN, Form: 7, Length: 12.69 IN, Height: 7.06 IN, Material: Grayloy-Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Color: Gray, Connection: Tapered Female Th
| Attributed Data | Included |
|---|---|
| Color | Gray Yes |
| Connection | Tapered Female Threaded Yes |
| Finish | Zinc Electroplate/Chromate/Epoxy Powder Coat Yes |
| Form | 7 Yes |
| Material | Grayloy-Iron Yes |
| Standard | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 Yes |
| Sub Brand | UNILETS Yes |
| Type | Type LB Conduit Outlet Body Yes |
APPLB50A
$22.96 /ea
Form 85 UNILETS Type LB Conduit Outlet Body, Hub Size: 1/2 IN, Form: 85, Length: 4.31 IN, Height: 2.06 IN, Material: Pressure Cast Aluminum, Finish: Epoxy Powder Coat, Connection: Tapered Female Threaded, Standard: UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1, For Use With Rigid Steel, Rigid Aluminum Conduit, IMC And EMT
| Attributed Data | Included |
|---|---|
| Connection | Tapered Female Threaded Yes |
| Finish | Epoxy Powder Coated Yes |
| Form | 85 Yes |
| Material | Pressure Cast Aluminum Yes |
| Standard | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 Yes |
| Sub Brand | UNILETS Yes |
| Type | Type LB Conduit Outlet Body Yes |
APPLB75A
$28.07 /ea
Form 85 UNILETS Type LB Conduit Outlet Body, Hub Size: 3/4 IN, Form: 85, Length: 5.13 IN, Height: 2.44 IN, Material: Pressure Cast Aluminum, Finish: Epoxy Powder Coat, Connection: Tapered Female Threaded, Standard: UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1, For Use With Rigid Steel, Rigid Aluminum Conduit, IMC And EMT
| Attributed Data | Included |
|---|---|
| Connection | Tapered Female Threaded Yes |
| Finish | Epoxy Powder Coated Yes |
| Form | 85 Yes |
| Material | Pressure Cast Aluminum Yes |
| Standard | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 Yes |
| Sub Brand | UNILETS Yes |
| Type | Type LB Conduit Outlet Body Yes |
| Product Image |
|
|
|
|---|---|---|---|
|
APPLB107
FM7 UNILETS Type LB Conduit Outlet Body, Hub Size: 4 IN, Form: 7, Length: 12.69 IN, Height: 7.06 IN, Material: Grayloy-Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Color: Gray, Connection: Tapered Female Th
$354.05 / EA
|
APPLB50A
Form 85 UNILETS Type LB Conduit Outlet Body, Hub Size: 1/2 IN, Form: 85, Length: 4.31 IN, Height: 2.06 IN, Material: Pressure Cast Aluminum, Finish: Epoxy Powder Coat, Connection: Tapered Female Threaded, Standard: UL 514A, UL 514B, UL File Number E2...
$22.96 / EA
|
APPLB75A
Form 85 UNILETS Type LB Conduit Outlet Body, Hub Size: 3/4 IN, Form: 85, Length: 5.13 IN, Height: 2.44 IN, Material: Pressure Cast Aluminum, Finish: Epoxy Powder Coat, Connection: Tapered Female Threaded, Standard: UL 514A, UL 514B, UL File Number E2...
$28.07 / EA
|
|
| Attributed Data | |||
| Color | Gray Gray | ||
| Connection | Tapered Female Threaded Tapered Female Threaded | ||
| Finish | Epoxy Powder Coated Epoxy Powder Coated | Zinc Electroplate/Chromate/Epoxy Powder Coat Zinc Electroplate/Chromate/Epoxy Powder Coat | |
| Form | 7 7 | 85 85 | |
| Height | 2.06 in 2.06 in | 2.44 in 2.44 in | 7.06 in 7.06 in |
| Hub Size | 0.5 in 0.5 in | 0.75 in 0.75 in | 4 in 4 in |
| Length | 4.31 in 4.31 in | 5.13 in 5.13 in | 12.69 in 12.69 in |
| Material | Grayloy-Iron Grayloy-Iron | Pressure Cast Aluminum Pressure Cast Aluminum | |
| Standard | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 | ||
| Sub Brand | UNILETS UNILETS | ||
| Type | Type LB Conduit Outlet Body Type LB Conduit Outlet Body | ||
| Add a product to the cart | Show more details | Show more details | Show more details |
