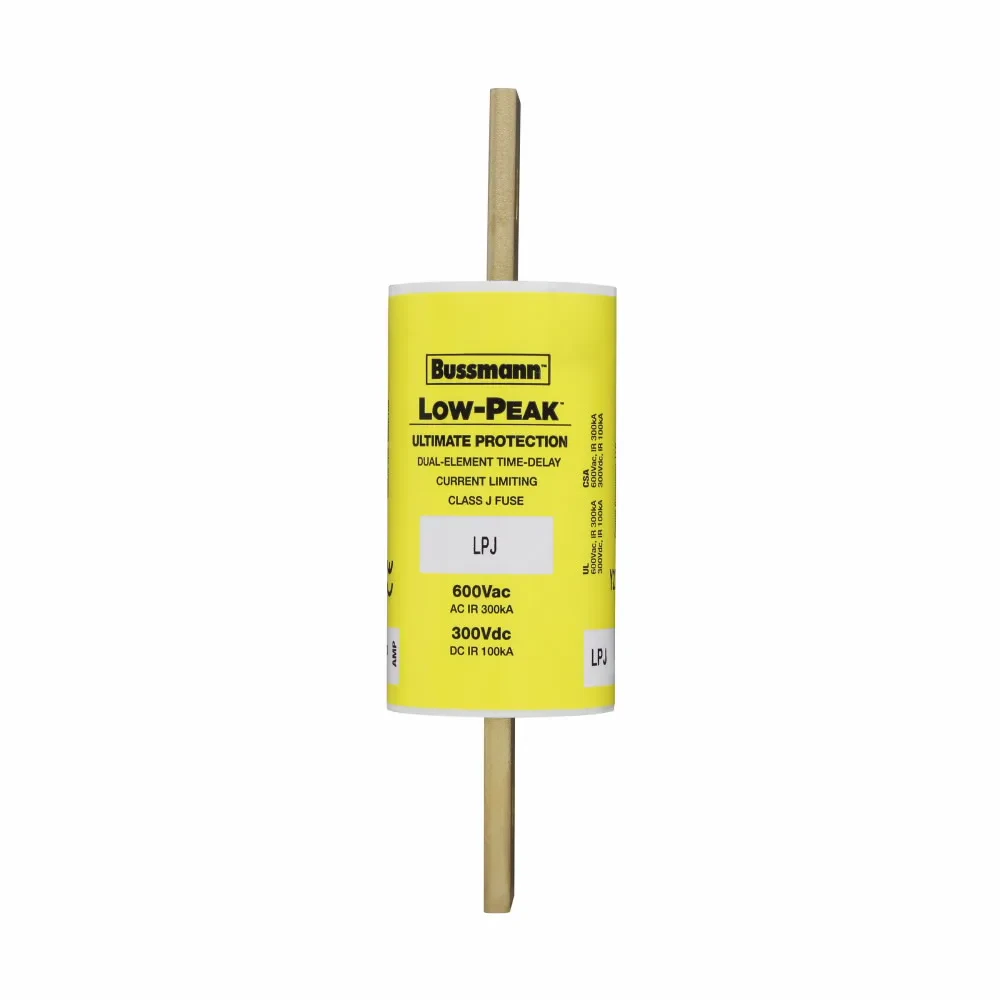

LPJ-125SP
SKU: LPJ-125SP
MPN: LPJ-125SP
Key specs
View all- Amperage Rating
- 125 A
- Size
- 1.63 In Diameter X 5.75 In Length
- Type
- Fuse
- Voltage Rating
- 600//300 VAC//VDC
Description
Product overview
Eaton Bussmann series LPJ fuse, Low-peak fuse, 125 A, Dual, Class J, Non-indicating, Bolted blade end x bolted blade end, Time delay,Current-limiting, 10 sec at 500%, 300 kAIC at 600 V,100 kAIC Vdc, Standard, 600 V, 300 Vdc
Eaton Bussmann series LPJ fuse, Low-peak fuse, 125 A, Dual, Class J, Non-indicating, Bolted blade end x bolted blade end, Time delay,Current-limiting, 10 sec at 500%, 300 kAIC at 600 V,100 kAIC Vdc, Standard, 600 V, 300 Vdc
Manufacturer highlights
Bussmann's UL Class J fuse products extend both our Low-Peak family of products with our LPJ_SP and LPJ_SPI dual-element, time-delay fuses as well as...
Bussmann's UL Class J fuse products extend both our Low-Peak family of products with our LPJ_SP and LPJ_SPI dual-element, time-delay fuses as well as our Limitron line offering fast-acting JKS fuses. The LPJ fuses provide industry leading 300,000 amp interrupting rating at 600Vac RMS Sym and 100kA Vdc while delivering a minimum of 10 seconds of 500% rated current ride-through performance which is ideal for sizing of high inrush loads. The LPJ products are available with optional permanent replace fuse indication. These UL Class J products in sizes 1 to 600 amps provide exceptional performance at 600 Vac and 300 Vdc (see spec sheets for specific details) in a compact size rejecting footprint
Additional manufacturer notes
- Short name
- BUSS
- Feed description
- BUSS LPJ-125SP LOW PEAK CLASS J T/D
- Invoice description
- LOW PEAK CLASS J T/D
Specifications
- UPC
- 051712523424
- UNSPSC
- 39121626
- Country of Origin
- MX
- Amperage Rating
- 125 A
- Size
- 1.63 In Diameter X 5.75 In Length
- Type
- Fuse
- Voltage Rating
- 600//300 VAC//VDC
- Amperage Rating
- 125 A
- Class
- J
- Connection
- Bolted blade end x bolted blade end
- Dimensions
- 5.7500 IN X 0.8100 IN X 2.0000 IN
- Element
- Dual
- Interrupt Rating
- 300 kAIC at 600 Vac100 kAIC Vdc
- Response Time
- 10 sec at 500%
- Size
- 1.63 In Diameter X 5.75 In Length
- Standard
- RoHS Compliant,CE Marked
- Sub Brand
- Bussmann Series
- Type
- Fuse
- Voltage Rating
- 600//300 VAC//VDC
