$7.67 / EA
Local stock: 0
Lead time:
over 7 working days

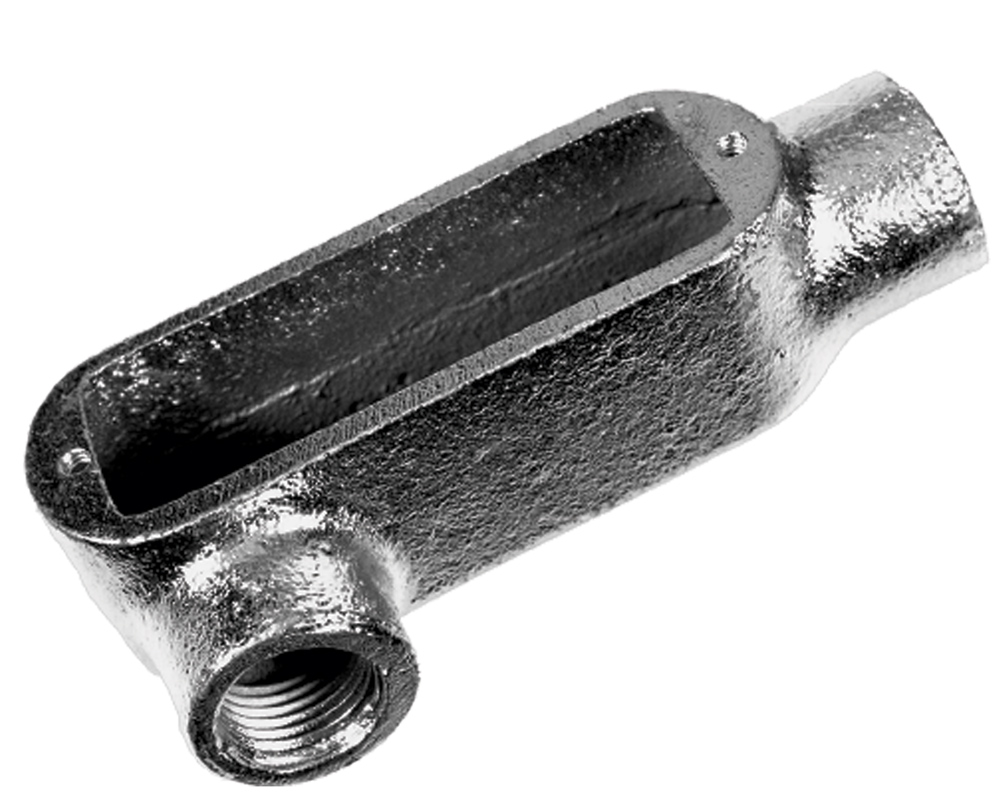

3/4" Malleable Iron Rigid Threaded Type LR Conduit Body
3/4" Malleable Iron Rigid Threaded Type LR Conduit Body
Topaz�s Malleable Iron Rigid Threaded type LR Conduit Body is constructed to offer unmatched high te...150
Topaz�s Malleable Iron Rigid Threaded type LR Conduit Body is constructed to offer unmatched high tensile strength and ductility. Strong and resilient malleable iron fabrication is resistant to damage from corrosion and impact. LR type conduit bodies permit 90� right bendsRoomy interior allows for maximum wiring space, smooth, rounded integral bushings in hubs offers protection for conductor insulation. Available in 1/2� to 4� sizes; UL listed.
- NPT tapered hubs
- Suitable for use in concrete
- NPT tapered hubs
- Suitable for use in concrete
- UPC
- 751338213500
- UNSPSC
- 39131708
- Country of Origin
- MUL
- Material:
- Malleable Iron
- Type:
- LR Type Conduit Body
- Capacity:
- 7.5 CU.IN
- Connection:
- 3/4 FNPT IN
- Connectors (IN):
- 3/4 FNPT IN
- Finish:
- Zinc Plated
- Form:
- LR
- Height:
- 1.62 in
- Height (IN):
- 1.62 IN
- Hub Size:
- 0.75 in
- Label Description:
- RIGID CONDUIT BODY- LR TYPE
- Length:
- 5.31 in
- Material:
- Malleable Iron
- Mounting:
- Wall Mount
- Nominal Length Inches:
- 10.7
- Number of Conductors:
- 3
- Size (IN):
- 3/4" IN
- Size (trade) (IN):
- 3/4" IN
- Standard:
- UL E195124, CSA Certified, UL 514B, Federal Specification A-A-50553, NEMA/ANSI FB-1, Military Specification Number W-F-406D, W-F-406E, W-F-408D, W-S-610D
- Type:
- LR Type Conduit Body
- WebShop Width (IN):
- 2.23 IN
- Width:
- 2.23 in
- Wire Size:
- 3
