LXD63B500H

SKU: LXD63B500H

MPN: LXD63B500H

Key specs

View all
Material
N/A
Number Of Poles
3
Type
LXD6
Voltage Rating
600 V

Description

Product overview

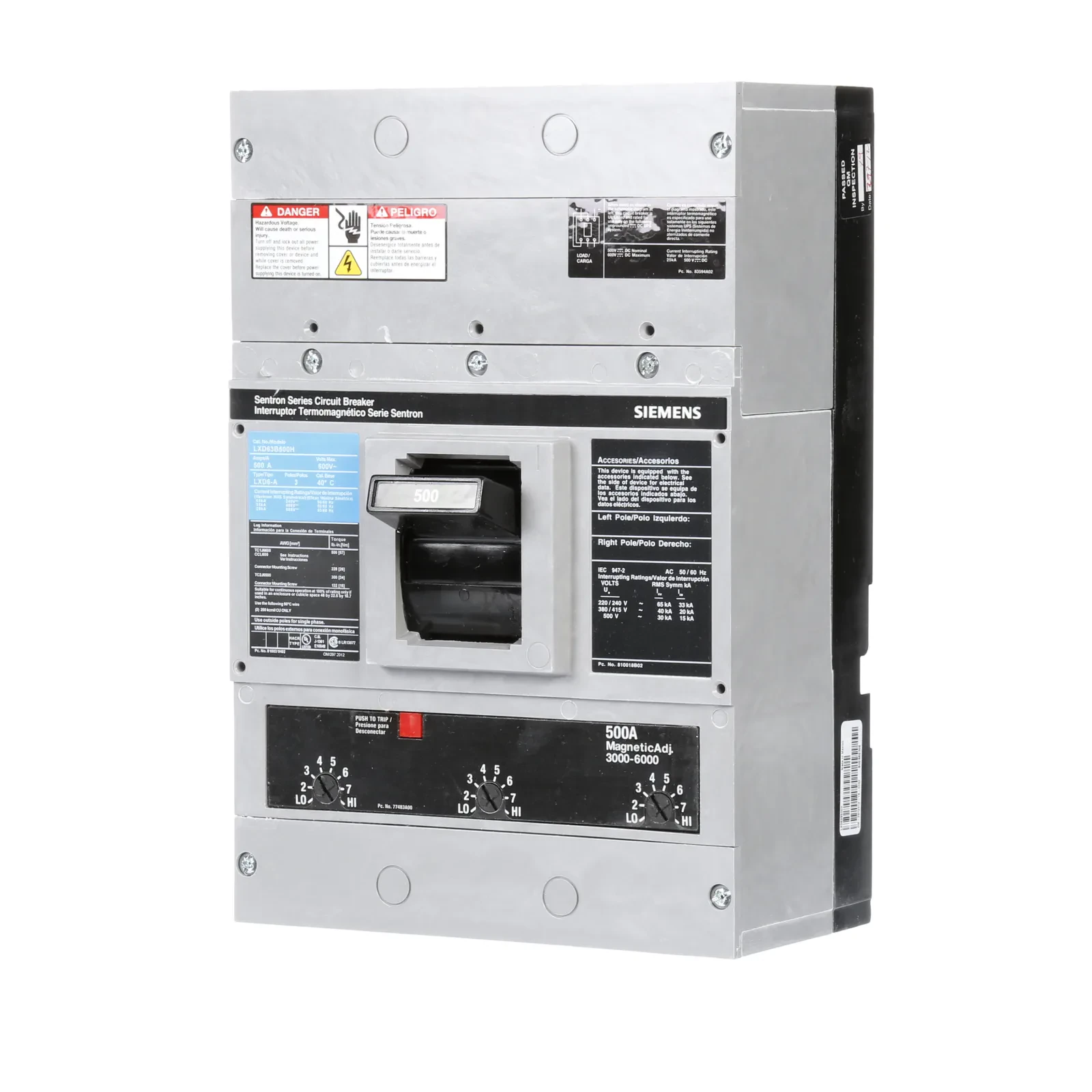

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED 100 PERCENT RATED STANDARD 40 DEG C BREAKER LD FRAME WITH STANDARD BREAKING CAPACITY. 500A 3-POLE (25KAIC AT 600V) (35KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN 7.50 x 11.0 x 4.00.

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED 100 PERCENT RATED STANDARD 40 DEG C BREAKER LD FRAME WITH STANDARD BREAKING CAPACITY. 500A 3-POLE (25KAIC AT 600V) (35KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN 7.50 x 11.0 x 4.00.

Manufacturer highlights

Additional manufacturer notes

Feed description
S-A LXD63B500H BRKR LD6 3P 600V 500
Invoice description
BRKR LD6 3P 600V 500A FX 100

Specifications

UPC
783643011168
Material
N/A
Number Of Poles
3
Type
LXD6
Voltage Rating
600 V
Actuator
Varying
Auxiliary Contacts
N/A
Connection
N/A
Enclosure
Varying
Environmental Conditions
N/A
Frame
LD
Frequency Rating
50/60 Hz
Height
13 in
Interrupt Rating
25KAIC
Length
7.000
Load Rating
N/A
Material
N/A
Number Of Poles
3
Operating Temperature
40C
Standard
UL/HACR/100% Rated
Sub Brand
Sentron
Trip Range
3000-6000
Trip Type
Thermal-Magnetic
Type
LXD6
Voltage Rating
600 V
Width
9.000
