$27.72 / BOT
In stock (0)
Lead time: over 7 days
may be longer on small orders
3M™ Scotchlok™ Color-Coded Heat Shrink Small Ring Tongue Terminal ensures an ideal fit and offers reliable performance. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands temperatures of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
3M™ Scotchlok™ Color-Coded Heat Shrink Small Ring Tongue Terminal ensures an ideal fit and offers reliable performance. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands temperatures of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
150
- Brazed-seam terminal uses blue pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
- When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
- Standard-style ring tongue fits around the stud
- Stud size 5/16 in
- Brazed-seam terminal uses blue pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
- When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
- Standard-style ring tongue fits around the stud
- Stud size 5/16 in
- UPC
- 051128589069
- UNSPSC
- 39121432
- Country of Origin
- USA
- Material:
- Heat Shrink
- Type:
- Ring
- Barrel Style:
- Brazed

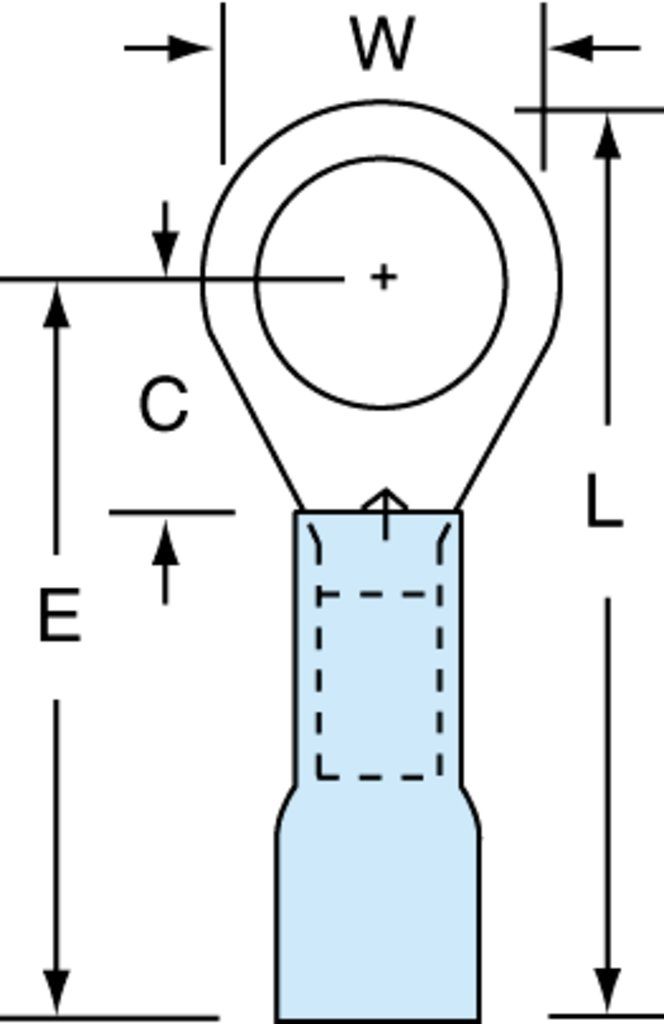

- Clearance (C):
- 0.33 Inch
- Material:
- Heat Shrink
- Number Of Terminals:
- 25 per bottle
- Standard:
- UL and CSA
- Stud Size:
- 5/16 Inch
- Sub Brand:
- Scotchlok
- Terminal Size:
- 16 - 14 AWG
- Type:
- Ring
- Width (W):
- 0.47 Inch
