MNG14-250DMIK
SKU: MNG14-250DMIK
MPN: MNG14-250DMIK
Key specs
View all- Material
- Nylon
- Type
- Disconnect
Description
Product overview

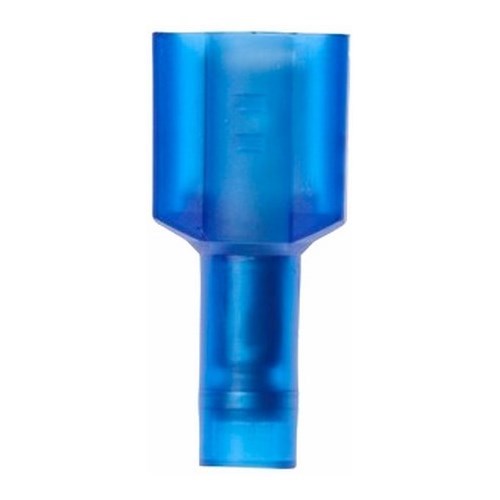

3M™ Scotchlok™ Color-Coded Male Disconnect Terminal offers superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
3M™ Scotchlok™ Color-Coded Male Disconnect Terminal offers superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
Manufacturer highlights
3M™ Scotchlok™ Color-Coded Male Disconnect Terminal attaches to the mating part with a tongue that slips over the female tab. The terminal has a butte...
3M™ Scotchlok™ Color-Coded Male Disconnect Terminal attaches to the mating part with a tongue that slips over the female tab. The terminal has a butted-seam barrel that is covered by a funnel-designed, seamless brass sleeve which serves to guide the wire into position. The nylon-sleeve is abrasion-resistant, fully insulated and flared to allow a positive grip. Its stepped design ensures mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
- Blue nylon-insulated, butted-seam barrel with a funnel-designed, seamless brass sleeve offers easy insertion of wires
- This male disconnect terminal offers excellent holding force
- Allows for quick and easy disconnect of wires
- Mates with 0.25-in wide female tab
Additional manufacturer notes
- Short name
- 3M
- Feed description
- 3M MNG14-250DMIK
- Label description
- Fully Nylon Insulated w/Insulation Grip Male Disconnect
- Invoice description
- MNG14-250DMIK
Specifications
- UPC
- 054007022497
- UNSPSC
- 39121432
- Country of Origin
- USA
- Material
- Nylon
- Type
- Disconnect
- Barrel Style
- Butted
- Fastener Orientation
- Male
- Material
- Nylon
- Number Of Terminals
- 1000 per bulk box
- Pad Width
- 0.250 Inch
- Standard
- UL and CSA
- Sub Brand
- Scotchlok
- Terminal Size
- 16 - 14 AWG
- Type
- Disconnect
- Width (W)
- 0.44 Inch
