MNG14-6FX
SKU: MNG14-6FX-3M
MPN: MNG14-6FX
Key specs
View all- Material
- Nylon
- Type
- Fork
Description
Product overview

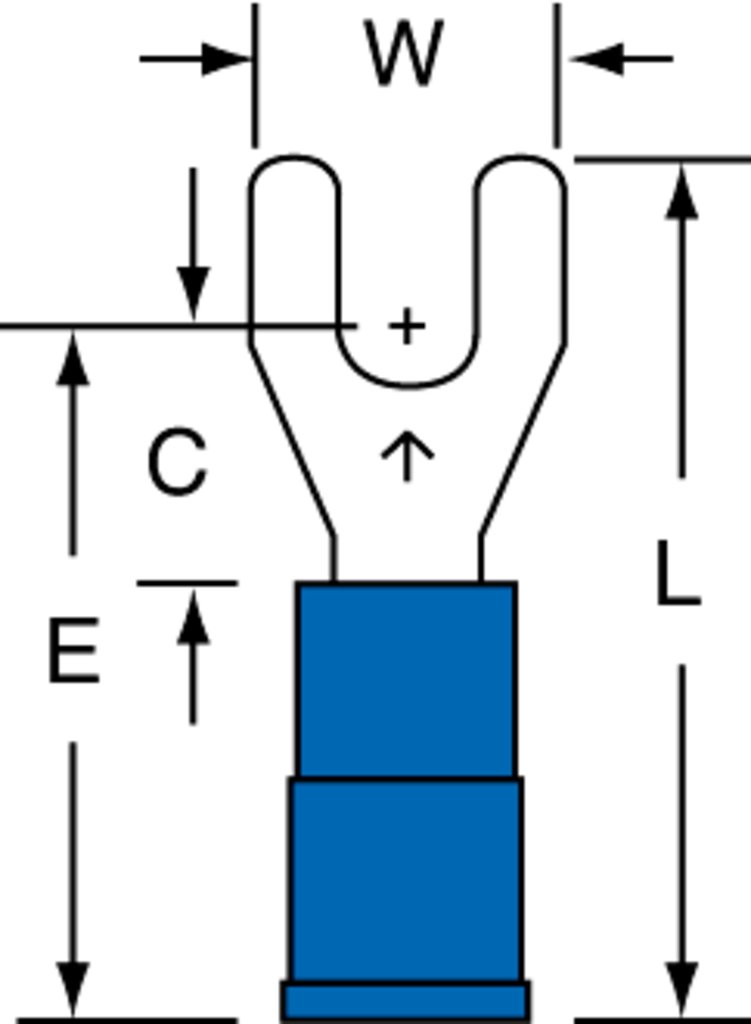

3M™ Scotchlok™ Color-Coded Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
3M™ Scotchlok™ Color-Coded Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
Manufacturer highlights
3M™ Scotchlok™ Standard Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is...
3M™ Scotchlok™ Standard Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, seamless brass sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, nylon-sleeve insulation ensures positive grip and has a stepped design for mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
- Blue nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Funnel-designed, seamless brass sleeve offers easy insertion of wires
- Wider-tongue design for use on free-standing studs
- Stud size #6
Additional manufacturer notes
- Short name
- 3M
- Feed description
- 3M MNG14-6FX MNG14-6FX NYLON FORK B
- Label description
- Fork Nylon Insulated, 100/bottle
- Invoice description
- MNG14-6FX NYLON FORK BOTTLE
Specifications
- UPC
- 051128586655
- UNSPSC
- 39121432
- Country of Origin
- USA
- Material
- Nylon
- Type
- Fork
- Barrel Style
- Butted
- Clearance (C)
- 0.29 Inch
- Material
- Nylon
- Number Of Terminals
- 100 per bottle
- Standard
- UL and CSA
- Stud Size
- 6
- Sub Brand
- Scotchlok
- Terminal Size
- 16 - 14 AWG
- Type
- Fork
- Width (W)
- 0.34 Inch
