Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$470.40 / EA
Local stock: 0
Lead time:
over 7 working days

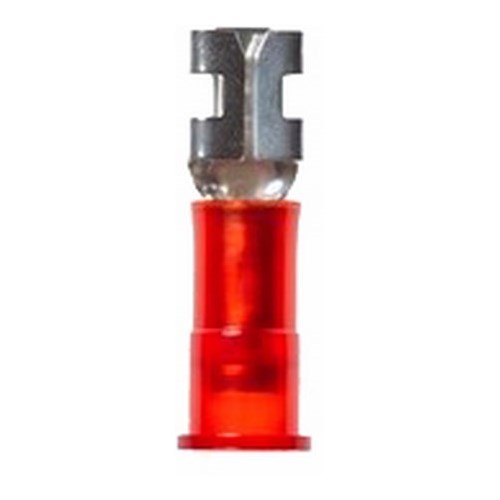

3M™ Scotchlok™ Color-Coded Standard Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.
3M™ Scotchlok™ Color-Coded Standard Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.
3M™ Scotchlok™ Color-Coded Standard Female Disconnect Terminal attaches to the mating part with a to...150
3M™ Scotchlok™ Color-Coded Standard Female Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. The terminal has a butted-seam barrel that is covered by a funnel-designed, seamless brass sleeve which serves to guide the wire into position. The nylon-sleeve is abrasion-resistant, fully insulated and flared to allow a positive grip. Its stepped design ensures mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
- Red nylon-insulated, butted-seam barrel with a funnel-designed, seamless brass sleeve offers easy insertion of wires
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- Allows for quick and easy disconnect of wires
- Mates with 0.187-in wide male tab
- Red nylon-insulated, butted-seam barrel with a funnel-designed, seamless brass sleeve offers easy insertion of wires
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- Allows for quick and easy disconnect of wires
- Mates with 0.187-in wide male tab
- UPC
- 054007024057
- UNSPSC
- 39121432
- Country of Origin
- USA
- Material:
- Nylon
- Type:
- Disconnect
- Barrel Style:
- Butted
- Fastener Orientation:
- Female
- Material:
- Nylon
- Number Of Terminals:
- 1000 per bulk box
- Pad Width:
- 0.187 Inch
- Standard:
- UL and CSA
- Sub Brand:
- Scotchlok
- Terminal Size:
- 22 - 18 AWG
- Type:
- Disconnect
