MNHU18-250DMIX
SKU: MNHU18-250DMIX
MPN: MNHU18-250DMIX
Key specs
View all- Material
- Heat Shrink
- Type
- Disconnect
Description
Product overview

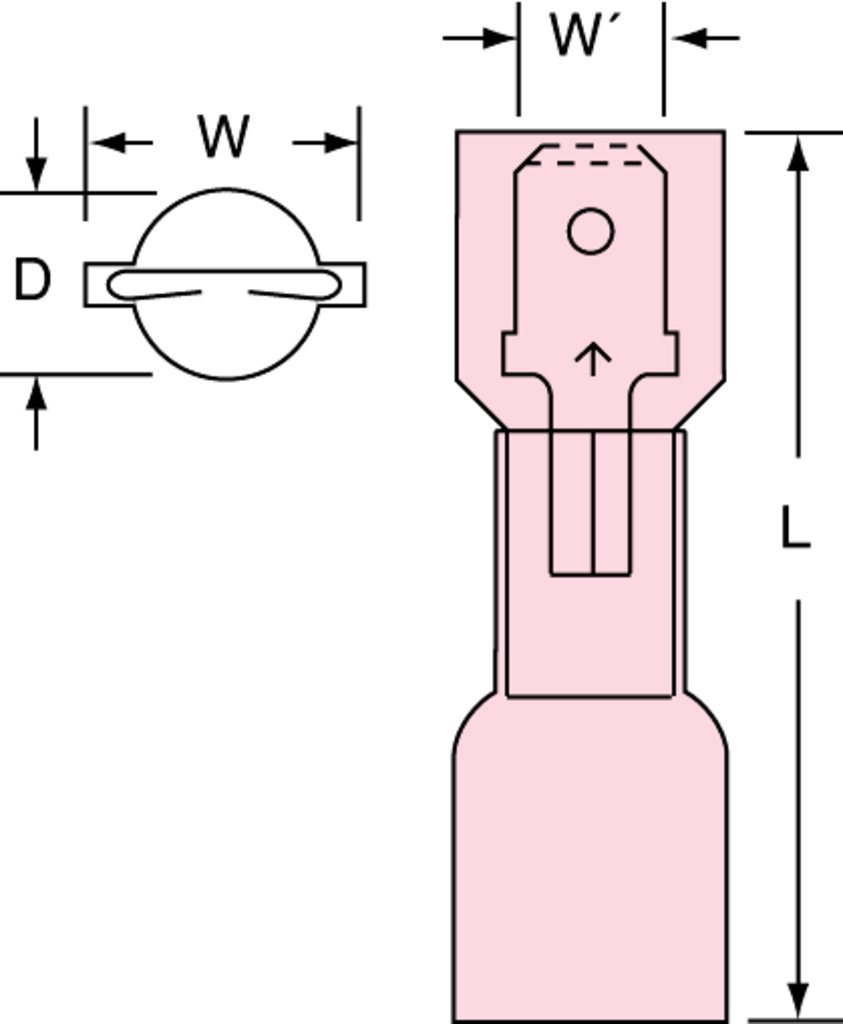

3M™ Scotchlok™ Color-Coded Heat Shrink Male Disconnect Terminal allows for quick and easy disconnect. The butted-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
3M™ Scotchlok™ Color-Coded Heat Shrink Male Disconnect Terminal allows for quick and easy disconnect. The butted-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
Manufacturer highlights
3M™ Scotchlok™ Color-Coded Heat Shrink Male Disconnect Terminal attaches to the mating part with a tongue that slips over the female tab. This versati...
3M™ Scotchlok™ Color-Coded Heat Shrink Male Disconnect Terminal attaches to the mating part with a tongue that slips over the female tab. This versatile terminal has a butted-seam barrel that is covered by a see-through, pre-insulated transparent tubing. The tubing provides seal resistance to water, salt and other contaminants when crimped and shrunk. The heat shrink tubing offers better pullout strength and strain relief when shrunk. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
- Butted-seam terminal uses red pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
- This male disconnect terminal offers excellent holding force
- Pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt when crimped and shrunk
- Mates with 0.25-in wide female tab
Additional manufacturer notes
- Short name
- 3M
- Feed description
- 3M MNHU18-250DMIX MNHU18-250DMIX MA
- Label description
- Male Disconnect Heatshrink Nylon Insulated, 25/bottle
- Invoice description
- MNHU18-250DMIX MALE DIS NYLON INS HEATSH
Specifications
- UPC
- 051128589175
- UNSPSC
- 39121432
- Country of Origin
- USA
- Material
- Heat Shrink
- Type
- Disconnect
- Barrel Style
- Butted
- Fastener Orientation
- Male
- Material
- Heat Shrink
- Number Of Terminals
- 25 per bottle
- Pad Width
- 0.25 Inch
- Sub Brand
- Scotchlok
- Terminal Size
- 22 - 18 AWG
- Type
- Disconnect
- Width (W)
- 0.44 Inch
