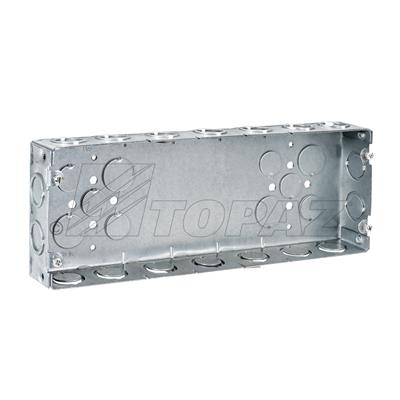

Multi-Gang Switch Boxes 5 Gang, 1-5/8" Deep
Multi-Gang Switch Boxes 5 Gang, 1-5/8" Deep
Topaz 1-5/8� deep Multi-Gang Switch Boxes can be installed in walls or ceilings for lighting fixture...150
Topaz 1-5/8� deep Multi-Gang Switch Boxes can be installed in walls or ceilings for lighting fixtures, switches, receptacles or other outlet devices and used when more than two devices or outlets are required in one box. Manufactured of galvanized steel and available in 2 thru 8 gangs with 1/2" & 3/4" KO sizes.
- 1- 5/8" deep
- Welded
- Available with 1/2" and 3/4" Concentric KO's
- Available in 2 thru 8 gangs
- 1- 5/8" deep
- Welded
- Available with 1/2" and 3/4" Concentric KO's
- Available in 2 thru 8 gangs
- UPC
- 751338019584
- UNSPSC
- 39121303
- Country of Origin
- MUL
- Material:
- Galvanized Steel
- Size:
- 1-5/8 IN
- Type:
- Multi-Gang Switch Box
- Cable Entry:
- Side, Bottom
- Construction:
- Multi-Gang Welded
- Cubic (CU-IN):
- 81 CU-IN
- Cubic Capacity:
- 81 CU.IN
- KO:
- Side, Bottom
- Knockout Size:
- 1/2 IN, 3/4 IN (Side & Bottom)
- Knockouts:
- Yes
- Label Description:
- 5 GANG MULTIGANG WELD SWITCHBOX
- Material:
- Galvanized Steel
- Mounting:
- Wall Mount, Ceiling Mount
- Number Of Outlet:
- 18 - Side, 10 - Bottom
- Number of Gangs:
- 5
- Opening Min:
- 18 - Side, 10 - Bottom
- Package Type:
- Case
- Size:
- 1-5/8 IN
- Size (IN):
- 1-5/8" IN
- Standard:
- cULus Listed E195124, RoHS Compliant
- Type:
- Multi-Gang Switch Box
- Weight:
- 20 LB/CASE
UCBB210U
$332.57 /ea
Control Station Mounting Body, Type Dead End, Number of Gangs 1, Construction One/Two Device, Number of Hubs 2, Hub Size 1 Inch, Material Fiberglass Reinforced Thermoset Polyester, Enclosure Class I Div 2 Group B C D, Class II Group E F G, Class III, Class I, Zone 2 Group IIC, NEMA 3/3R/4/4X, IP66, Size 4.06 Inch W x 5.95 Inch D x 7.56 Inch H, Mounting Feet, Used On Unicode Series Factory Sealed Control Stations and Pilot Lights, Approval UL 508/698/1604, UL (Canada and US), CSA C22.2,, Application Chemical and Petrochemical Plants, Refinery, Pulp and Paper Processing Plants, Applicable Standard CEC, IEC, NEC
UCBB250U
$332.57 /ea
Control Station Mounting Body, Type Dead End, Number of Gangs 1, Construction One/Two Device, Number of Hubs 2, Hub Size 1/2 Inch, Material Fiberglass Reinforced Thermoset Polyester, Enclosure Class I Div 2 Group B C D, Class II Group E F G, Class III, Class I, Zone 2 Group IIC, NEMA 3/3R/4/4X, IP66, Size 4.06 Inch W x 5.95 Inch D x 7.56 Inch H, Mounting Feet, Used On Unicode Series Factory Sealed Control Stations and Pilot Lights, Approval UL 508/698/1604, UL (Canada and US), CSA C22.2,, Application Chemical and Petrochemical Plants, Refinery, Pulp and Paper Processing Plants, Applicable Standard CEC, IEC, NEC
UCBB275U
$332.57 /ea
Control Station Mounting Body, Type Dead End, Number of Gangs 1, Construction One/Two Device, Number of Hubs 2, Hub Size 3/4 Inch, Material Fiberglass Reinforced Thermoset Polyester, Enclosure Class I Div 2 Group B C D, Class II Group E F G, Class III, Class I, Zone 2 Group IIC, NEMA 3/3R/4/4X, IP66, Size 4.06 Inch W x 5.95 Inch D x 7.56 Inch H, Mounting Feet, Used On Unicode Series Factory Sealed Control Stations and Pilot Lights, Approval UL 508/698/1604, UL (Canada and US), CSA C22.2,, Application Chemical and Petrochemical Plants, Refinery, Pulp and Paper Processing Plants, Applicable Standard CEC, IEC, NEC
| Product Image |
|
|
|
|---|---|---|---|
|
UCBB210U
Control Station Mounting Body, Type Dead End, Number of Gangs 1, Construction One/Two Device, Number of Hubs 2, Hub Size 1 Inch, Material Fiberglass Reinforced Thermoset Polyester, Enclosure Class I Div 2 Group B C D, Class II Group E F G, Class III,...
$332.57 / EA
|
UCBB250U
Control Station Mounting Body, Type Dead End, Number of Gangs 1, Construction One/Two Device, Number of Hubs 2, Hub Size 1/2 Inch, Material Fiberglass Reinforced Thermoset Polyester, Enclosure Class I Div 2 Group B C D, Class II Group E F G, Class II...
$332.57 / EA
|
UCBB275U
Control Station Mounting Body, Type Dead End, Number of Gangs 1, Construction One/Two Device, Number of Hubs 2, Hub Size 3/4 Inch, Material Fiberglass Reinforced Thermoset Polyester, Enclosure Class I Div 2 Group B C D, Class II Group E F G, Class II...
$332.57 / EA
|
|
