MU14-250DMHTX
SKU: MU14-250DMHTX-3M
MPN: MU14-250DMHTX
Key specs
View all- Material
- Non-Insulated
- Type
- Disconnect
Description
Product overview

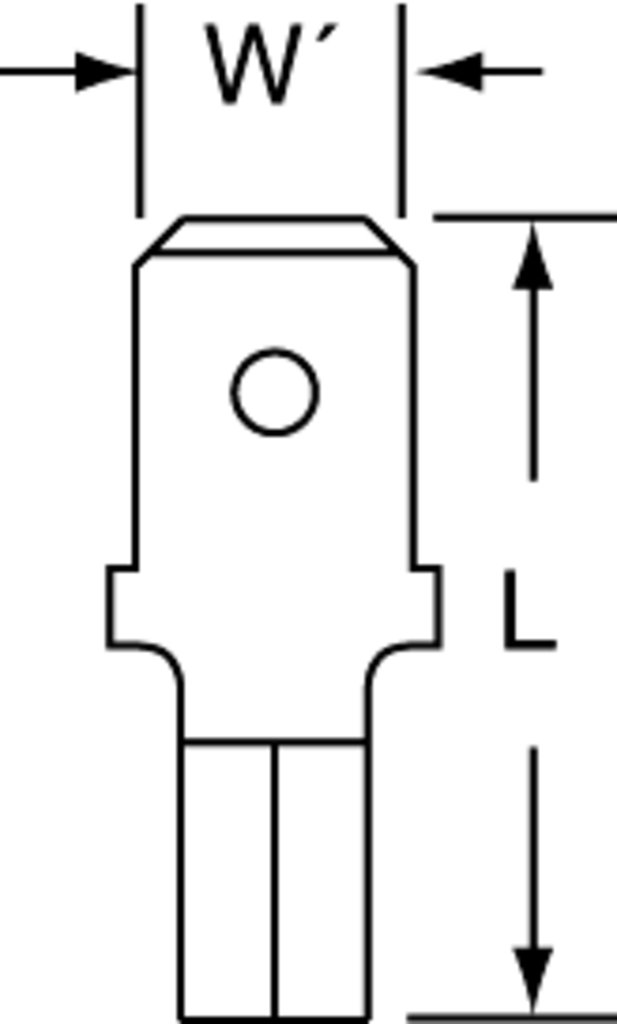

3M™ Scotchlok™ High-Temperature Male Disconnect Terminal offers superior holding force while allowing for quick and easy disconnect. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 900 degrees F (482 degrees C). Its steel construction offers durability and a nickel-plated finish resists corrosion.
3M™ Scotchlok™ High-Temperature Male Disconnect Terminal offers superior holding force while allowing for quick and easy disconnect. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 900 degrees F (482 degrees C). Its steel construction offers durability and a nickel-plated finish resists corrosion.
Manufacturer highlights
3M™ Scotchlok™ High-Temperature Male Disconnect Terminal attaches to the mating part with a tongue that slips over the female tab. It has a non-insula...
3M™ Scotchlok™ High-Temperature Male Disconnect Terminal attaches to the mating part with a tongue that slips over the female tab. It has a non-insulated, butted-seam barrel with a beveled mouth to easily guide the wire into position. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
- Non-insulated, butted-seam barrel with a beveled mouth offers easy insertion of wires
- This high-temperature male disconnect terminal offers excellent holding force
- Allows for quick and easy disconnect of wires
- Mates with 0.25-in wide female tab
Additional manufacturer notes
- Feed description
- 3M MU14-250DMHTX MU14-250DMHTX ML D
- Label description
- High Temperature Male Disconnect Non-Insulated, 100/bottle
- Invoice description
- MU14-250DMHTX ML DISC NON-INS HI TEMP
Specifications
- UPC
- 051128589793
- UNSPSC
- 39121432
- Country of Origin
- USA
- Material
- Non-Insulated
- Type
- Disconnect
- Barrel Style
- Butted
- Fastener Orientation
- Male
- Material
- Non-Insulated
- Number Of Terminals
- 100 per bottle
- Pad Width
- 0.25 Inch
- Sub Brand
- Scotchlok
- Terminal Size
- 16 - 14 AWG
- Type
- Disconnect
