MV055F1CAX5E
SKU: MV055F1CAX5E-EDF
MPN: MV055F1CAX5E
Key specs
View all- Amperage Rating
- 5 A
- Material
- Fiberglass
- Type
- Fuse
- Voltage Rating
- 5,500 V
Description
Product overview

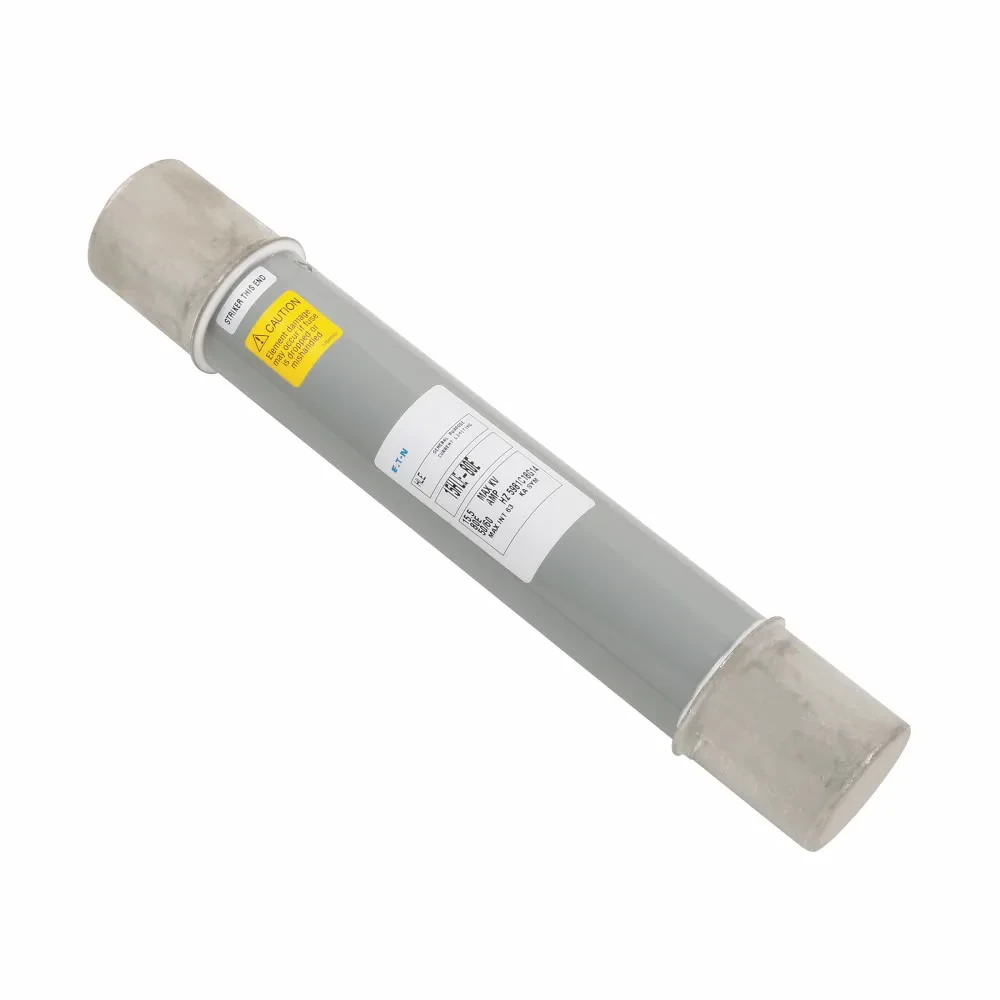

Eaton Bussmann series MV055 E-Rated medium voltage fuse, 5.5 kV, 5A, 50 kAIC, Non Indicating, Current limiting, Ferrule end X ferrule end, Class E, Fiberglass tube, 1
Eaton Bussmann series MV055 E-Rated medium voltage fuse, 5.5 kV, 5A, 50 kAIC, Non Indicating, Current limiting, Ferrule end X ferrule end, Class E, Fiberglass tube, 1
Manufacturer highlights
Our general purpose and full range E-Rated, current-limiting medium voltage fuses are designed for feeder circuit, switchgear and transformer protecti...
Our general purpose and full range E-Rated, current-limiting medium voltage fuses are designed for feeder circuit, switchgear and transformer protection. Construction types include ferrule, bolt-on and clip lock, with special application fuses available for use with AMPGARD' motor starters.
Additional manufacturer notes
- Short name
- BUSS
- Feed description
- BUSS MV055F1CAX5E MEDIUM VOLTAGE E-
- Invoice description
- MEDIUM VOLTAGE E-RATED
Specifications
- UPC
- 051712269476
- UNSPSC
- 39121626
- Country of Origin
- US
- Amperage Rating
- 5 A
- Material
- Fiberglass
- Type
- Fuse
- Voltage Rating
- 5,500 V
- Amperage Rating
- 5 A
- Class
- Class E
- Connection
- Ferrule end x ferrule end
- Dimensions
- 2.0000 IN X 2.0000 IN X 15.7500 IN
- Element
- Silver ribbon
- Interrupt Rating
- 50 kAIC
- Material
- Fiberglass
- Standard
- ANSI,Contact factory
- Sub Brand
- Bussmann Series
- Type
- Fuse
- Voltage Rating
- 5,500 V
