MVU14-10RX
SKU: MVU14-10RX
MPN: MVU14-10RX
Key specs
View all- Material
- PVC
- Type
- Ring
Description
Product overview
3M™ Scotchlok™ Color-Coded Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
3M™ Scotchlok™ Color-Coded Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
Manufacturer highlights
Create precise electrical contacts with this 3M™ Scotchlok™ Color-Coded Standard Ring Tongue Terminal. Its butted-seam barrel has a funnel-shaped desi...
Create precise electrical contacts with this 3M™ Scotchlok™ Color-Coded Standard Ring Tongue Terminal. Its butted-seam barrel has a funnel-shaped design that makes it easy to thread stripped wires through without bending or catching, and its rigid-molded polyvinyl chloride sleeve helps relieve mechanical stress. The blue vinyl sleeve is abrasion-resistant and flared for easy crimping, and the terminal is made of electrolytic copper coated in tin to protect against corrosion. This ring tongue terminal is UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
- Blue vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Standard-style ring tongue fits around the stud
- Stud size #10
Additional manufacturer notes
- Feed description
- 3M MVU14-10RX MVU14-10RX RING, VINY
- Label description
- Ring Vinyl Insulated, 100/bottle
- Invoice description
- MVU14-10RX RING, VINYL INSULATED BOTTLE
Specifications
- UPC
- 051128588192
- UNSPSC
- 39121432
- Country of Origin
- USA
- Material
- PVC
- Type
- Ring
- Barrel Style
- Butted

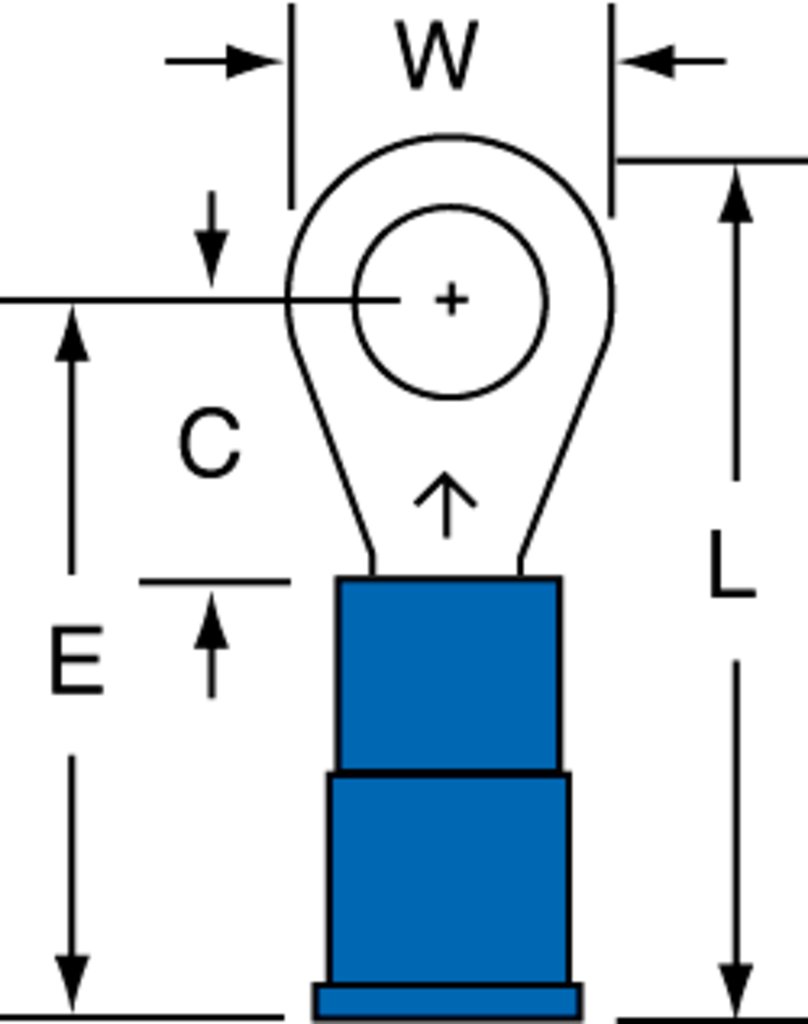

- Clearance (C)
- 0.29 Inch
- Material
- PVC
- Number Of Terminals
- 100 per bottle
- Standard
- UL and CSA
- Stud Size
- 10
- Sub Brand
- Scotchlok
- Terminal Size
- 16 - 14 AWG
- Type
- Ring
- Width (W)
- 0.33 Inch
