MVU14-6FX
SKU: MVU14-6FX-3M
MPN: MVU14-6FX
Key specs
View all- Material
- PVC
- Type
- Fork
Description
Product overview
3M™ Scotchlok™ Color-Coded Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
3M™ Scotchlok™ Color-Coded Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
Manufacturer highlights
3M™ Scotchlok™ Standard Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is...
3M™ Scotchlok™ Standard Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
- Blue vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Wider-tongue design for use on free-standing studs
- Stud size #6
Additional manufacturer notes
- Short name
- 3M
- Feed description
- 3M MVU14-6FX MVU14-6FX FORK VINYL I
- Label description
- Fork Vinyl Insulated, 100/bottle
- Invoice description
- MVU14-6FX FORK VINYL INS BTL
Specifications
- UPC
- 051128590294
- UNSPSC
- 39121432
- Country of Origin
- USA
- Material
- PVC
- Type
- Fork
- Barrel Style
- Butted

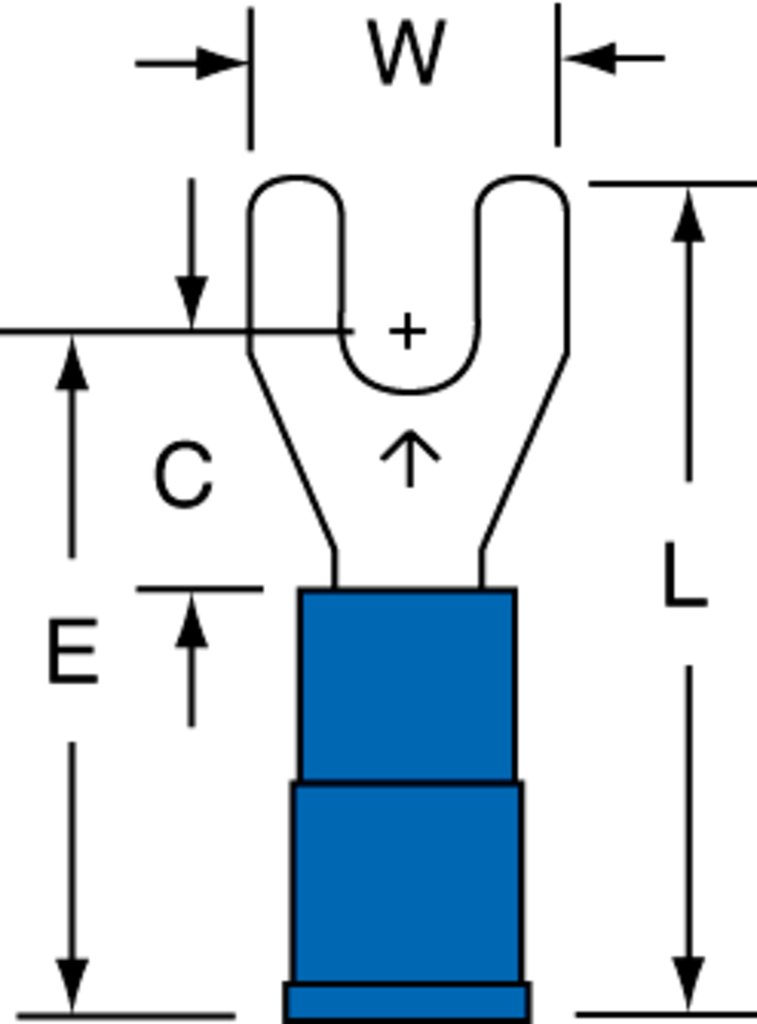

- Clearance (C)
- 0.29 Inch
- Material
- PVC
- Number Of Terminals
- 100 per bottle
- Pad Width
- 6
- Standard
- UL and CSA
- Sub Brand
- Scotchlok
- Terminal Size
- 16 - 14 AWG
- Type
- Fork
- Width (W)
- 0.34 Inch
