Videos & documents
Documents
MVU14-8FX
SKU: MVU14-8FX-3M
MPN: MVU14-8FX
Key specs
View all- Material
- PVC
- Type
- Fork
Description
Product overview
3M™ Scotchlok™ Standard Fork Terminal has a wider tongue for use on free standing studs. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of 40 to 221 degrees F (40 to 105 degrees C).
3M™ Scotchlok™ Standard Fork Terminal has a wider tongue for use on free standing studs. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of 40 to 221 degrees F (40 to 105 degrees C).
Manufacturer highlights
3M™ Scotchlok™ Standard Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is...
3M™ Scotchlok™ Standard Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel designed, rigid molded, polyvinyl chloride sleeve to guide the wire into position for ease of installation. This terminal is UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
- Wider-tongue design for use on free-standing studs
- Electrolytic copper construction offers good conductivity
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
- 600V-rated for building wire and 1000V for signs, fixtures or luminaires
Additional manufacturer notes
- Feed description
- 3M MVU14-8FX MVU14-8FX FORK VINYL I
- Label description
- Fork Vinyl Insulated, 100/bottle
- Invoice description
- MVU14-8FX FORK VINYL INS BTL
Specifications
- UPC
- 051128590300
- UNSPSC
- 39121432
- Country of Origin
- USA
- Material
- PVC
- Type
- Fork
- Barrel Style
- Butted

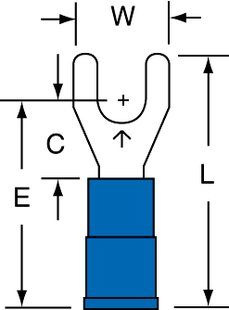

- Clearance (C)
- 0.29 Inch
- Material
- PVC
- Standard
- UL and CSA
- Stud Size
- 8
- Sub Brand
- Scotchlok
- Terminal Size
- 16 - 14 AWG
- Type
- Fork
- Width (W)
- 0.34 Inch
