MVU18-250DMFK-A
SKU: MVU18-250DMFK-A
MPN: MVU18-250DMFK-A
Description
Product overview

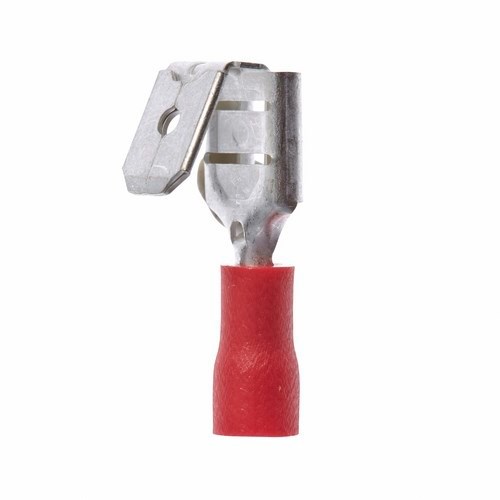

3M™ Scotchlok™ Color-Coded Male-Female Disconnect Terminal has a tongue portion with fingers that grip a male quick-slide and a tongue extension that is to be gripped by a female quick-slide. This is a multi-stack disconnect terminal with a vinyl-insulated, butted-seam barrel. It has durable brass construction for good conductivity and a tin-plated finish for corrosion resistance.
3M™ Scotchlok™ Color-Coded Male-Female Disconnect Terminal has a tongue portion with fingers that grip a male quick-slide and a tongue extension that is to be gripped by a female quick-slide. This is a multi-stack disconnect terminal with a vinyl-insulated, butted-seam barrel. It has durable brass construction for good conductivity and a tin-plated finish for corrosion resistance.
Manufacturer highlights
3M™ Scotchlok™ Color-Coded Male-Female Disconnect Terminal provides permanent electrical and mechanical connection to a pre-stripped end of a stranded...
3M™ Scotchlok™ Color-Coded Male-Female Disconnect Terminal provides permanent electrical and mechanical connection to a pre-stripped end of a stranded copper wire. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position. The vinyl-sleeve insulation is abrasion-resistant and flared to ensure easy crimping. The terminal withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
- Red vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- The tongue portion with fingers grip a male quick-slide and a tongue extension grips a female quick-slide
- Allows for quick and easy disconnect of wires
- Mates with 0.25-in wide male and female tab
Additional manufacturer notes
- Short name
- 3M
- Feed description
- 3M MVU18-250DMFK-A MVU18-250DMFK-A
- Label description
- Vinyl Insulated Butted Seam Multi-Stack Disconnect
- Invoice description
- MVU18-250DMFK-A VNL INS BTD SEAM MS DISC
Specifications
- UPC
- 051138980627
- UNSPSC
- 31201502
- Country of Origin
- TWN
