N-250SP
SKU: N-250SP
MPN: N-250SP
Key specs
View all- Color
- Silver
- Material
- Tin Plated Copper
- Number Of Poles
- 1
- Size
- L=2.106 - W=1.102 IN
- Type
- Tin Plated Copper Split Bolt
- Voltage Rating
- 600 V
Description
Product overview

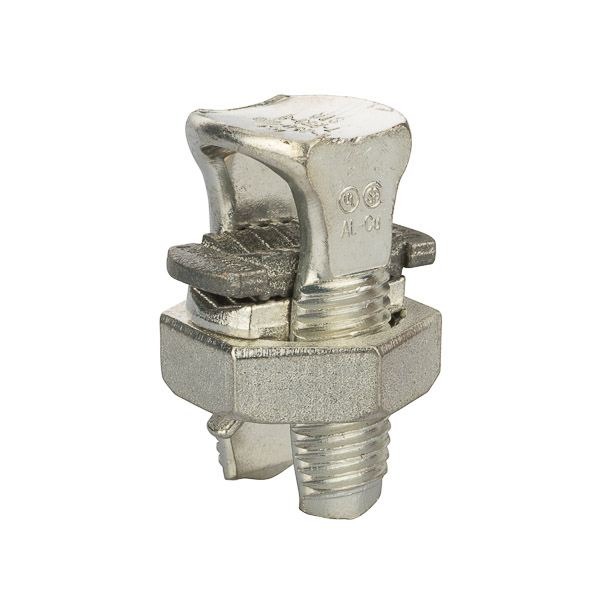

All Purpose Split Bolt Connector 250 MCM All Purpose Split Bolt Connectors are used for combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. They have an electro-tinned body. UL listed for copper and copperweld wires only. Includes nut, spacer and pressure pad.
All Purpose Split Bolt Connector 250 MCM All Purpose Split Bolt Connectors are used for combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. They have an electro-tinned body. UL listed for copper and copperweld wires only. Includes nut, spacer and pressure pad.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI N-250SP Copper Split Bolt 250 T
- Invoice description
- Copper Split Bolt 250 Tin Plated
Specifications
- UPC
- 662381020390
- Color
- Silver
- Material
- Tin Plated Copper
- Number Of Poles
- 1
- Size
- L=2.106 - W=1.102 IN
- Type
- Tin Plated Copper Split Bolt
- Voltage Rating
- 600 V
- Color
- Silver
- Environmental Conditions
- 90 C
- Finish
- Tin Plated
- Material
- Tin Plated Copper
- Number Of Conductors
- 2
- Number Of Poles
- 1
- Size
- L=2.106 - W=1.102 IN
- Standard
- UL486B
- Sub Brand
- Split Bolts
- Temperature Rating
- 90 C
- Type
- Tin Plated Copper Split Bolt
- Voltage Rating
- 600 V
- Wire Size
- 1/0 STR - 250 MCM
- Wire Type
- Class A & B
