N-350SP
SKU: N-350SP
MPN: N-350SP
Key specs
View all- Color
- Silver
- Material
- Tin Plated Copper
- Number Of Poles
- 1
- Size
- L=2.440 - W=1.220 IN
- Type
- Tin Plated Copper Split Bolt
- Voltage Rating
- 600 V
Description
Product overview

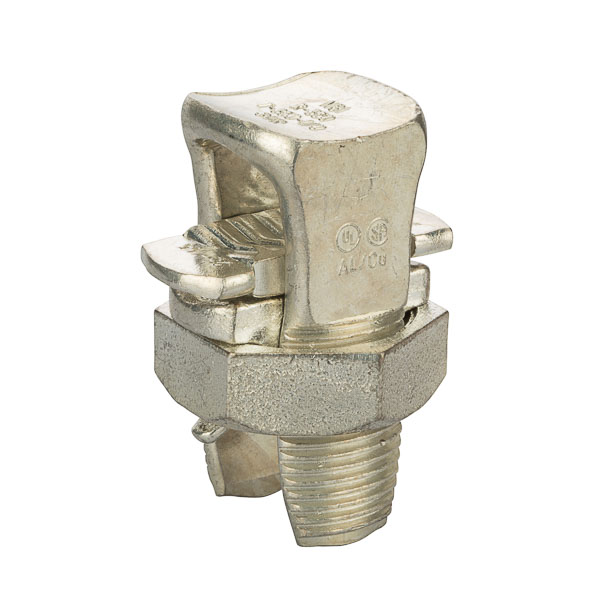

All Purpose Split Bolt Connector 350 MCM All Purpose Split Bolt Connectors are used for combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. They have an electro-tinned body. UL listed for copper and copperweld wires only. Includes nut, spacer and pressure pad.
All Purpose Split Bolt Connector 350 MCM All Purpose Split Bolt Connectors are used for combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. They have an electro-tinned body. UL listed for copper and copperweld wires only. Includes nut, spacer and pressure pad.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI N-350SP Copper Split Bolt 350 T
- Invoice description
- Copper Split Bolt 350 Tin Plated
Specifications
- UPC
- 662381020406
- Color
- Silver
- Material
- Tin Plated Copper
- Number Of Poles
- 1
- Size
- L=2.440 - W=1.220 IN
- Type
- Tin Plated Copper Split Bolt
- Voltage Rating
- 600 V
- Color
- Silver
- Environmental Conditions
- 90 C
- Finish
- Tin Plated
- Material
- Tin Plated Copper
- Number Of Conductors
- 2
- Number Of Poles
- 1
- Size
- L=2.440 - W=1.220 IN
- Standard
- UL486B
- Sub Brand
- Split Bolts
- Temperature Rating
- 90 C
- Type
- Tin Plated Copper Split Bolt
- Voltage Rating
- 600 V
- Wire Size
- 3/0 STR - 350 MCM
- Wire Type
- Class A & B
