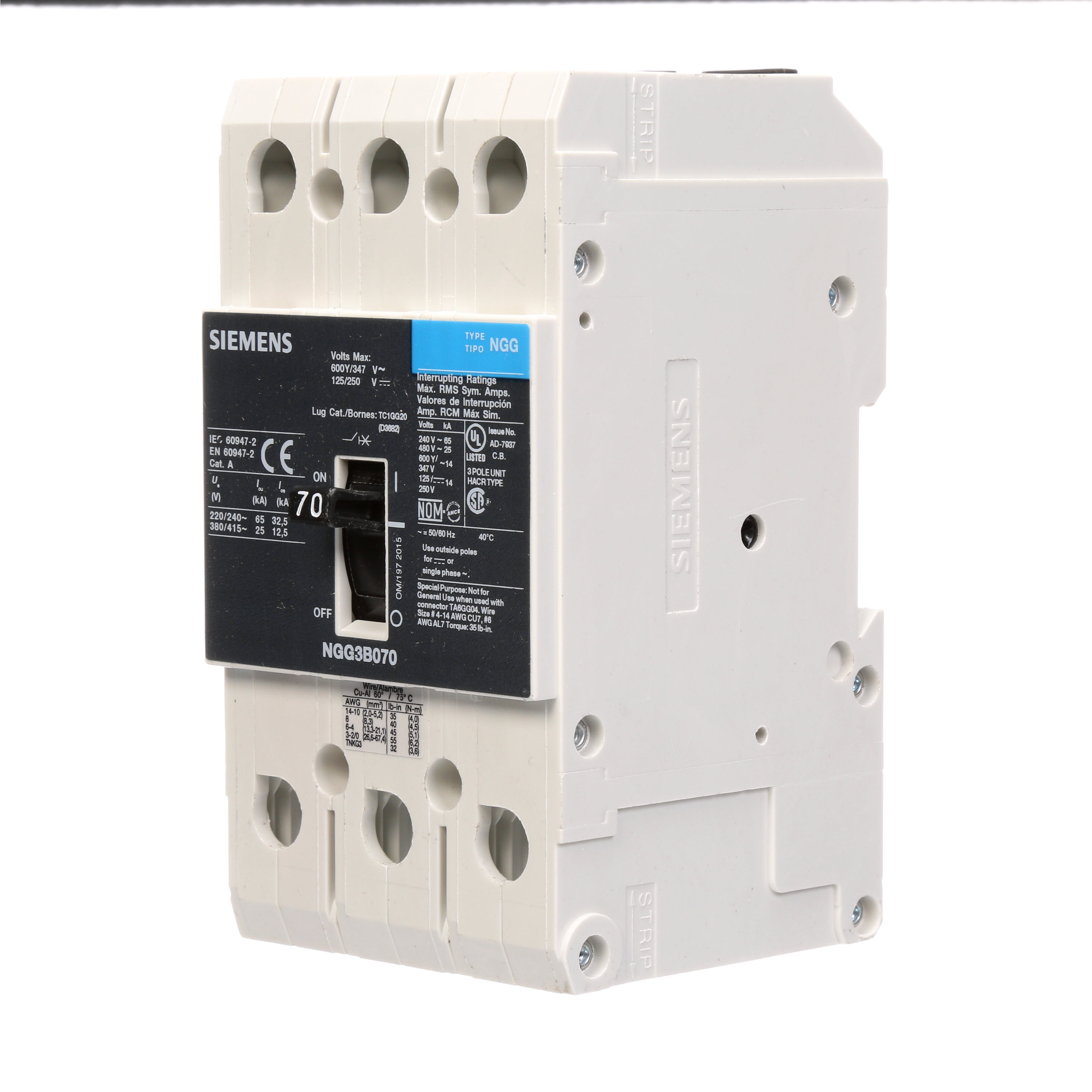

SIEMENS LOW VOLTAGE G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED NGG FRAME WITH STANDARD BREAKING CAPACITY. 70A 3-POLE (14KAIC AT 600Y/347V)(25KAIC AT 480V). SPECIAL FEATURES MOUNTS ON DIN RAIL / SCREW, LINE AND LOAD SIDE LUGS (TC1GG20) WIRE RANGE 8 - 1/0 AWS (CU/AL). DIMENSIONS (W x H x D) IN 3 x 5.4 x 2.8.
SIEMENS LOW VOLTAGE G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED NGG FRAME WITH STANDARD BREAKING CAPACITY. 70A 3-POLE (14KAIC AT 600Y/347V)(25KAIC AT 480V). SPECIAL FEATURES MOUNTS ON DIN RAIL / SCREW, LINE AND LOAD SIDE LUGS (TC1GG20) WIRE RANGE 8 - 1/0 AWS (CU/AL). DIMENSIONS (W x H x D) IN 3 x 5.4 x 2.8.

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

NGG3B070L

$2,370.98 / EA

manufacturer discounts
learn about discounts

  • $2,125.71 for $1,500.00+
  • $2,043.95 for $2,500.00+
  • $1,962.19 for $3,500.00+

In stock (0)
Lead time: over 7 days
may be longer on small orders

SIEMENS LOW VOLTAGE G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED NGG FRAME WITH STANDARD BREAKING CAPACITY. 70A 3-POLE (14KAIC AT 600Y/347V)(25KAIC AT 480V). SPECIAL FEATURES MOUNTS ON DIN RAIL / SCREW, LINE AND LOAD SIDE LUGS (TC1GG20) WIRE RANGE 8 - 1/0 AWS (CU/AL). DIMENSIONS (W x H x D) IN 3 x 5.4 x 2.8.

SIEMENS LOW VOLTAGE G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED NGG FRAME WITH STANDARD BREAKING CAPACITY. 70A 3-POLE (14KAIC AT 600Y/347V)(25KAIC AT 480V). SPECIAL FEATURES MOUNTS ON DIN RAIL / SCREW, LINE AND LOAD SIDE LUGS (TC1GG20) WIRE RANGE 8 - 1/0 AWS (CU/AL). DIMENSIONS (W x H x D) IN 3 x 5.4 x 2.8.

150

UPC
783643413870
UNSPSC
39121601
Country of Origin
MX
Number Of Poles:
3
Continuous current / rated value:
70 A
Design of the overload release:
THERMAL-MAGNETIC
Design of the product:
MOLDEDCASECIRCUITBREAKER
Height [in]:
5.4 in
Mounting type:
DINRAIL/SCREW
Number Of Poles:
3
Standard:
UL/CSA/IEC/NOM
Suitability for operation:
ELECTRICALDISTRIBUTION
Tripping characteristic class:
STANDARD
Voltage / between phase and Ground (GND) / rated value:
347 V
Voltage / between phase and phase / rated value:
600 V
Width [in]:
3 in
