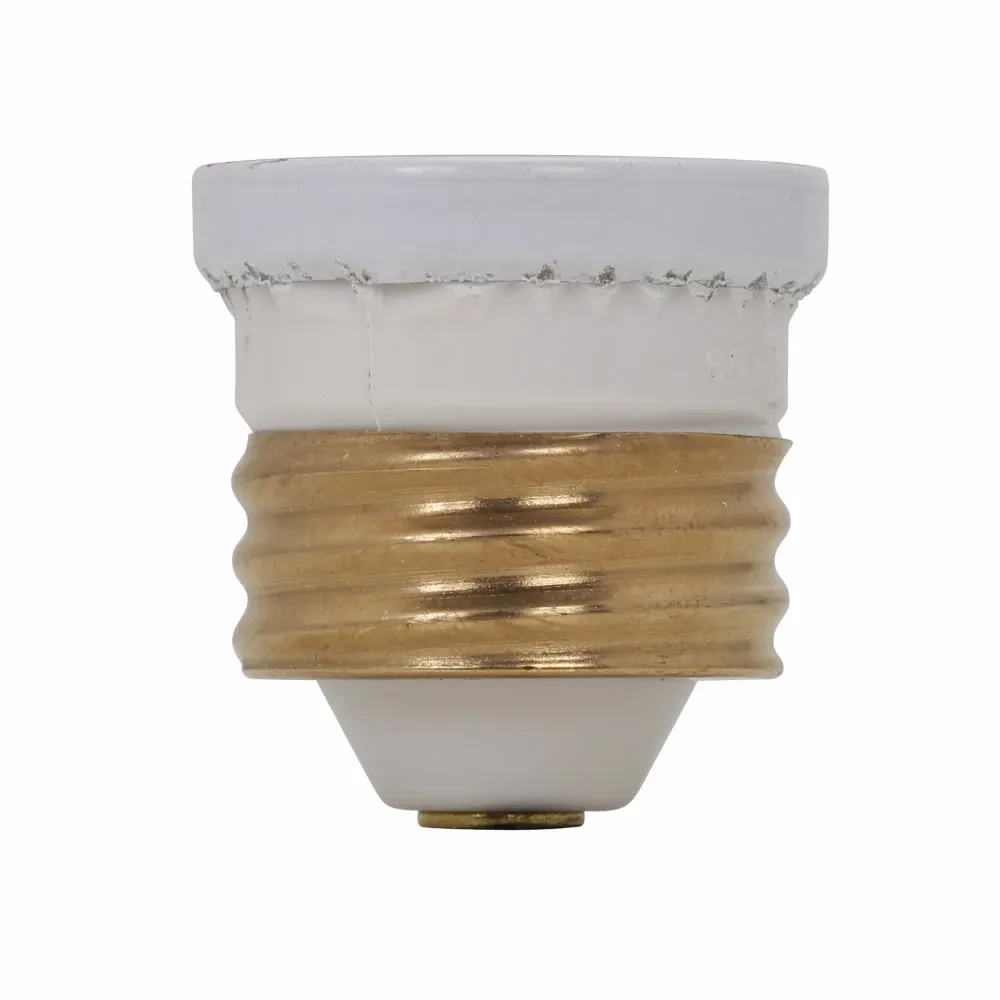

TL-20-EDF
Eaton Bussmann series Type TL plug fuse, plug fuse, time delay, 20 A, 125 Vac, 10 kAIC (RMS Symmetrical) interrupt rating, 10 kA short circu...
$3.01 / EA
Available to order
Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
Videos & documents
Documents
NON-90
SKU: NON-90-EDF
MPN: NON-90
Key specs
View all- Amperage Rating
- 90 A
- Size
- 1.06 In Diameter X 5.88 In Length
- Type
- Fuse
- Voltage Rating
- 250/125 VAC//VDC
Description
Product overview
Eaton Bussmann series NON fuse, Supplemental one-time fuse, Non current limiting, Light duty circuit locations, 90 A, Class H, Non-indicating, Blade end x blade end, 50 kAIC at 125 Vdc,10 kAIC at 250 Vac, Standard, 5, 250 V, 125 Vdc
Eaton Bussmann series NON fuse, Supplemental one-time fuse, Non current limiting, Light duty circuit locations, 90 A, Class H, Non-indicating, Blade end x blade end, 50 kAIC at 125 Vdc,10 kAIC at 250 Vac, Standard, 5, 250 V, 125 Vdc
Manufacturer highlights
Basic Protection 250Vac (NON) and 600Vac (NOS), 1/8a -600A General Purpose One-time fuses
Basic Protection 250Vac (NON) and 600Vac (NOS), 1/8a -600A General Purpose One-time fuses
Additional manufacturer notes
- Short name
- BUSS
- Feed description
- BUSS NON-90 BUSS ONE TIME FUSE
- Invoice description
- BUSS ONE TIME FUSE
Specifications
- UPC
- 051712101677
- UNSPSC
- 39121605
- Country of Origin
- MX
- Amperage Rating
- 90 A
- Size
- 1.06 In Diameter X 5.88 In Length
- Type
- Fuse
- Voltage Rating
- 250/125 VAC//VDC
- Amperage Rating
- 90 A
- Class
- H
- Connection
- Blade end x blade end
- Dimensions
- 1.6000 IN X 1.6000 IN X 5.8800 IN
- Interrupt Rating
- 10 kAIC at 250 Vac50 kAIC at 125 Vdc
- Size
- 1.06 In Diameter X 5.88 In Length
- Standard
- CE Marked
- Sub Brand
- Bussmann Series
- Type
- Fuse
- Voltage Rating
- 250/125 VAC//VDC
Videos & documents
Documents
Similar items
Compare alternates in this category before ordering.
Similar item
S-12-EDF
Eaton Bussmann series Type S plug fuse, plug fuse, time delay, heavy duty, packaging type blister pack, 12 A, 125 Vac, 10 kAIC (RMS Symmetri...
$2.86 / EA
10 available
Similar item

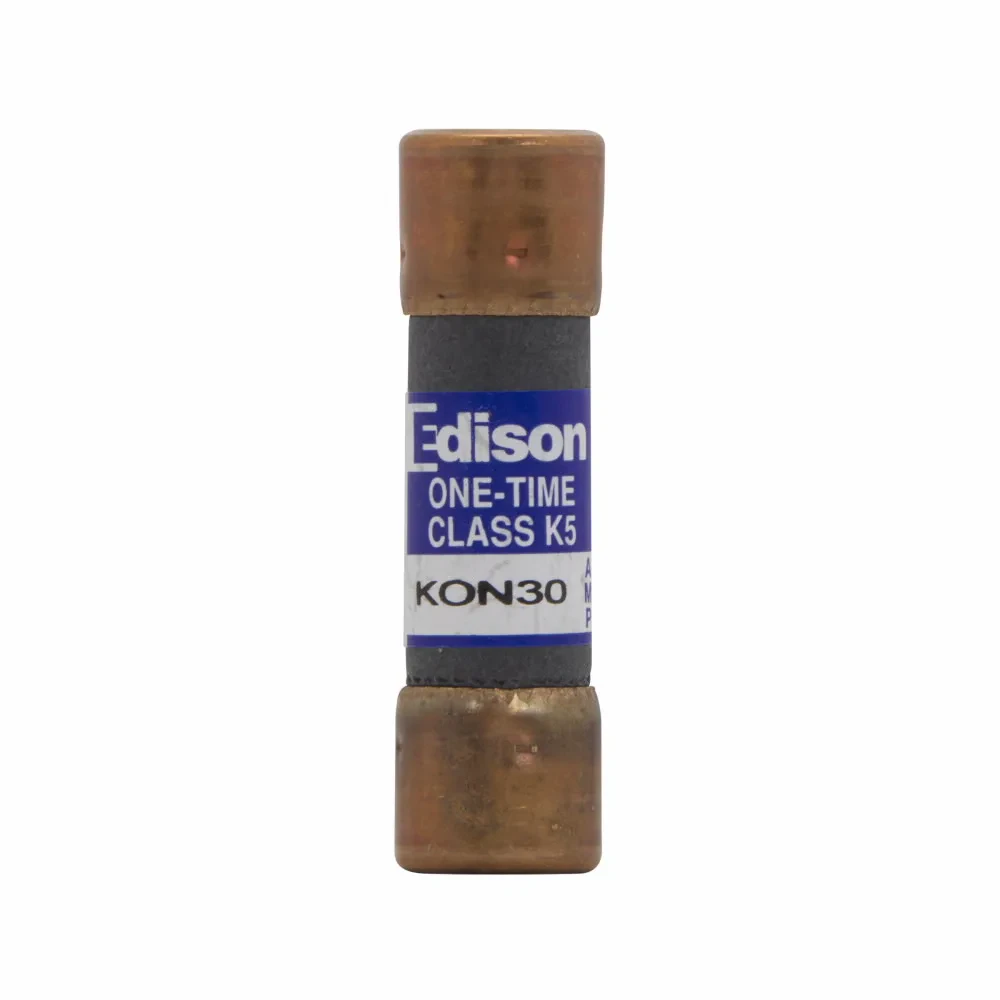

KON30-EDF
Eaton Edison KON fuse, Ferrule design, 250V, 30A, 10 kAIC, Non Indicating
$1.27 / EA
553 available
Similar item

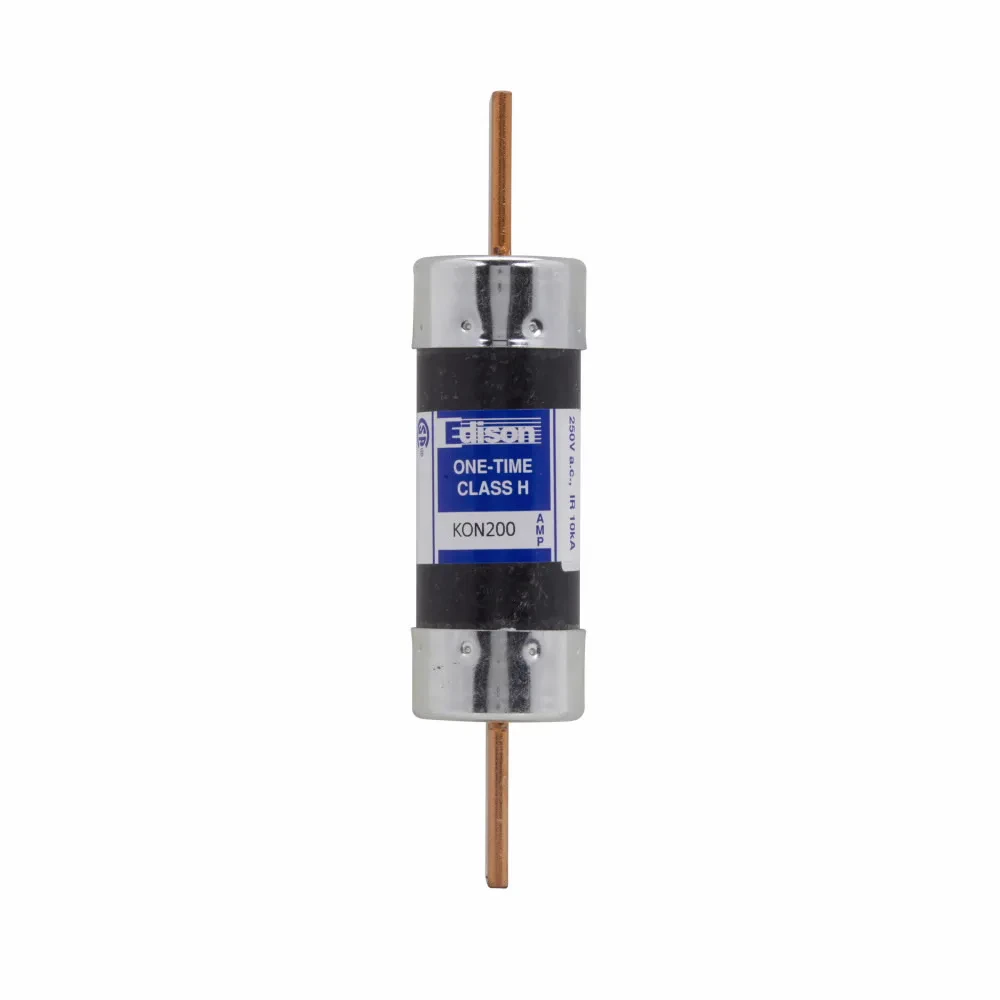

KON200-EDF
