Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$64.95 / EA
Local stock: 0
Lead time:
over 7 working days

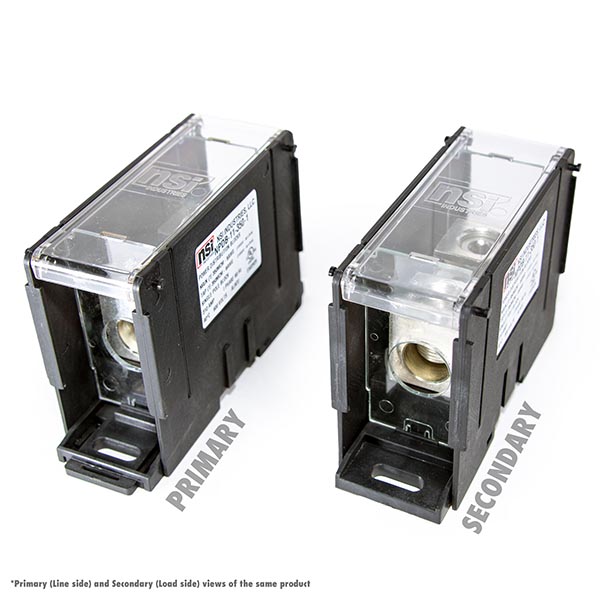

100kA Short Circuit Current Rated Power Distribution Block. 1 x 350 MCM-6 AWG Line, 1 x 350 MCM-6 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.
100kA Short Circuit Current Rated Power Distribution Block. 1 x 350 MCM-6 AWG Line, 1 x 350 MCM-6 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.
150
- UPC
- 662381367587
- Amperage Rating:
- 310 A
- Color:
- Black Base-Clear Panels and Covers
- Material:
- 6061-T6 Aluminum Body - Valox Nylon 6/6 Base - Lexan 500R Polycarbonate Panels and Covers
- Size:
- L=5.800 - W=1.950 - H=3.750 IN
- Type:
- Single Primary (Line), Single Secondary (Load)
- Voltage Rating:
- 600 V
- Amperage Rating:
- 310 A
- Color:
- Black Base-Clear Panels and Covers
- Material:
- 6061-T6 Aluminum Body - Valox Nylon 6/6 Base - Lexan 500R Polycarbonate Panels and Covers
- Mounting:
- Slotted Holes in Base, 35mm DIN Rail w/Locking Feature
- Number Of Terminals:
- 2
- Size:
- L=5.800 - W=1.950 - H=3.750 IN
- Standard:
- UL1953 and UL1059 Listed, cULus
- Sub Brand:
- NPDB Power Distribution Blocks
- Type:
- Single Primary (Line), Single Secondary (Load)
- Voltage Rating:
- 600 V
- Wire Size:
- (1) 350 MCM-6 AWG(LINE) - (1) 350 MCM-6 AWG(LOAD)
