NPDB-14-750-1
SKU: NPDB-14-750-1
MPN: NPDB-14-750-1
Key specs
View all- Amperage Rating
- 475A
- Color
- Black Base-Clear Panels and Covers
- Material
- 6061-T6 Aluminum Body - Valox Nylon 6/6 Base - Lexan 500R Polycarbonate Panels and Covers
- Size
- L=5.800 - W=2.750 - H=3.750 IN
- Type
- Single Primary (Line), Single Secondary (Load)
- Voltage Rating
- 600 V
Description
Product overview

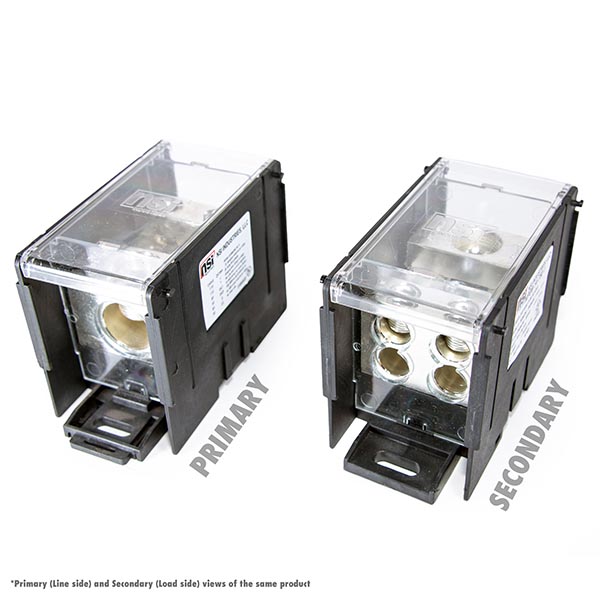

100kA Short Circuit Current Rated Power Distribution Block. 1 x 750-250 MCM Line, 4 x 250 MCM-6 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.
100kA Short Circuit Current Rated Power Distribution Block. 1 x 750-250 MCM Line, 4 x 250 MCM-6 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI NPDB-14-750-1 NPDB LINE 1X750-2
- Invoice description
- NPDB LINE 1X750-250 - LOAD 4X250-6
Specifications
- UPC
- 662381367754
- Amperage Rating
- 475A
- Color
- Black Base-Clear Panels and Covers
- Material
- 6061-T6 Aluminum Body - Valox Nylon 6/6 Base - Lexan 500R Polycarbonate Panels and Covers
- Size
- L=5.800 - W=2.750 - H=3.750 IN
- Type
- Single Primary (Line), Single Secondary (Load)
- Voltage Rating
- 600 V
- Amperage Rating
- 475A
- Color
- Black Base-Clear Panels and Covers
- Material
- 6061-T6 Aluminum Body - Valox Nylon 6/6 Base - Lexan 500R Polycarbonate Panels and Covers
- Mounting
- Slotted Holes in Base, 35mm DIN Rail w/Locking Feature
- Number Of Terminals
- 5
- Size
- L=5.800 - W=2.750 - H=3.750 IN
- Standard
- UL1953 and UL1059 Listed, cULus
- Sub Brand
- NPDB Power Distribution Blocks
- Type
- Single Primary (Line), Single Secondary (Load)
- Voltage Rating
- 600 V
- Wire Size
- (1) 750-250 MCM(LINE) - (4) 250 MCM-6 AWG(LOAD)
