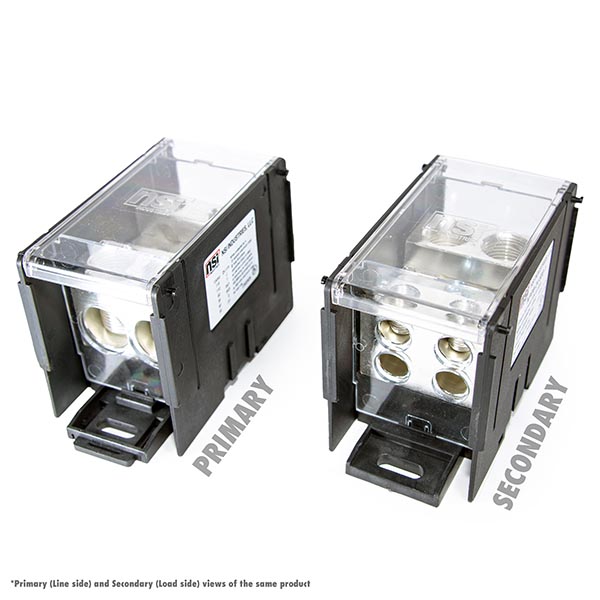

100kA Short Circuit Current Rated Power Distribution Block. 2 x 600 MCM-4 AWG Line, 4 x 4/0-6 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

NPDB-24-600-1

Manufacturer
Nsi Industries

$119.30 / EA

Available to order

Local stock: 0
Lead time: over 7 working days

100kA Short Circuit Current Rated Power Distribution Block. 2 x 600 MCM-4 AWG Line, 4 x 4/0-6 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.

100kA Short Circuit Current Rated Power Distribution Block. 2 x 600 MCM-4 AWG Line, 4 x 4/0-6 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.

150

UPC
662381367730
Amperage Rating:
840 A
Color:
Black Base-Clear Panels and Covers
Material:
6061-T6 Aluminum Body - Valox Nylon 6/6 Base - Lexan 500R Polycarbonate Panels and Covers
Size:
L=5.800 - W=2.750 - H=3.750 IN
Type:
Single Primary (Line), Single Secondary (Load)
Voltage Rating:
600 V
Amperage Rating:
840 A
Color:
Black Base-Clear Panels and Covers
Material:
6061-T6 Aluminum Body - Valox Nylon 6/6 Base - Lexan 500R Polycarbonate Panels and Covers
Mounting:
Slotted Holes in Base, 35mm DIN Rail w/Locking Feature
Number Of Terminals:
6
Size:
L=5.800 - W=2.750 - H=3.750 IN
Standard:
UL1953 and UL1059 Listed, cULus
Sub Brand:
NPDB Power Distribution Blocks
Type:
Single Primary (Line), Single Secondary (Load)
Voltage Rating:
600 V
Wire Size:
(2) 600 MCM-4 AWG(LINE) - (4) 4/0-6 AWG(LOAD)
