PAA5
SKU: PAA5
MPN: PAA5
Key specs
View all- Color
- Silver
- Material
- Aluminum
- Number Of Poles
- 1
- Size
- L=1.240 - W=1.496 - H=1.496 IN
- Type
- Parallel Groove Clamps
- Voltage Rating
- 600 V
Description
Product overview

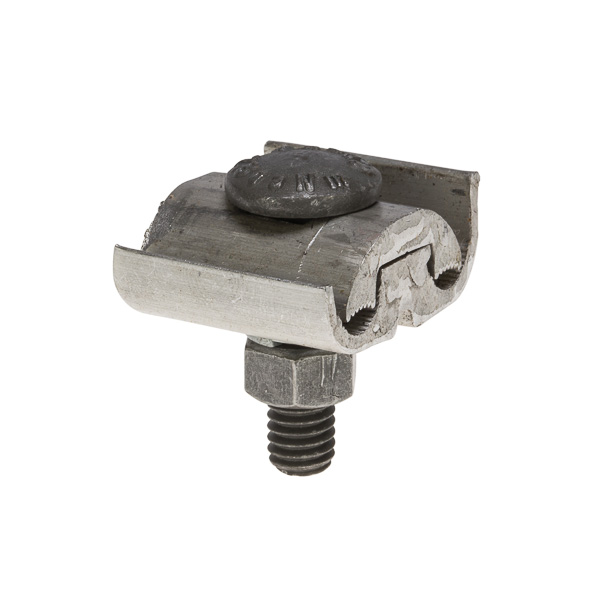

Aluminum Dual Rated Parallel Groove Clamp for 1/0 - 8 SOL Aluminum Dual Rated Parallel Groove Clamps are high strength aluminum extruded alloy fittings assembled with steel or anodized high strength aluminum flat washers for heavy duty service entrance or for use as a heavy duty distribution armor rod clamps. The serrated grooves provide increased contact. Supplied pre-filled with oxide inhibitor. Rated 600V. Temperature rating 90 degrees C.,
Aluminum Dual Rated Parallel Groove Clamp for 1/0 - 8 SOL Aluminum Dual Rated Parallel Groove Clamps are high strength aluminum extruded alloy fittings assembled with steel or anodized high strength aluminum flat washers for heavy duty service entrance or for use as a heavy duty distribution armor rod clamps. The serrated grooves provide increased contact. Supplied pre-filled with oxide inhibitor. Rated 600V. Temperature rating 90 degrees C.,
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI PAA5 AL PARALLEL GROOVE CLAMP 1
- Invoice description
- 1/0-8 Al Parallel Gr Clamp
Specifications
- UPC
- 662381004024
- Color
- Silver
- Material
- Aluminum
- Number Of Poles
- 1
- Size
- L=1.240 - W=1.496 - H=1.496 IN
- Type
- Parallel Groove Clamps
- Voltage Rating
- 600 V
- Color
- Silver
- Environmental Conditions
- 90 C
- Finish
- Aluminum
- Material
- Aluminum
- Number Of Conductors
- 2
- Number Of Poles
- 1
- Size
- L=1.240 - W=1.496 - H=1.496 IN
- Sub Brand
- Mechanical Connector
- Temperature Rating
- 90 C
- Type
- Parallel Groove Clamps
- Voltage Rating
- 600 V
- Wire Size
- (Main AL/CU) 1/0 STR-8 SOL (Tap AL/CU) 1/0 STR-8 SOL
- Wire Type
- ACSR - AL/CU
