PAE4141-9
SKU: PAE4141-9
MPN: PAE4141-9
Key specs
View all- Color
- Silver
- Material
- Aluminum
- Number Of Poles
- 1
- Size
- L=1.375 - W=2.000 - H=2.000 IN
- Type
- Parallel Groove Clamps
- Voltage Rating
- 600 V
Description
Product overview

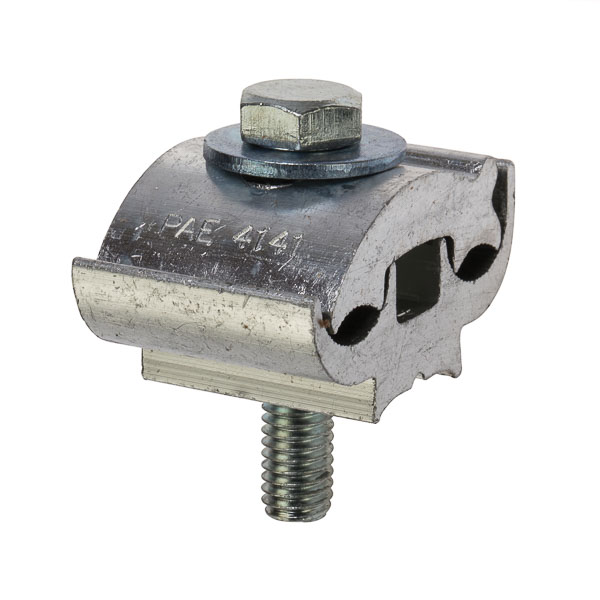

Extruded Parallel Groove Clamp for 4/0 STR to 2 SOL Extruded Parallel Groove Clamps are made of high-strength, heat-treated aluminum alloy. Galvanized steel hardware. Recommended for copper-to-aluminum applications. Supplied pre-filled with oxide inhibitor.
Extruded Parallel Groove Clamp for 4/0 STR to 2 SOL Extruded Parallel Groove Clamps are made of high-strength, heat-treated aluminum alloy. Galvanized steel hardware. Recommended for copper-to-aluminum applications. Supplied pre-filled with oxide inhibitor.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI PAE4141-9 EXTRUDED AL PARALLEL
- Invoice description
- 4/0 Acsr-2 SOL 4-6 Ar
Specifications
- UPC
- 662381004215
- Color
- Silver
- Material
- Aluminum
- Number Of Poles
- 1
- Size
- L=1.375 - W=2.000 - H=2.000 IN
- Type
- Parallel Groove Clamps
- Voltage Rating
- 600 V
- Color
- Silver
- Environmental Conditions
- 90 C
- Finish
- Aluminum
- Material
- Aluminum
- Number Of Conductors
- 2
- Number Of Poles
- 1
- Size
- L=1.375 - W=2.000 - H=2.000 IN
- Sub Brand
- Mechanical Connector
- Temperature Rating
- 90 C
- Type
- Parallel Groove Clamps
- Voltage Rating
- 600 V
- Wire Size
- (Main AL/CU) 4/0 STR-2 SOL (Tap AL/CU) 4/0 STR-2 SOL
- Wire Type
- ACSR - AL/CU
