PEB
SKU: PEB
MPN: PEB
Key specs
View all- Material
- Steel, Polypropylene, Polyethylene
- Type
- nVent CADDY Pyramid Equipment Supports
Description
Product overview

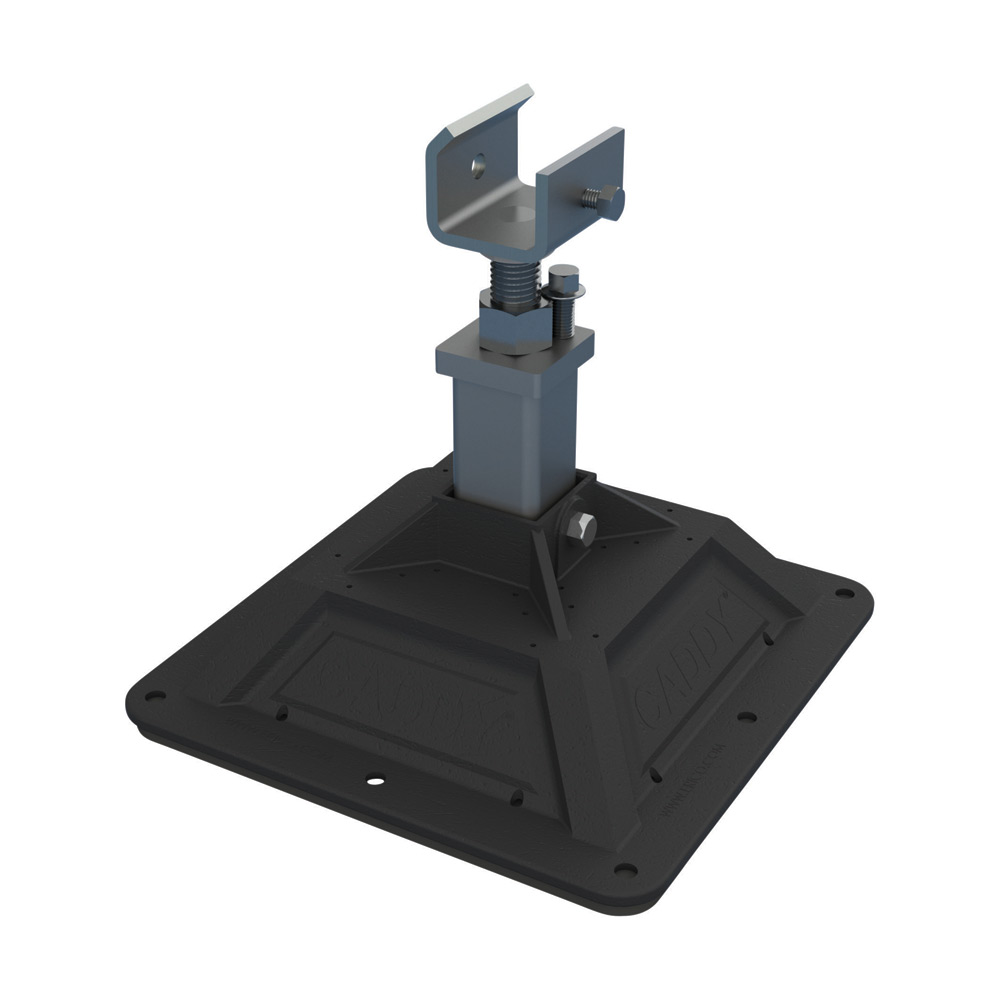

nVent CADDY Pyramid Equipment Support Post Base
nVent CADDY Pyramid Equipment Support Post Base
Manufacturer highlights
- Ideal for use with strut channel type A and U-shaped brackets to create custom equipment supports
- Height adjustable
- Foam bottom offers low abrasion interface for better roof membrane protection
- Compatible with roof surfaces including single ply, bituminous, metal and spray foam
- Provides superior load distribution, even with varying rooftop surfaces
- Hot-dip galvanized and UV stabilized for long lasting performance
Additional manufacturer notes
- Short description
- PYRAMID, Equipment Support Bas
- Short name
- EFS
- Feed description
- NVENT EFS PEB PYRAMID, Equipment Su
- Label description
- PYRAMID, Equipment Support Base, 750lb
Specifications
- UPC
- 782856845348
- UNSPSC
- 40141725
- Country of Origin
- US
- Material
- Steel, Polypropylene, Polyethylene
- Type
- nVent CADDY Pyramid Equipment Supports
- Adjustable Height
- Yes
- Base Width
- 12 in
- Finish
- Hot-Dip Galvanized
- Length (imperial) <Nom>
- 12 in
- Load Capacity
- 750 lb
- Material
- Steel, Polypropylene, Polyethylene
- Standard
- None
- Static Load (lb)
- 750 lb
- Sub Brand
- CADDY
- Type
- nVent CADDY Pyramid Equipment Supports
- Width (Imperial) <Nom>
- 12 in
- Manufacturer keywords
- Frame Post, HVAC, Roof Membrane Protection, Rooftop, Service Equipment
