PFB1624
SKU: PFB1624
MPN: PFB1624
Key specs
View all- Material
- Steel; Acrylonitrile Butadiene Styrene; Stainless Steel 410 (EN 1.4006)
- Type
- Plastic Pipe Clips
Description
Product overview

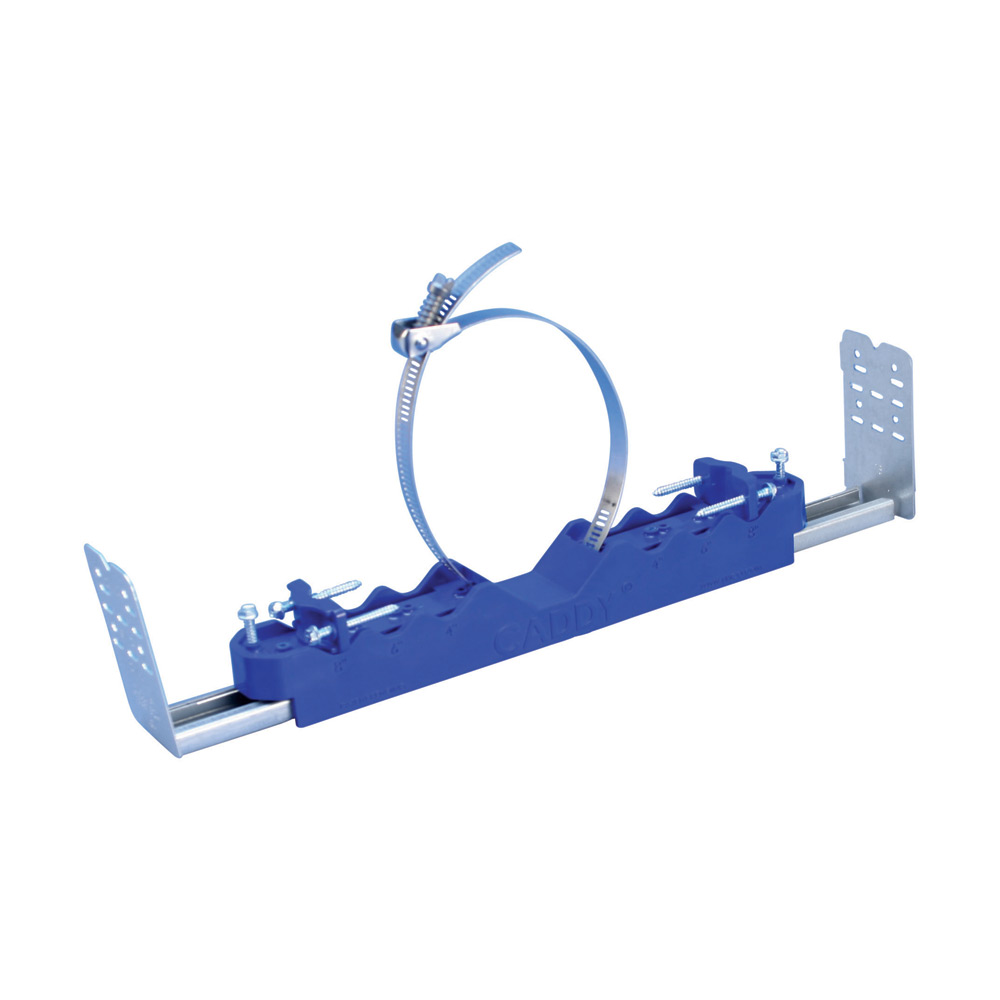

Telescoping Plumbing Prefab Bracket, 15 3/4"–25" Stud Spacing, 1 1/8"–4 1/2" OD1, 0.375"–1.05" OD2
Telescoping Plumbing Prefab Bracket, 15 3/4"–25" Stud Spacing, 1 1/8"–4 1/2" OD1, 0.375"–1.05" OD2
Manufacturer highlights
- Out-of-the-box in-wall solution for supporting supply and waste lines
- Includes an adjustable telescoping screw gun bracket that provides a mid-span support and accommodates non-standard stud spacing
- Multiple pilot holes in telescoping bracket
- Can be mounted to face or inside of stud
- Modular design can accommodate multiple pipe sizes of supply and waste lines
- Marked for easy identification of supply line offset
- Can mount pipe in all vertical or horizontal orientations
- Plastic bracket housing is non-corrosive and compatible with all varieties of pipe
- Additional Plumbing Prefab Bracket Clamps (PFBC) can be purchased separately for multiple supply line runs
Additional manufacturer notes
- Short description
- PLUMBING BRACKET STANDARD MATE
- Short name
- EFS
- Feed description
- NVENT EFS PFB1624 PLUMBING BRACKET
- Label description
- PLUMBING BRACKET STANDARD MATERIAL WITH TSGB 1624
- Invoice description
- PLUMBING BRACKET STANDARD MATERIAL WITH
Specifications
- UPC
- 782856848325
- UNSPSC
- 40141725
- Country of Origin
- US
- Material
- Steel; Acrylonitrile Butadiene Styrene; Stainless Steel 410 (EN 1.4006)
- Type
- Plastic Pipe Clips
- Finish
- Pregalvanized; Electrogalvanized
- Height (Imperial) <Nom>
- 1.300 in
- Length (imperial) <Nom>
- 10.860 in
- Material
- Steel; Acrylonitrile Butadiene Styrene; Stainless Steel 410 (EN 1.4006)
- Standard
- None
- Sub Brand
- CADDY
- Type
- Plastic Pipe Clips
- Width (Imperial) <Nom>
- 1.420 in
- Manufacturer keywords
- Pipe Bracket, Pipe Fixing, Plastic Clamp, Prefab Bracket, Telescoping
