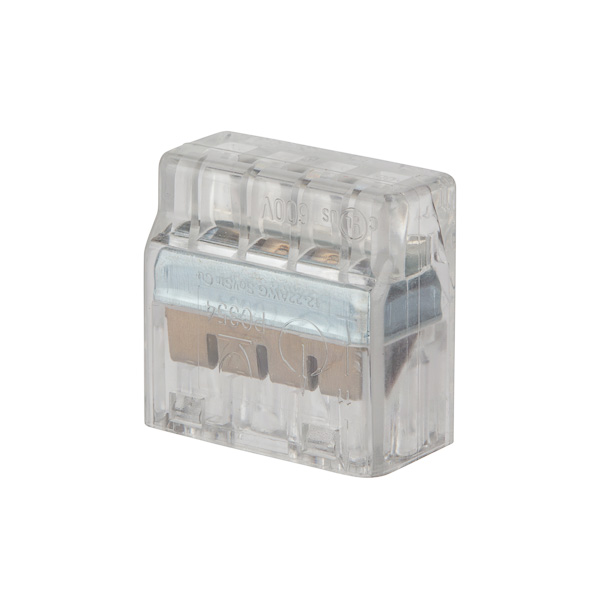

PIWC-4-C
SKU: PIWC-4-C
MPN: PIWC-4-C
Key specs
View all- Color
- Colorless
- Material
- Flame Retadant Polycarbonate
- Size
- D=.748 - W=.789 - H=.411
- Type
- Push In Wire Connectors
- Voltage Rating
- 600 V
Description
Product overview
Push-In Wire Connectors 22-12 AWG - Clear Carton - 4 Wire APPLICATIONS: Fast, safe and reliable installation saves time and money. No twisting or taping of conductors required. Just strip the wire, insert the connector and you are done. One wire per opening ensures loose connections are eliminated. Made of strong, UL 94V-2 flame retardant polycarbonate. Integrated test port enables continuity testing. Color coded for easy identification. Compact design perfect for tight spaces. Copper, tin-plate...
Push-In Wire Connectors 22-12 AWG - Clear Carton - 4 Wire APPLICATIONS: Fast, safe and reliable installation saves time and money. No twisting or taping of conductors required. Just strip the wire, insert the connector and you are done. One wire per opening ensures loose connections are eliminated. Made of strong, UL 94V-2 flame retardant polycarbonate. Integrated test port enables continuity testing. Color coded for easy identification. Compact design perfect for tight spaces. Copper, tin-plated- Stainless steel spring- Steel frame, zinc-plated. UL 486C Listed Wire Connector. Accommodates 22-12 AWG solid or stranded copper wire
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI PIWC-4-C Easy Twist Push-In-Con
- Invoice description
- Easy Twist Push-In-Conn 4 Wire Clr Ctn
Specifications
- UPC
- 662381159687
- Color
- Colorless
- Material
- Flame Retadant Polycarbonate
- Size
- D=.748 - W=.789 - H=.411
- Type
- Push In Wire Connectors
- Voltage Rating
- 600 V
- Color
- Colorless
- Conductor Range
- 22-12 AWG
- Environmental Conditions
- 105 C
- Finish
- Polycarbonate
- Material
- Flame Retadant Polycarbonate
- Number Of Conductors
- 4
- Size
- D=.748 - W=.789 - H=.411
- Standard
- UL486C Listed
- Sub Brand
- Easy Twist
- Temperature Rating
- 105 C
- Type
- Push In Wire Connectors
- Voltage Rating
- 600 V
- Wire Type
- CU Wire Only
