PL3/0-6
SKU: PL3/0-6
MPN: PL3/0-6
Key specs
View all- Color
- Silver
- Material
- Aluminum
- Number Of Poles
- 1
- Size
- L=4.720 - W=.690 - H=.940 IN
- Type
- Un-Insulated Multi Cable
- Voltage Rating
- 600 V
Description
Product overview

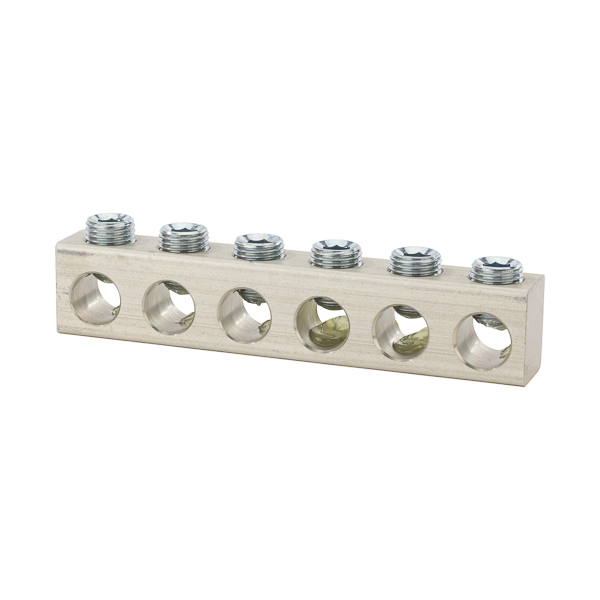

6 Wire Polaris 3/0-6 AWG Uninsulated Multi-Cable Connector Polaris Uninsulated Multi-Cable Connectors are made from 6061-T6 aluminum alloy and are plated for corrosion resistance. They are stacked in one hole increments, up to 14 holes and are suitable for use on wire from #4 AWG to 750 MCM. UL Listed 486B Wire Connector. AL9CU. Rated 600V, 90 degrees C. Dual rated for use with copper and/or aluminum cables. Not recommended for fine-stranded, flexible wire.
6 Wire Polaris 3/0-6 AWG Uninsulated Multi-Cable Connector Polaris Uninsulated Multi-Cable Connectors are made from 6061-T6 aluminum alloy and are plated for corrosion resistance. They are stacked in one hole increments, up to 14 holes and are suitable for use on wire from #4 AWG to 750 MCM. UL Listed 486B Wire Connector. AL9CU. Rated 600V, 90 degrees C. Dual rated for use with copper and/or aluminum cables. Not recommended for fine-stranded, flexible wire.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI PL3/0-6 3/0-6 AWG UNINSULATED M
- Invoice description
- POLARIS Unins Multi-Tap 3/0 6 Port
Specifications
- UPC
- 662381902047
- Color
- Silver
- Material
- Aluminum
- Number Of Poles
- 1
- Size
- L=4.720 - W=.690 - H=.940 IN
- Type
- Un-Insulated Multi Cable
- Voltage Rating
- 600 V
- Color
- Silver
- Environmental Conditions
- 90 C
- Finish
- Aluminum
- Material
- Aluminum
- Number Of Conductors
- 6
- Number Of Poles
- 1
- Size
- L=4.720 - W=.690 - H=.940 IN
- Standard
- cULus
- Sub Brand
- Polaris Un-Insulated
- Temperature Rating
- 90 C
- Type
- Un-Insulated Multi Cable
- Voltage Rating
- 600 V
- Wire Size
- 3/0-6 AWG
- Wire Type
- Class B & C
