Erico Products Inc PRF6 Plumbing Hangers product image

Erico Products Inc PRF6 Plumbing Hangers product image view 2

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

Videos & documents

Documents

Product Data Spec Sheet

PRF6

SKU: PRF6

MPN: PRF6

Purchase options

$100.32 / EA

manufacturer discounts
learn about discounts

$89.94 for $1,300.00+
$85.10 for $2,000.00+
$81.64 for $3,000.00+

Available to order

Lead time: 1-2 working days

Must be purchased in multiples of 5

Lead time: 1-2 working days
Secure checkout with protected order handling.
Minimum order multiple: 5 units.

Dale Electric Supply ships electrical products across the U.S. and supports international orders through customer service. Local delivery may be available in defined regional delivery zones, and larger same-manufacturer orders may qualify for factory-direct shipping. Shipping and fulfillment can vary by product, vendor, manufacturer program, stock state, destination, quantity, and quote workflow.

Customer Service International Sales Factory Direct Shipping

Buying confidence

Established 1948
Secure checkout and protected order handling
Phone support for compatibility and stock questions

Need cross-reference help?

Send us the SKU, manufacturer, photo, or catalog reference. We can cross-reference, confirm availability, and help source hard-to-find electrical supplies.

Contact support Browse catalog Search products

Key specs

View all

Material: Steel, Polypropylene, Polyethylene
Type: nVent CADDY Pyramid RL Roller-Based Supports

Description

Product overview

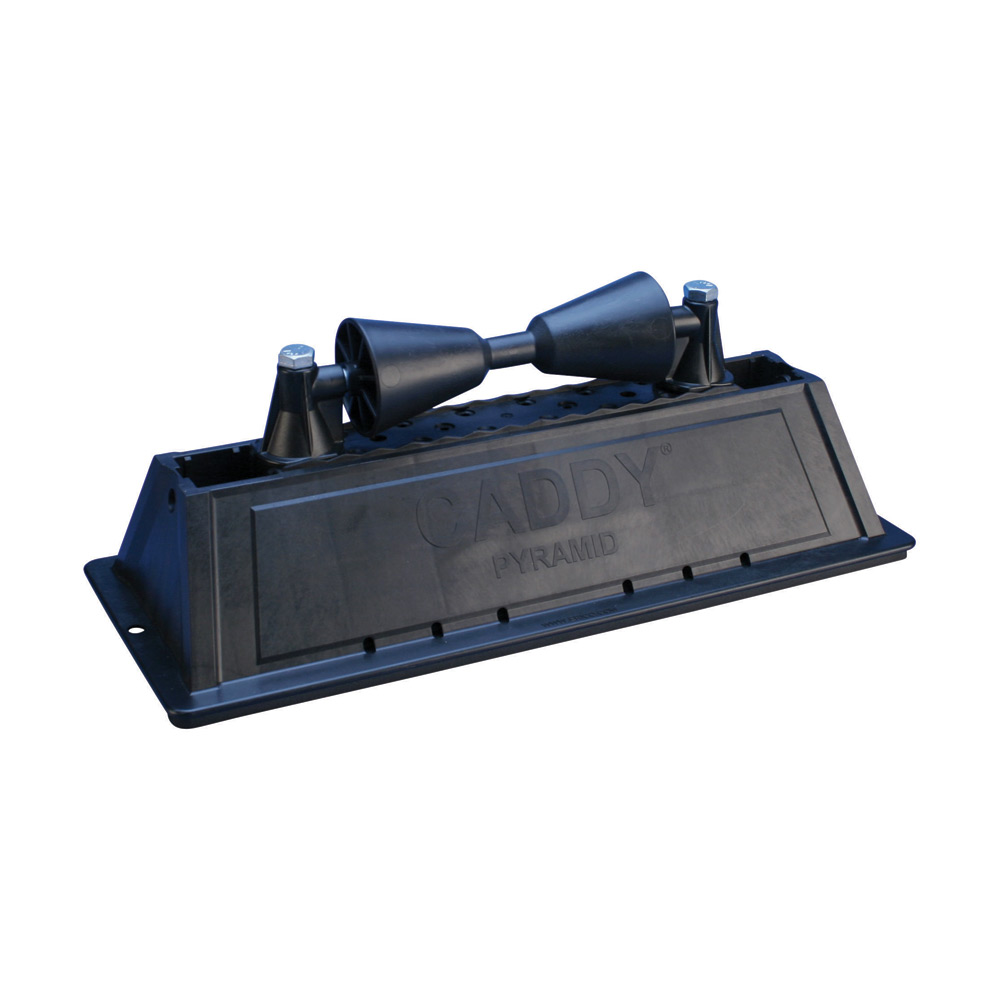

nVent CADDY Pyramid RL Fixed Roller Support, 6" Max Pipe

Manufacturer highlights

Roller-based support designed specifically for rooftop applications
Roller capability allows longitudinal movement of pipe, resulting from thermal expansion or contraction
Polymeric rollers ensure corrosion free rotation
Foam bottom offers low abrasion interface for better roof membrane protection
Compatible with roof surfaces including single ply, bituminous, metal and spray foam
Ready to use out of the box, saving installation time and labor
Hot-dip galvanized and UV stabilized for long lasting performance

Additional manufacturer notes

Short description: PYRAMID, Fixed Roller, 6" Max
Short name: EFS
Feed description: NVENT EFS PRF6 PYRAMID, Fixed Rolle
Label description: PYRAMID, Fixed Roller, 6" Max Pipe

Specifications

UPC: 782856843078

UNSPSC: 40141725

Country of Origin: NL

Material: Steel, Polypropylene, Polyethylene

Type: nVent CADDY Pyramid RL Roller-Based Supports

Finish: Hot-Dip Galvanize

Height (Imperial) <Nom>: 6 1/4 in

Length: 19 in

Length (imperial) <Nom>: 19 in

Material: Steel, Polypropylene, Polyethylene

Standard: None

Static Load (lb): 600 lb

Sub Brand: CADDY

Thickness: 6.25"

Type: nVent CADDY Pyramid RL Roller-Based Supports

Width: 8 in

Width (Imperial) <Nom>: 8 in

Manufacturer keywords: corrosion free roller, expansion, membrane protection, pipe support, rooftop

Do you have a question about PRF6?

Videos & documents

Documents

$6.86 / EA

Available to order

View details

Specification comparison

Scan the attributes that differ across these alternatives.

1090075EG View key specs

SKU: 1090075EG
Price: $2.72 / EA
Availability: Available to order
Finish: Pregalvanized
Hole Size (Imperial) <Nom>: 7/32 in
Length (imperial) <Nom>: —
Material: Steel
Outer Diameter (Imperial) <Max>: —
Outer Diameter (Imperial) <Min>: —

View full product details

6300600PL View key specs

SKU: 6300600PL
Price: $52.40 / EA
Availability: Available to order
Finish: Plain
Hole Size (Imperial) <Nom>: —
Length (imperial) <Nom>: 12 in
Material: Steel
Outer Diameter (Imperial) <Max>: —
Outer Diameter (Imperial) <Min>: —

View full product details

PFBC View key specs

SKU: PFBC
Price: $2.42 / EA
Availability: Available to order
Finish: Electrogalvanized
Hole Size (Imperial) <Nom>: —
Length (imperial) <Nom>: —
Material: Steel; Acrylonitrile Butadiene Styrene
Outer Diameter (Imperial) <Max>: 1.050 in
Outer Diameter (Imperial) <Min>: 3/8 in

View full product details

6340300PL View key specs

SKU: 6340300PL
Price: $56.70 / EA
Availability: Available to order
Finish: Plain
Hole Size (Imperial) <Nom>: —
Length (imperial) <Nom>: 12 in
Material: Steel
Outer Diameter (Imperial) <Max>: —
Outer Diameter (Imperial) <Min>: —

View full product details

4560037CP View key specs

SKU: 4560037CP
Price: $3.53 / EA
Availability: Available to order
Finish: Copper Electroplated
Hole Size (Imperial) <Nom>: —
Length (imperial) <Nom>: —
Material: Cast Iron
Outer Diameter (Imperial) <Max>: —
Outer Diameter (Imperial) <Min>: —

View full product details

4010250EG View key specs

SKU: 4010250EG
Price: $6.86 / EA
Availability: Available to order
Finish: Electrogalvanized; Pregalvanized
Hole Size (Imperial) <Nom>: —
Length (imperial) <Nom>: —
Material: Steel
Outer Diameter (Imperial) <Max>: —
Outer Diameter (Imperial) <Min>: —

View full product details

Attribute	1090075EG 109 Side Mount Strap for CPVC Pipe, 3/4" Pipe, 1.05" OD	6300600PL 630 Pipe Saddle for 1" Insulation, 6" Pipe	PFBC Plumbing Prefab Bracket Clamp, 0.375"–1.05" OD	6340300PL 634 Pipe Saddle for 3" Insulation, 3" Pipe	4560037CP 456 Malleable Split Ring Hanger for Copper Tube, 3/8" Copper Tube, 1/2" OD, 3/8"...	4010250EG 401 Clevis Hanger, EG, PG, 2 1/2" Pipe, 2.875" OD, 1/2" Rod
Price	$2.72 / EA	$52.40 / EA	$2.42 / EA	$56.70 / EA	$3.53 / EA	$6.86 / EA
Availability	Available to order	Available to order	Available to order	Available to order	Available to order	Available to order
Finish	Pregalvanized	Plain	Electrogalvanized	Plain	Copper Electroplated	Electrogalvanized; Pregalvanized
Hole Size (Imperial) <Nom>	7/32 in	—	—	—	—	—
Length (imperial) <Nom>	—	12 in	—	12 in	—	—
Material	Steel	Steel	Steel; Acrylonitrile Butadiene Styrene	Steel	Cast Iron	Steel
Outer Diameter (Imperial) <Max>	—	—	1.050 in	—	—	—
Outer Diameter (Imperial) <Min>	—	—	3/8 in	—	—	—
Outer Diameter (Imperial) <Nom>	1.050 in	—	—	—	1/2 in	2 7/8 in
Pipe Size <Nom>	3/4 in	6 in	—	3 in	—	2 1/2 in
Rod Size (Imperial)	—	—	—	—	3/8 in	1/2 in
Standard	UL, cUL	None	None	None	None	FM, UL, cUL
Static Load (lb)	—	—	—	—	180 lb	1130 lb
Sub Brand	CADDY	CADDY	CADDY	CADDY	CADDY	CADDY
Type	Pipe Straps/Saddles for CPVC Pipe	Pipe Saddles	Plastic Pipe Clips	Pipe Saddles	Malleable Split Ring Hangers	Clevis Hangers
Width (Imperial) <Nom>	—	—	3/4 in	—	—	—
