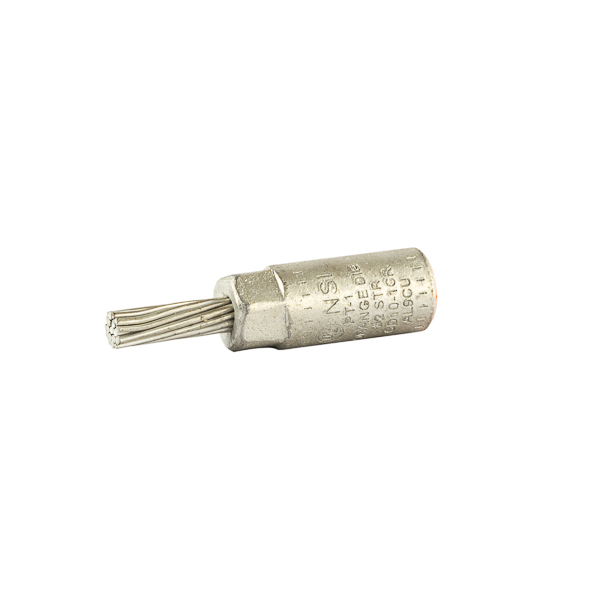

Stranded Bi-Metallic Pin Terminal 1 AWG Stranded Bi-Metallic Pin Terminals is designed to facilitate termination of aluminum conductors. Tin-plated stranded copper pin. Connector bores are coated with oxide inhibitor. Supplied with EPDM insulating cover. UL 486B listed. Rated 600 volts.

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

PT1

Manufacturer
Nsi Industries

$334.72 / EA

Available to order

Local stock: 0
Lead time: over 7 working days

Stranded Bi-Metallic Pin Terminal 1 AWG Stranded Bi-Metallic Pin Terminals is designed to facilitate termination of aluminum conductors. Tin-plated stranded copper pin. Connector bores are coated with oxide inhibitor. Supplied with EPDM insulating cover. UL 486B listed. Rated 600 volts.

Stranded Bi-Metallic Pin Terminal 1 AWG Stranded Bi-Metallic Pin Terminals is designed to facilitate termination of aluminum conductors. Tin-plated stranded copper pin. Connector bores are coated with oxide inhibitor. Supplied with EPDM insulating cover. UL 486B listed. Rated 600 volts.

150

UPC
662381033031
Color:
Tan
Material:
Aluminum/Copper
Number Of Poles:
1
Size:
L=2.53 - OD=.630 - ID=.350 - Pin Dia=.279
Type:
Bi-Metallic Pin
Voltage Rating:
600 V
Color:
Tan
Conductor Range:
# 1 AWG (STR)
Connection:
# 3 Pin
Finish:
Aluminum
Insulation:
Plastisol
Material:
Aluminum/Copper
Number Of Conductors:
1
Number Of Poles:
1
Size:
L=2.53 - OD=.630 - ID=.350 - Pin Dia=.279
Standard:
UL486
Sub Brand:
Pin Terminals
Temperature Rating:
90 C
Type:
Bi-Metallic Pin
Voltage Rating:
600 V
