PT6
SKU: PT6
MPN: PT6
Key specs
View all- Material
- Aluminum/Copper
- Number Of Poles
- 1
- Size
- L=1.25 - OD=.640 - ID=.236 - Pin Dia=.188
- Type
- Bi-Metallic Pin
- Voltage Rating
- 600 V
Description
Product overview

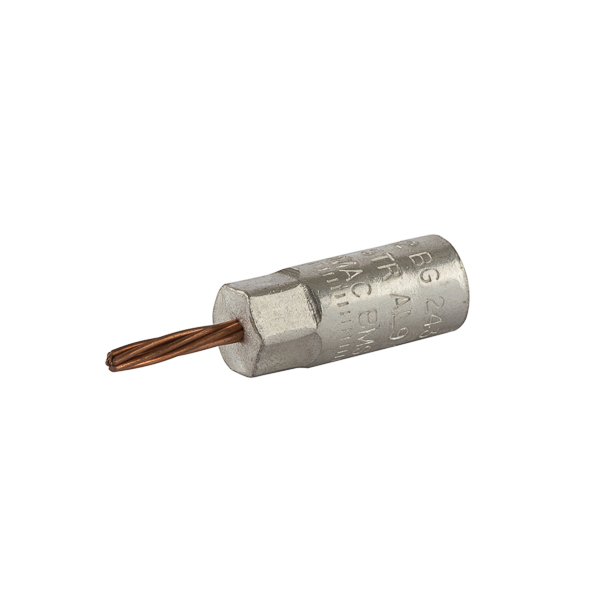

Stranded Bi-Metallic Pin Terminal 6 AWG Stranded Bi-Metallic Pin Terminals is designed to facilitate termination of aluminum conductors. Tin-plated stranded copper pin. Connector bores are coated with oxide inhibitor. Supplied with EPDM insulating cover. UL 486B listed. Rated 600 volts.
Stranded Bi-Metallic Pin Terminal 6 AWG Stranded Bi-Metallic Pin Terminals is designed to facilitate termination of aluminum conductors. Tin-plated stranded copper pin. Connector bores are coated with oxide inhibitor. Supplied with EPDM insulating cover. UL 486B listed. Rated 600 volts.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI PT6 Aluminum Pin Terminal Cu Pi
- Invoice description
- Aluminum Pin Terminal Cu Pin 6 AWG
Specifications
- UPC
- 662381033000
- Material
- Aluminum/Copper
- Number Of Poles
- 1
- Size
- L=1.25 - OD=.640 - ID=.236 - Pin Dia=.188
- Type
- Bi-Metallic Pin
- Voltage Rating
- 600 V
- Conductor Range
- # 6 AWG (STR)
- Connection
- # 8 Pin
- Environmental Conditions
- 90 C
- Finish
- Aluminum
- Insulation
- Plastisol
- Material
- Aluminum/Copper
- Number Of Conductors
- 1
- Number Of Poles
- 1
- Size
- L=1.25 - OD=.640 - ID=.236 - Pin Dia=.188
- Standard
- UL486
- Sub Brand
- Pin Terminals
- Temperature Rating
- 90 C
- Type
- Bi-Metallic Pin
- Voltage Rating
- 600 V
