Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$288.87 / EA
Local stock: 0
Lead time:
over 7 working days

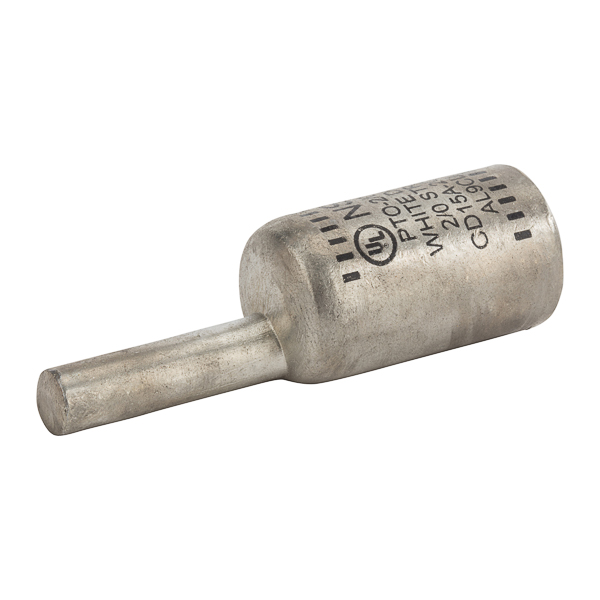

Offset Pin Terminal 2/0 AWG All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The pin is offset for use in tight spaces and for ease of installation in side-by-side terminations. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.
Offset Pin Terminal 2/0 AWG All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The pin is offset for use in tight spaces and for ease of installation in side-by-side terminations. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.
150
- UPC
- 662381033208
- Color:
- White
- Material:
- Aluminum
- Number Of Poles:
- 1
- Size:
- L=2.70 - OD=.850 - ID=.440 - Pin Dia=.330
- Type:
- Offset Pin
- Voltage Rating:
- 600 V
- Color:
- White
- Conductor Range:
- 2/0 AWG (STR)
- Connection:
- # 1 Pin
- Environmental Conditions:
- 90 C
- Finish:
- Tin Plated
- Insulation:
- Plastisol
- Material:
- Aluminum
- Number Of Conductors:
- 1
- Number Of Poles:
- 1
- Size:
- L=2.70 - OD=.850 - ID=.440 - Pin Dia=.330
- Standard:
- UL486
- Sub Brand:
- Pin Terminals
- Temperature Rating:
- 90 C
- Type:
- Offset Pin
- Voltage Rating:
- 600 V
Recently Viewed
-
PTO-2/0
NSI INDUSTRIES
Offset Pin Terminal 2/0 AWG All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The pin is offset for use i...
See more details -
211391
ADVANCE TRANSFORMER

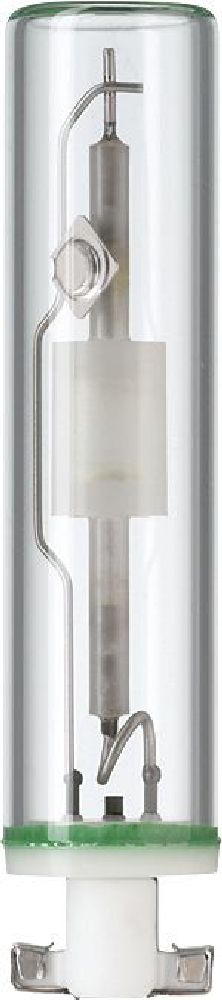

PHILIP LIGHTING, VOLTAGE RATING: 810 V, WATTAGE: 21 W, COLOR RENDERING INDEX: 85, BASE: GX24Q-3, LIFE AVERAGE RATED: 20,000 H, COLOR TEMP: 3,000 K, LI...
See more details -
2038EINS
KLEIN TOOLS, INC.

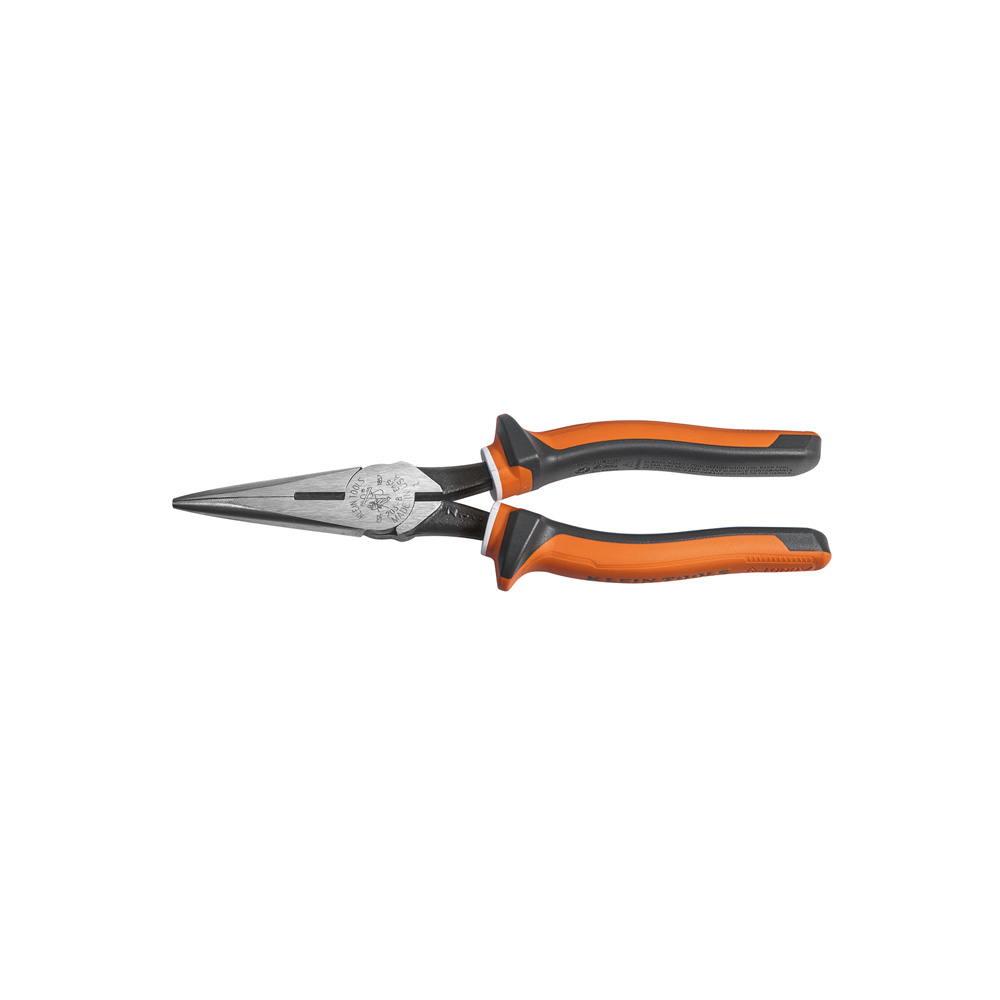

Long Nose Side Cutter Pliers, 8-In Slim Insulated, Insulated pliers are 1000V Rated for safety on the job and VDE Certified with unique three-part ins...
