Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$762.73 / EA
Local stock: 0
Lead time:
over 7 working days

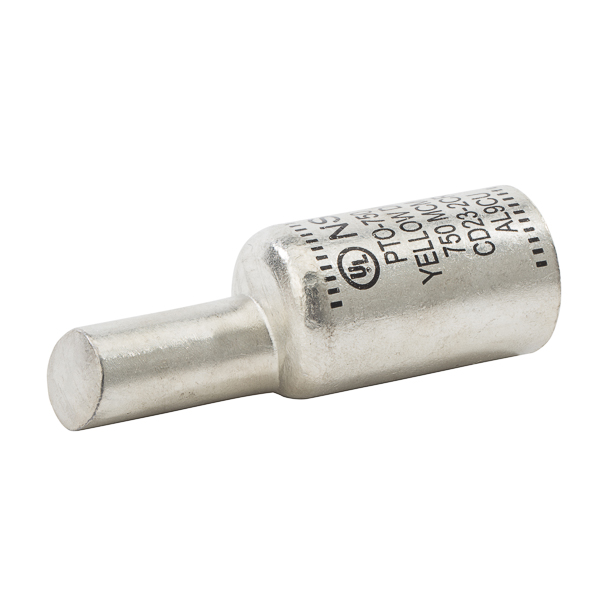

Offset Pin Terminal 750 MCM All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The pin is offset for use in tight spaces and for ease of installation in side-by-side terminations. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.
Offset Pin Terminal 750 MCM All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The pin is offset for use in tight spaces and for ease of installation in side-by-side terminations. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.
150
- UPC
- 662381033291
- Color:
- Yellow
- Material:
- Aluminum
- Number Of Poles:
- 1
- Size:
- L=4.19 - OD=1.46 - ID=1.03 - Pin Dia=.810
- Type:
- Offset Pin
- Voltage Rating:
- 600 V
- Color:
- Yellow
- Conductor Range:
- 750 MCM (STR)
- Connection:
- 500 Pin
- Environmental Conditions:
- 90 C
- Finish:
- Tin Plated
- Insulation:
- Plastisol
- Material:
- Aluminum
- Number Of Conductors:
- 1
- Number Of Poles:
- 1
- Size:
- L=4.19 - OD=1.46 - ID=1.03 - Pin Dia=.810
- Standard:
- UL486
- Sub Brand:
- Pin Terminals
- Temperature Rating:
- 90 C
- Type:
- Offset Pin
- Voltage Rating:
- 600 V
