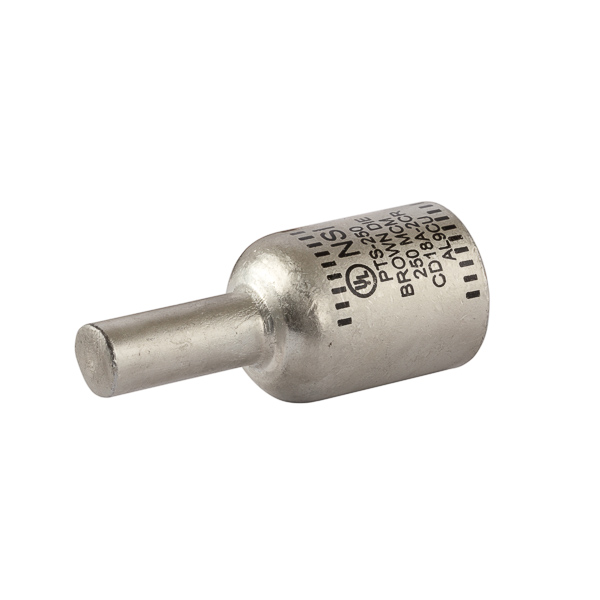

PTS250
SKU: PTS250
MPN: PTS250
Key specs
View all- Color
- Brown
- Material
- Aluminum
- Number Of Poles
- 1
- Size
- L=2.62 - OD=1.09 - ID=.594 - Pin Dia=.460
- Type
- Solid Pin
- Voltage Rating
- 600 V
Description
Product overview
Solid Pin Terminal for Copper and Aluminum Conductors 250 MCM All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.
Solid Pin Terminal for Copper and Aluminum Conductors 250 MCM All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI PTS250 Aluminum Pin Terminal Al
- Invoice description
- Aluminum Pin Terminal Al Pin 250 MCM
Specifications
- UPC
- 662381033482
- Color
- Brown
- Material
- Aluminum
- Number Of Poles
- 1
- Size
- L=2.62 - OD=1.09 - ID=.594 - Pin Dia=.460
- Type
- Solid Pin
- Voltage Rating
- 600 V
- Color
- Brown
- Conductor Range
- 250 MCM (STR)
- Connection
- 3/0 Pin
- Environmental Conditions
- 90 C
- Finish
- Tin Plated
- Insulation
- Plastisol
- Material
- Aluminum
- Number Of Conductors
- 1
- Number Of Poles
- 1
- Size
- L=2.62 - OD=1.09 - ID=.594 - Pin Dia=.460
- Standard
- UL486
- Sub Brand
- Pin Terminals
- Temperature Rating
- 90 C
- Type
- Solid Pin
- Voltage Rating
- 600 V
