$327.39 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

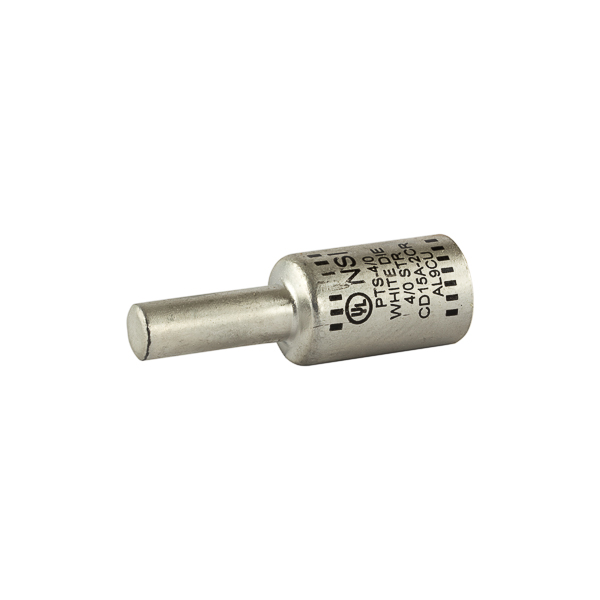

Solid Pin Terminal for Copper and Aluminum Conductors 4/0 AWG All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.
Solid Pin Terminal for Copper and Aluminum Conductors 4/0 AWG All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.
150
- UPC
- 662381033475
- Color:
- White
- Material:
- Aluminum
- Number Of Poles:
- 1
- Size:
- L=2.59 - OD=.850 - ID=.535 - Pin Dia=.420
- Type:
- Solid Pin
- Voltage Rating:
- 600 V
- Color:
- White
- Conductor Range:
- 4/0 AWG (STR)
- Connection:
- 2/0 Pin
- Environmental Conditions:
- 90 C
- Finish:
- Tin Plated
- Insulation:
- Plastisol
- Material:
- Aluminum
- Number Of Conductors:
- 1
- Number Of Poles:
- 1
- Size:
- L=2.59 - OD=.850 - ID=.535 - Pin Dia=.420
- Standard:
- UL486
- Sub Brand:
- Pin Terminals
- Temperature Rating:
- 90 C
- Type:
- Solid Pin
- Voltage Rating:
- 600 V
