QSGRJ-3P-WH

SKU: QSGRJ-3P-WH

MPN: QSGRJ-3P-WH

Key specs

View all
Number Of Poles
1
Size
4.69 in (119 mm) x 9.38 in (239 mm)
Type
Light/shade control unit, 3 zones, opaque cover, wireless capability
Voltage Rating
120, 220 to 240 VAC

Description

Product overview

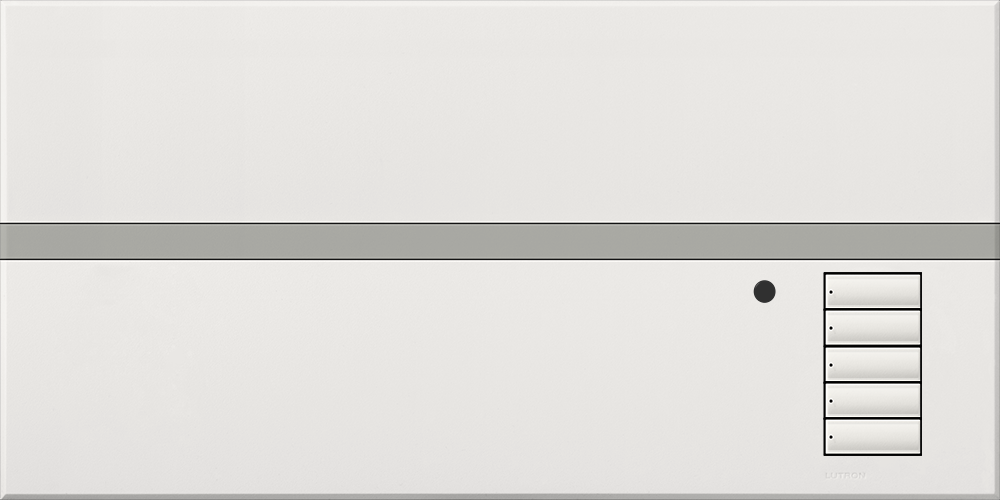

GRAFIK Eye QS Wireless Main Unit, 3-zone, 120-127V or 200-240V, opaque cover

GRAFIK Eye QS Wireless Main Unit, 3-zone, 120-127V or 200-240V, opaque cover

Manufacturer highlights

Additional manufacturer notes

Feed description
LUT QSGRJ-3P-WH QSG 434 MHZ 3 ZONE
Invoice description
QSG 434 MHZ 3 ZONE TRIAC NO SHADE WHITE
Manufacturer notes
3 zone base unit for GRAFIK Eye QS, with opaque cover. Controls up to six zones of light and will operate incandescent, LED/CFL, Tungsten halogen, electronic low-voltage, magnetic low-voltage, metal halide/high pressure sodium switched, neon/cold cathode, and Lutron Tu-Wire electronic fluorescent dimming ballast loads with a continuous Square Law dimming curve or on a full conduction non-dim basis.

Specifications

UPC
027557641425
UNSPSC
39122232
Country of Origin
US
Number Of Poles
1
Size
4.69 in (119 mm) x 9.38 in (239 mm)
Type
Light/shade control unit, 3 zones, opaque cover, wireless capability
Voltage Rating
120, 220 to 240 VAC
Actuator
Push-button
Contact Configuration
N-O
Contact Rating
120, 220 to 240 VAC
Enclosure
Plastic
Mounting
Surface
Number Of Poles
1
Operating Temperature
32 to 104 F (0 to 40 C) F
Size
4.69 in (119 mm) x 9.38 in (239 mm)
Standard
UL, CSA, FCC, IC, SCT, NOM, CEC (title24)
Sub Brand
GRAFIK Eye QS
Type
Light/shade control unit, 3 zones, opaque cover, wireless capability
Voltage Rating
120, 220 to 240 VAC

Rate this product

Do you have a question about QSGRJ-3P-WH?

Videos & documents

Documents

Brochure Url Warranty Url Brochure Warranty Spec Sheet

QSGRJ-3P-WH

$2,053.10 / EA
