$25.45 / EA
manufacturer discounts
learn about discounts
- $22.91 for $300.00+
- $21.82 for $500.00+
- $20.91 for $1,000.00+
In stock (0)
Lead time: over 7 days
may be longer on small orders

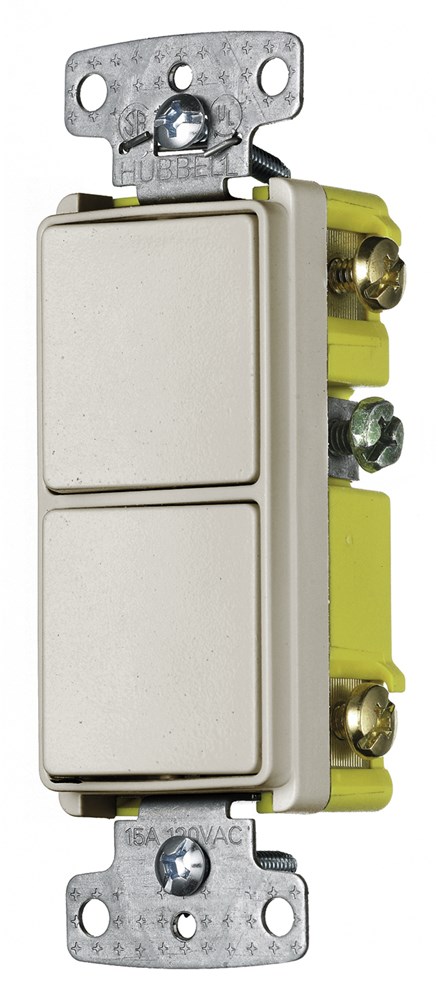

Hubbell Wiring Device Kellems, Switches and Lighting Controls,Combination Devices, Residential Grade, Decorator Series, 1) Single PoleRocker, 1) Three Way Rocker, 15A 120V AC, Side Wired, Light Almond
Hubbell Wiring Device Kellems, Switches and Lighting Controls,Combination Devices, Residential Grade, Decorator Series, 1) Single PoleRocker, 1) Three Way Rocker, 15A 120V AC, Side Wired, Light Almond
150
- UPC
- 883778119125
- UNSPSC
- 39122231
- Country of Origin
- CN
- Action:
- Snap Switch
- Amperage Rating:
- 15 A
- Number Of Poles:
- 1
- Size:
- Standard Size
- Type:
- Decorator Switch Combo Devices
- Voltage Rating:
- 120/277 AC V
- Wattage:
- 4,155 W
- Action:
- Snap Switch
- Actuator:
- Rocker
- Amperage Rating:
- 15 A
- Conduit Connection:
- None
- Connection:
- Side Wired
- Contact Configuration:
- Two Position
- Contact Rating:
- 15A
- Environmental Conditions:
- Indoor Dry unless protected by additional means
- Mounting:
- Mounting Screws
- Number Of Poles:
- 1
- Operating Cycles:
- 30k
- Operating Temperature:
- Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
- Size:
- Standard Size
- Standard:
- NEMA WD1 and WD5 and UL20
- Sub Brand:
- Trade Select
- Type:
- Decorator Switch Combo Devices
- Voltage Rating:
- 120/277 AC V
- Wattage:
- 4,155 W
49A0
$540.39 /ea
NEMA Accessory, For Open NEMA Contactors,
RCD303BK
$28.77 /ea
Hubbell Wiring Device Kellems, Switches and Lighting Controls,Combination Devices, Residential Grade, Decorator Series, 2) Three WayRockers, 15A 120V AC, Side Wired, Black
| Attributed Data | Included |
|---|---|
| Action | Snap Switch Yes |
| Actuator | Rocker Yes |
| Catalog Number | RCD303BK Yes |
| Conduit Connection | None Yes |
| Connection | Side Wired Yes |
| Contact Configuration | Two Position Yes |
| Contact Rating | 15A Yes |
| Environmental Conditions | Indoor Dry unless protected by additional means Yes |
| Item Type | Decorator Switch Combo Devices Yes |
| Material - Mounting Hardware | Mounting Screws Yes |
| Mounting | Mounting Screws Yes |
| OEM Brand Name | Hubbell Wiring Device-Kellems Yes |
| Operating Cycles | 30k Yes |
| Operating Temperature | Max Continuous- 60 Degrees C, Minimum- -20 Without Impact Yes |
| Product Name | RCD303BK Yes |
| Size | Standard Size Yes |
| Standard | NEMA WD1 and WD5 and UL20 Yes |
| Sub Brand | Trade Select Yes |
| Type | Decorator Switch Combo Devices Yes |
| UPC | 883778110306 Yes |
RCD303LA
$28.77 /ea
Hubbell Wiring Device Kellems, Switches and Lighting Controls,Combination Devices, Residential Grade, Decorator Series, 2) Three WayRockers, 15A 120V AC, Side Wired, Light Almond
| Attributed Data | Included |
|---|---|
| Action | Snap Switch Yes |
| Actuator | Rocker Yes |
| Catalog Number | RCD303LA Yes |
| Conduit Connection | None Yes |
| Connection | Side Wired Yes |
| Contact Configuration | Two Position Yes |
| Contact Rating | 15A Yes |
| Environmental Conditions | Indoor Dry unless protected by additional means Yes |
| Item Type | Decorator Switch Combo Devices Yes |
| Material - Mounting Hardware | Mounting Screws Yes |
| Mounting | Mounting Screws Yes |
| OEM Brand Name | Hubbell Wiring Device-Kellems Yes |
| Operating Cycles | 30k Yes |
| Operating Temperature | Max Continuous- 60 Degrees C, Minimum- -20 Without Impact Yes |
| Product Name | RCD303LA Yes |
| Size | Standard Size Yes |
| Standard | NEMA WD1 and WD5 and UL20 Yes |
| Sub Brand | Trade Select Yes |
| Type | Decorator Switch Combo Devices Yes |
| UPC | 883778119163 Yes |
| Product Image |
|
|
|
|---|---|---|---|
|
49A0
NEMA Accessory, For Open NEMA Contactors,
$540.39 / EA
|
RCD303BK
Hubbell Wiring Device Kellems, Switches and Lighting Controls,Combination Devices, Residential Grade, Decorator Series, 2) Three WayRockers, 15A 120V AC, Side Wired, Black
$28.77 / EA
|
RCD303LA
Hubbell Wiring Device Kellems, Switches and Lighting Controls,Combination Devices, Residential Grade, Decorator Series, 2) Three WayRockers, 15A 120V AC, Side Wired, Light Almond
$28.77 / EA
|
|
| Attributed Data | |||
| Action | Snap Switch Snap Switch | ||
| Actuator | Rocker Rocker | ||
| Amperage Rating | 15 A 15 A | ||
| Brand ID | WIRING DEVICE-KELLEMS WIRING DEVICE-KELLEMS | ||
| Carton Quantity | 10 10 | ||
| Catalog Number | RCD303BK RCD303BK | RCD303LA RCD303LA | |
| Color | Black Black | Light Almond Light Almond | |
| Conduit Connection | None None | ||
| Connection | Side Wired Side Wired | Terminal Screws Terminal Screws | |
| Contact Configuration | Two Position Two Position | ||
| Contact Rating | 15A 15A | ||
| Current / Amperage Rating | 15 A 15 A | ||
| Current Rating | 15 A 15 A | ||
| Description - Long | Switches and Lighting Controls, Combination Devices, Residential Grade, Decorator Series, 2) Three Way Rockers, 15A 120V AC, Side Wired, Black Switches and Lighting Controls, Combination Devices, Residential Grade, Decorator Series, 2) Three Way Rockers, 15A 120V AC, Side Wired, Black | ||
| Description - Short | Switches and Lighting Controls, Combination Devices, Residential Grade, Decorator Series, 2) Three Way Rockers, 15A 120V AC, Side Wired, Black Switches and Lighting Controls, Combination Devices, Residential Grade, Decorator Series, 2) Three Way Rockers, 15A 120V AC, Side Wired, Black | Switches and Lighting Controls, Combination Devices, Residential Grade, Decorator Series, 2) Three Way Rockers, 15A 120V AC, Side Wired, White Switches and Lighting Controls, Combination Devices, Residential Grade, Decorator Series, 2) Three Way Rockers, 15A 120V AC, Side Wired, White | |
| EU RoHS Indicator | Yes Yes | ||
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means Indoor Dry Unless Protected By Additional Means | Indoor Dry unless protected by additional means Indoor Dry unless protected by additional means | |
| FEATURES - Bullets | Smooth, quiet rocker;Low profile, less than 1 inch deep;Self-grounding feature is standard Smooth, quiet rocker;Low profile, less than 1 inch deep;Self-grounding feature is standard | ||
| FV_Current / Amperage Rating | 15 A 15 A | ||
| FV_Voltage Rating Description | 120/277V AC kV 120/277V AC kV | ||
| Item Type | Decorator Switch Combo Devices Decorator Switch Combo Devices | ||
| Material - Mounting Hardware | Mounting Screws Mounting Screws | ||
| Mounting | Mounting Screws Mounting Screws | ||
| Number Of Poles | 1 1 | ||
| OEM Brand Name | Hubbell Wiring Device-Kellems Hubbell Wiring Device-Kellems | ||
| Operating Cycles | 30k 30k | ||
| Operating Temperature | Max Continuous- 60 Degrees C, Minimum- -20 Without Impact Max Continuous- 60 Degrees C, Minimum- -20 Without Impact | ||
| Performance | Electrical - Dielectric voltage - Withstands 1,500V AC minimum for 1 minute;Electrical - Endurance - 30,000 cycles minimum;Electrical - Max. working voltage - 120V;Electrical - Overload - 1.5 times rating;Environmental - Flammability - UL V0;Environmental - Operating temperatures - Maximum continuous 60°C;minimum -20°C (without impact);Mechanical - Terminal accommodation - Back and side wire: #14 AWG min. - #12 AWG max. solid and stranded copper wire only;push wire: #14 AWG solid copper wire only Electrical - Dielectric voltage - Withstands 1,500V AC minimum for 1 minute;Electrical - Endurance - 30,000 cycles minimum;Electrical - Max. working voltage - 120V;Electrical - Overload - 1.5 times rating;Environmental - Flammability - UL V0;Environmental - Operating temperatures - Maximum continuous 60°C;minimum -20°C (without impact);Mechanical - Terminal accommodation - Back and side wire: #14 AWG min. - #12 AWG max. solid and stranded copper wire only;push wire: #14 AWG solid copper wire only | ||
| Product Name | RCD303BK RCD303BK | RCD303LA RCD303LA | |
| Size | Standard Size Standard Size | Standard Sized Product Standard Sized Product | |
| Standard | CSA Certified;UL Listed E3896 CSA Certified;UL Listed E3896 | NEMA WD1 and WD5 and UL20 NEMA WD1 and WD5 and UL20 | |
| Sub Brand | Combo Devices Combo Devices | Trade Select Trade Select | |
| Type | 2) Switches 2) Switches | Decorator Switch Combo Devices Decorator Switch Combo Devices | |
| UPC | 883778110306 883778110306 | 883778119163 883778119163 | |
| Voltage Rating | 120/277 AC V 120/277 AC V | 120/277V AC kV V 120/277V AC kV V | |
| Voltage Rating Description | 120/277V AC kV 120/277V AC kV | ||
| Wattage | 4,155 W 4,155 W | ||
| Add a product to the cart | Show more details | Show more details | Show more details |
