RIGD0100S4
SKU: RIGD0100S4
MPN: RIGD0100S4
Key specs
View all- Material
- Stainless Steel 304 (EN 1.4301)
- Type
- Pipe/Tube to Strut
Description
Product overview

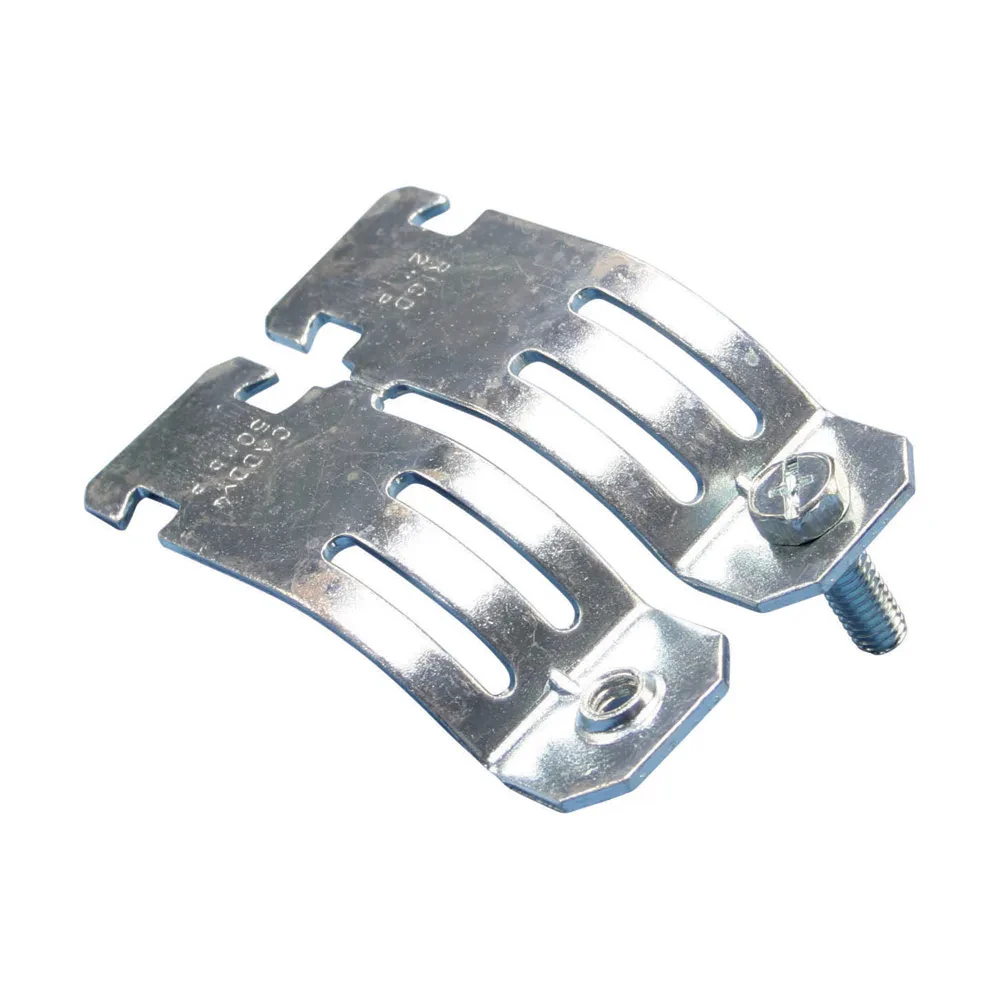

RIGD Single Piece Strut Clamp for Pipe/Rigid Conduit, S304, 1" Pipe, 1.315" OD
RIGD Single Piece Strut Clamp for Pipe/Rigid Conduit, S304, 1" Pipe, 1.315" OD
Manufacturer highlights
- One piece break apart strut clamp (1/2" thru 4" pipe size)
- Includes thread impression and captured screw (1/2" thru 4" pipe size)
- Fits into open side of strut channel
- Conforms with Manufacturers Standardization Society (MSS) SP-58 (Type 59)
Additional manufacturer notes
- Short description
- CLAMP,STRUT,1 RIGID PIPE,304SS
- Short name
- EFS
- Feed description
- NVENT EFS RIGD0100S4 CLAMP,STRUT,1
Specifications
- UPC
- 782856348009
- UNSPSC
- 40141725
- Country of Origin
- US
- Material
- Stainless Steel 304 (EN 1.4301)
- Type
- Pipe/Tube to Strut
- Material
- Stainless Steel 304 (EN 1.4301)
- Outer Diameter (Imperial) <Nom>
- 1.315 in
- Pipe Size <Nom>
- 1 in
- Standard
- UL, cUL
- Static Load (lb)
- 600 lb
- Sub Brand
- CADDY
- Type
- Pipe/Tube to Strut
- Width (Imperial) <Nom>
- 1 1/4 in
- Manufacturer keywords
- break apart strut clamp, one piece clamp, strut clamp
