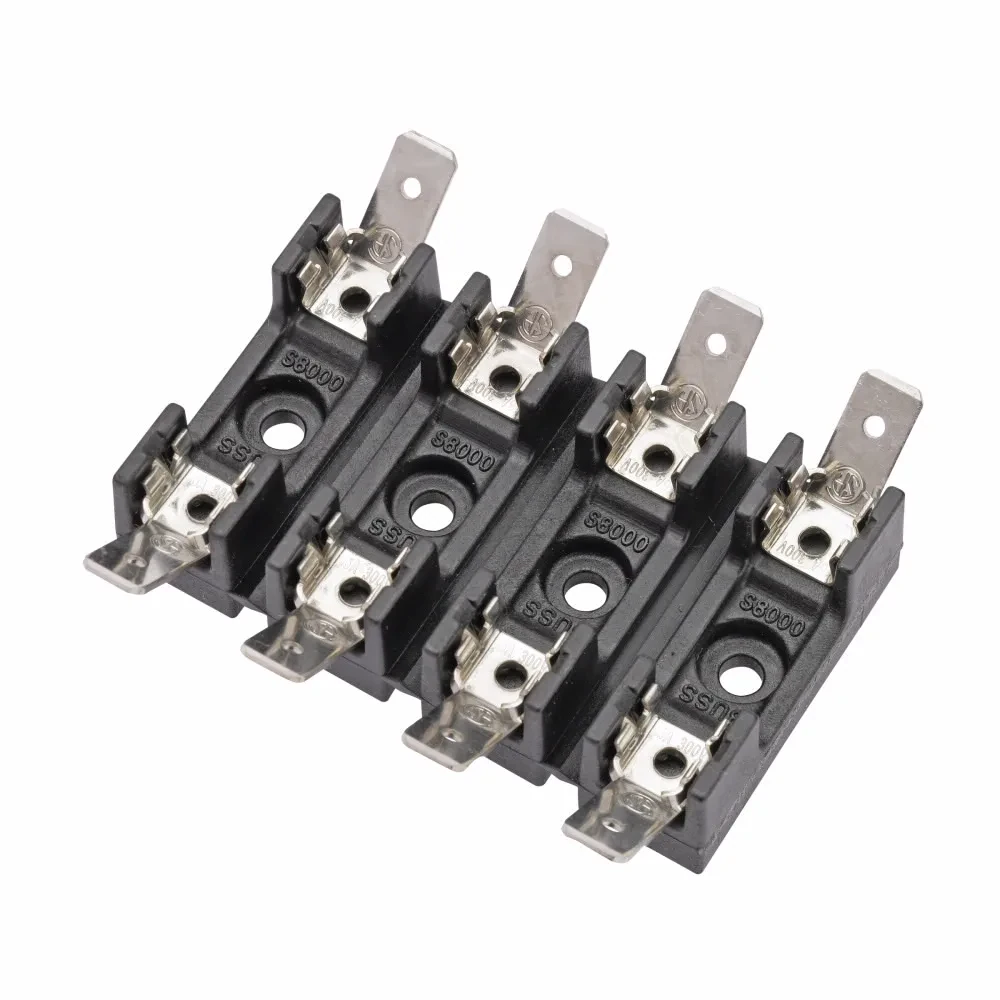

S-8202-4
SKU: S-8202-4-EDF
MPN: S-8202-4
Key specs
View all- Amperage Rating
- 16/20 A
- Material
- Bronze/Tin/Thermoplastic
- Size
- 2.00 In Length X 0.50 In Width X 0.56 In Height
- Voltage Rating
- 300 VAC//VDC
Description
Product overview
20A 300V 1/4" x 1-1/4" 4 Pole Fuseblock, 40 Degree 1/4" Quick Connect
20A 300V 1/4" x 1-1/4" 4 Pole Fuseblock, 40 Degree 1/4" Quick Connect
Manufacturer highlights
Additional manufacturer notes
- Short name
- BUSS
- Feed description
- BUSS S-8202-4 300 VOLT 20 AMP GLASS
- Invoice description
- 300 VOLT 20 AMP GLASS FUSE BLOCK-4 POLE
Specifications
- UPC
- 051712117623
- UNSPSC
- 39121624
- Country of Origin
- US
- Amperage Rating
- 16/20 A
- Material
- Bronze/Tin/Thermoplastic
- Size
- 2.00 In Length X 0.50 In Width X 0.56 In Height
- Voltage Rating
- 300 VAC//VDC
- Amperage Rating
- 16/20 A
- Connection
- 1/4 In Quick Connect
- Material
- Bronze/Tin/Thermoplastic
- Mounting
- Bolt-In
- Operating Temperature
- 130 Deg C
- Size
- 2.00 In Length X 0.50 In Width X 0.56 In Height
- Standard
- UL, CSA, CE
- Voltage Rating
- 300 VAC//VDC
