$2.03 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

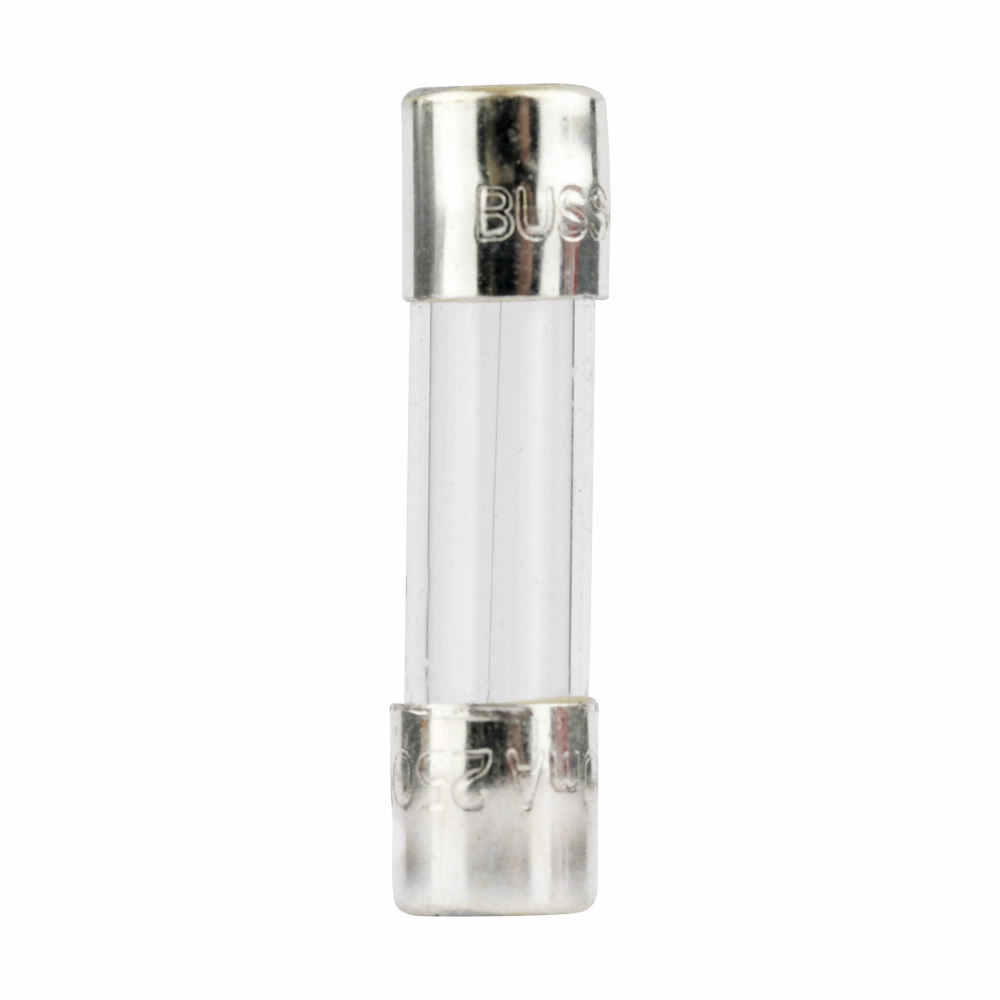

4A 250V 5mm x 20mm RoHS Compliant Glass, Time Delay Fuse
4A 250V 5mm x 20mm RoHS Compliant Glass, Time Delay Fuse
150
- UPC
- 051712639774
- UNSPSC
- 39121607
- Country of Origin
- CN
- Amperage Rating:
- 4 A
- Size:
- 5.20 mm Diameter X 20.00 mm Height
- Type:
- Electronic, Time Delay
- Voltage Rating:
- 250 VAC
- Amperage Rating:
- 4 A
- Connection:
- Ferrule End X Ferrule End
- Size:
- 5.20 mm Diameter X 20.00 mm Height
- Standard:
- UL (CANADA AND US), CSA, IMQ, VDE, BSI, SEMKO, UR, CCC, PSE/JET
- Type:
- Electronic, Time Delay
- Voltage Rating:
- 250 VAC
S500-5-R
$1.62 /ea
5A 250V 5mm x 20mm RoHS Compliant Glass, Fast Acting Fuse
| Attributed Data | Included |
|---|---|
| Connection | Ferrule End X Ferrule End Yes |
| Size | 5.20 mm Diameter X 20.00 mm Height Yes |
| Standard | UL (CANADA AND US), CSA, SEMKO, VDE, BSI, IMQ, CCC Yes |
| Type | Electronic, Fast Acting Yes |
AGA-1
$1.45 /ea
1A 125V 1AG - 1/4" x 5/8" Glass, Fast Acting Fuse
| Attributed Data | Included |
|---|---|
| Connection | Ferrule End X Ferrule End Yes |
| Size | 1/4 In Diameter X 5/8 In Length Yes |
| Standard | UL 248-14, CE Yes |
| Type | Electronic, Fast Acting Yes |
AGA-2
$1.45 /ea
2A 125V 1AG - 1/4" x 5/8" Glass, Fast Acting Fuse
| Attributed Data | Included |
|---|---|
| Connection | Ferrule End X Ferrule End Yes |
| Size | 1/4 In Diameter X 5/8 In Length Yes |
| Standard | UL 248-14, CE Yes |
| Type | Electronic, Fast Acting Yes |
| Product Image |
|
|
|
|---|---|---|---|
|
S500-5-R
5A 250V 5mm x 20mm RoHS Compliant Glass, Fast Acting Fuse
$1.62 / EA
|
AGA-1
1A 125V 1AG - 1/4" x 5/8" Glass, Fast Acting Fuse
$1.45 / EA
|
AGA-2
2A 125V 1AG - 1/4" x 5/8" Glass, Fast Acting Fuse
$1.45 / EA
|
|
| Attributed Data | |||
| Amperage Rating | 1 A 1 A | 2 A 2 A | 5 A 5 A |
| Connection | Ferrule End X Ferrule End Ferrule End X Ferrule End | ||
| Frequency Rating | 50 Hz 50 Hz | ||
| Response Time | 14.4k/3.6k/120 s 14.4k/3.6k/120 s | ||
| Size | 1/4 In Diameter X 5/8 In Length 1/4 In Diameter X 5/8 In Length | 5.20 mm Diameter X 20.00 mm Height 5.20 mm Diameter X 20.00 mm Height | |
| Standard | UL (CANADA AND US), CSA, SEMKO, VDE, BSI, IMQ, CCC UL (CANADA AND US), CSA, SEMKO, VDE, BSI, IMQ, CCC | UL 248-14, CE UL 248-14, CE | |
| Type | Electronic, Fast Acting Electronic, Fast Acting | ||
| Type Of Indicators | Non-Indicating Non-Indicating | ||
| Voltage Rating | 125 VAC 125 VAC | 250 VAC 250 VAC | |
| Add a product to the cart | Show more details | Show more details | Show more details |
