$148.28 / EA
Local stock: 0
Lead time:
over 7 working days

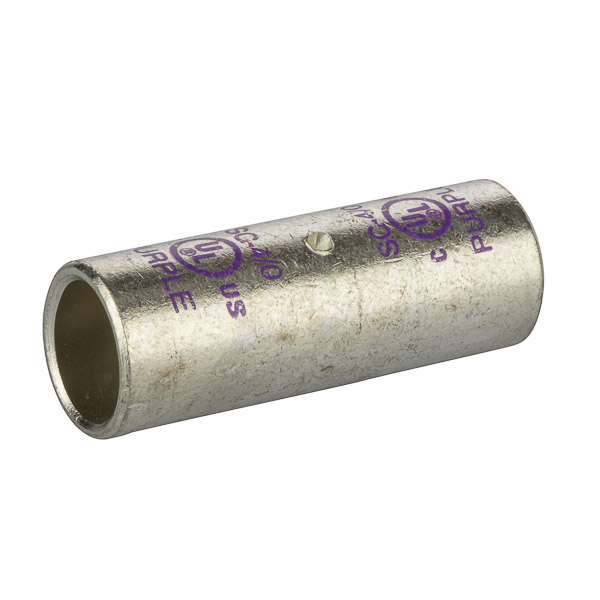

StandardBarrel TinnedCopperSplice4/0 AWG Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
StandardBarrel TinnedCopperSplice4/0 AWG Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
150
- UPC
- 662381037091
- Color:
- Purple
- Material:
- Copper
- Number Of Poles:
- 1
- Size:
- L=1.90 - OD=.690 - ID=.550
- Type:
- Short Barrel - CU Splice
- Voltage Rating:
- 600 V
- Color:
- Purple
- Conductor Range:
- 4/0 AWG (STR)
- Environmental Conditions:
- 90 C
- Finish:
- Tin Plated
- Material:
- Copper
- Number Of Conductors:
- 2
- Number Of Poles:
- 1
- Size:
- L=1.90 - OD=.690 - ID=.550
- Standard:
- UL486
- Sub Brand:
- Copper Compression
- Temperature Rating:
- 90 C
- Type:
- Short Barrel - CU Splice
- Voltage Rating:
- 600 V
