SC-500
SKU: SC-500
MPN: SC-500
Key specs
View all- Color
- Brown
- Material
- Copper
- Number Of Poles
- 1
- Size
- L=2.50 - OD=1.06 - ID=.830
- Type
- Short Barrel - CU Splice
- Voltage Rating
- 600 V
Description
Product overview

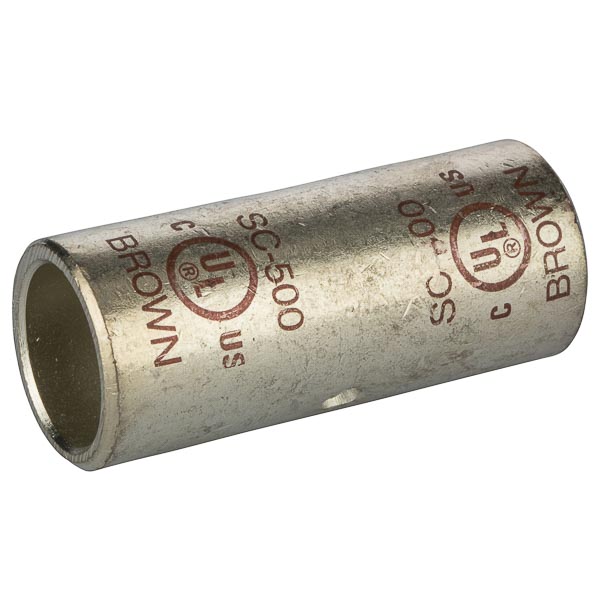

StandardBarrel TinnedCopperSplice500MCM Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
StandardBarrel TinnedCopperSplice500MCM Standard Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI SC-500 CI CMP Splice Short 500
- Invoice description
- CI CMP Splice Short 500 MCM
Specifications
- UPC
- 662381037145
- Color
- Brown
- Material
- Copper
- Number Of Poles
- 1
- Size
- L=2.50 - OD=1.06 - ID=.830
- Type
- Short Barrel - CU Splice
- Voltage Rating
- 600 V
- Color
- Brown
- Conductor Range
- 500 MCM (STR)
- Environmental Conditions
- 90 C
- Finish
- Tin Plated
- Material
- Copper
- Number Of Conductors
- 2
- Number Of Poles
- 1
- Size
- L=2.50 - OD=1.06 - ID=.830
- Standard
- UL486
- Sub Brand
- Copper Compression
- Temperature Rating
- 90 C
- Type
- Short Barrel - CU Splice
- Voltage Rating
- 600 V
